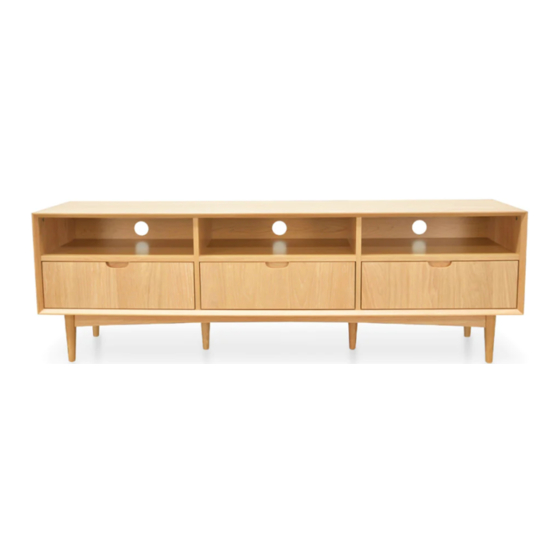

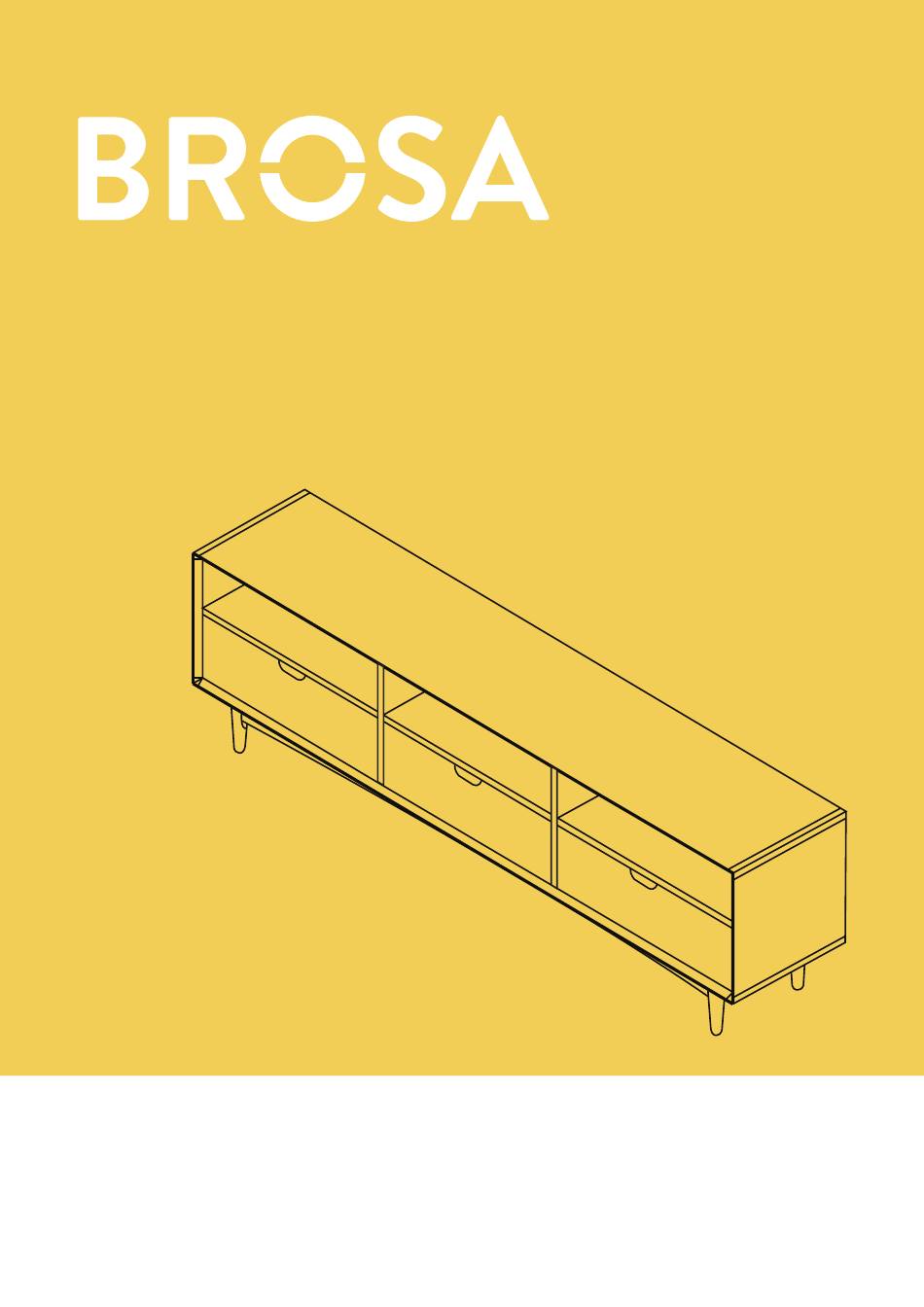

- Page 1 ASSEMBLY GUIDE Mia Large Entertainment Unit...
- Page 2 Components Upon unpacking your storage from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new storage. Central Leg x 2 Body x 1 Corner Leg x 4 Hardware A x 4 B x 4...
- Page 3 Insert the cross dowel into the top hole of the Step 1 corner leg so that the side marker faces the bolt hole. Repeat for all four corner legs. A x 4 Screw the threaded bolt into the corner hole. Step 2 Repeat for all four legs.
- Page 4 Place the body on a at surface on it’s back. Insert a Step 3 leg construction formed in previous steps into a corner opening. Fit a washer (C), a lock washer then a hex nut to the threaded bold and tighten with the spanner (F).
- Page 5 Screw central legs onto metal plates. Continue to Step 4 tighten until they are securely fastened. With help of the assistant, carefully stand the unit uptight.
- Page 6 Fix a mounting plate (aa) to the back of the storage Step 5 using at head screws (cc). By using appropriate fastener based upon wall com- position, x another mounting plate (aa) to the wall. Connect two plates with the nylon srap (bb). Tighten the strap so that the table is xed in the place.
- Page 7 Enjoy your new storage! Step 6...
