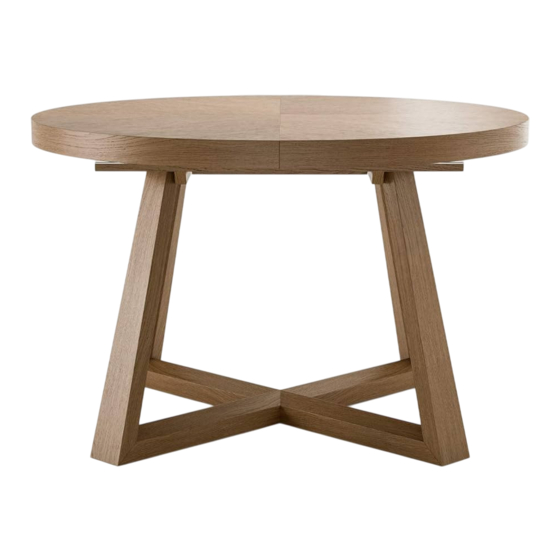

- Page 1 ASSEMBLY GUIDE Parc Extendable Dining Table...
- Page 2 Components Upon unpacking your extendable dining table from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new extendable dining table. Table top x 1 Leg x 2 Hardware A x 6 B x 6...
- Page 3 Place a small amount of glue onto the dowel Step 1 on one half and insert it into the middle hole of a as shown in the diagram. Insert the threaded rods into each of the outer holes and apply some more glue on the other half of the dowel (F).
- Page 4 Align the leg structure formed in Step 1 to the under- Step 2 side of the table top so that all of the screw holes overlap. Fit a washer to a bolt and screw into each hole and use the Allen key to tighten all in place.
- Page 5 Gently lift the table and place upright on a level Step 3 surface. Under the table unlock the slides on both sides by lifting the latch and release both of the locks by lifting the latch and unhooking the loop. Warning: before moving the table (anytime), ensure that all of the locks and slides are locked.
- Page 6 Push either side of the two halves and rmly press Step 5 the two halves and the leaf together. Under the table lock the slides on both sides by pressing down the latch and relock all of the locks by hooking the loop and pulling down the latch.
