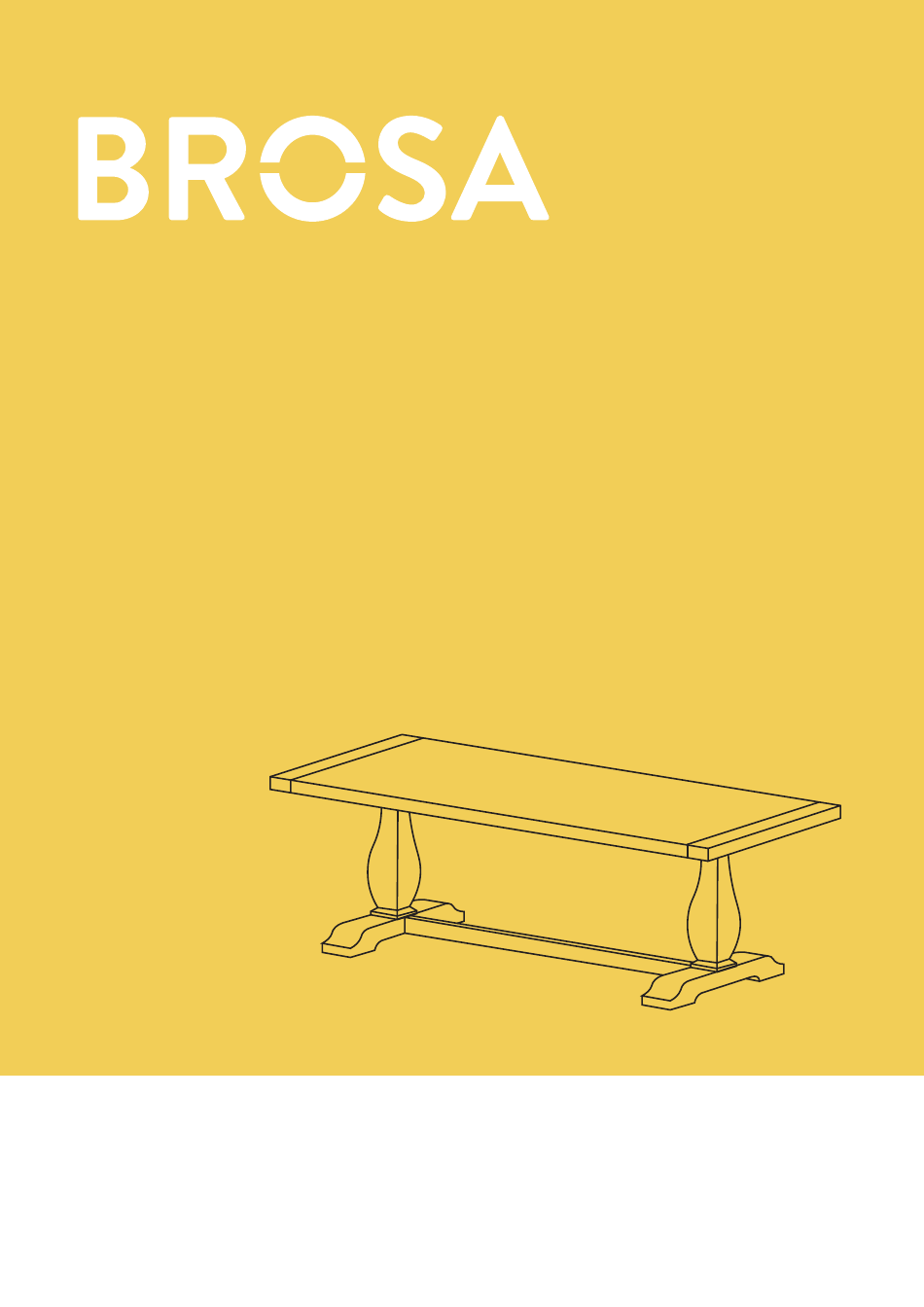

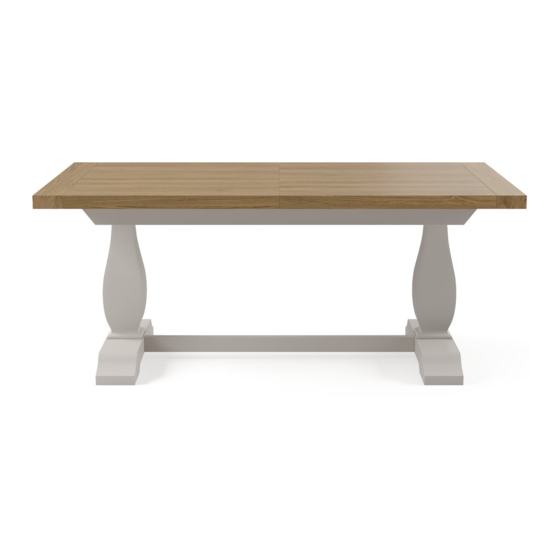

- Page 1 ASSEMBLY GUIDE Baker Dining Table...
- Page 2 Components Before you get started, check you have all of the pieces below. If anything’s missing, please visit www.brosa.com.au/pages/product-return-and-parts-request and we’ll sort it out right away. Middle Rail x 1 Leg x 2 Leg Base x 2 Table Top x 1...
- Page 3 Insert two short dowels into the diagonal holes at Step 1 the bottom of the leg (2), and two short dowels into the diagonal holes on the mounting plate (3). Repeat this for the second leg and mounting plate. L x 8 Align a leg with a leg base and mounting plate...
- Page 4 Screw a steel dowel into the side hole on the Step 3 leg base. Ensure that the holes are facing the bottom as shown in the diagram. Repeat this for the other leg. Insert long dowels into the holes on each end of the middle rail (5).
- Page 5 Align one of the formed leg structures with the Step 4 underside of the table top so that the holes overlap. Secure them with M6 short bolts using the M4 Allen key (F). D x 8 F x 1...
- Page 6 Attach the middle rail to the leg that was xed Step 5 in the previous step. Make sure the holes on the rail are facing the bottom as shown in below diagram. Attach the second leg to the rail and make sure that the holes on the mounting plate are aligned with the holes on the table top.
- Page 7 Secure the middle rail with grub screws using the Step 6 M5 Allen key (E). C x 2 E x 1...
- Page 8 Place the table upright on a level surface. Step 7 Enjoy your new table!
