Machine M
M
ODEL

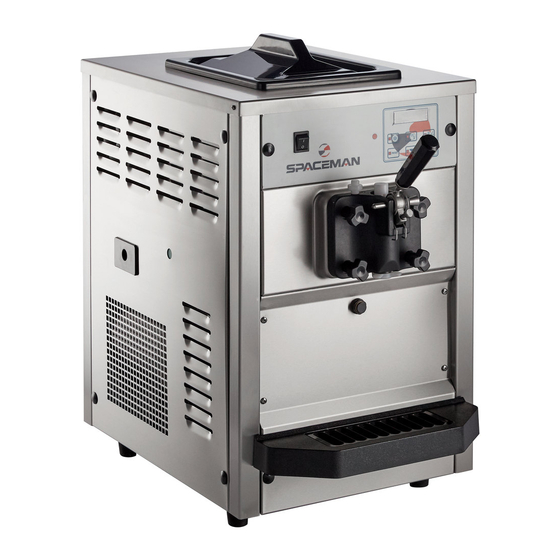

Soft Serve - Countertop - One Flavor
Spaceman USA, LLC
226 Commerce Street
Suite B
Broomfield, CO 80020
www.spacemanusa.com
www.spacemanusa.com
ANUAL
SM-6220
Sales and Product Information
Monday – Friday
8 AM – 5 PM Mountain
Toll-Free: +1 (888) 610-5520
Local:
sales@spacemanusa.com
info@spacemanusa.com
+1 (720) 328-1020
Email: service@spacemanusa.com
Email: info@spacemanusa.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spaceman SM-6220
Summary of Contents for Spaceman SM-6220
- Page 1 Machine M ANUAL SM-6220 ODEL Soft Serve - Countertop - One Flavor Customer Service Spaceman USA, LLC Sales and Product Information Sunday – Saturday 226 Commerce Street Monday – Friday 8 AM – 5 PM Mountain Suite B 8 AM – 5 PM Mountain...
-
Page 2: Learn About The Manual
Introduction Welcome to your machine: Welcome to your Spaceman USA Model 6220 soft serve machine, engineered and designed to provide dependable operation and a consistent, quality product: One-flavor countertop soft serve machine with portion control Digital control system for automatic regulation and maximum customization ... -
Page 3: Table Of Contents
Table of Contents What do you want to do? Learn about the manual ………………………………………………………………………………………………………. 1 Quickly refresh your knowledge on basic machine operation and parts ……………………………….. 3 Ensure installation requirements …………………………………………………………………………………………. 5 Unpack machine ………………………………………………………………………………………………………………….. 6 Perform routine maintenance ……………………………………………………………………………………………… 7 Clean ……………………………………………………………………………………………………………………………. -
Page 4: Quickly Refresh Your Knowledge On Basic Machine Operation And Parts
Quick Operation Refresh WARNING: The Quick Operation Refresh is for experienced 6220 operators and for reference ONLY. Detailed start-up instructions MUST be followed to ensure proper installation, cleaning, and operation of the machine. Failure to do so may result in severe damage or injury. Installation and Setup Read and understand ALL Place machine in appropriate food... - Page 5 Quick Operation Refresh Machine Parts Dispensing Door Assembly (1), with included parts: Star Cap (1) Beater Rod (1) Gasket (1) Beater Guide (1) Hand Screws Draw Valve (1), Prime Plug (1), with Draw Handle (1), with Retention Pin (1), O-Rings (2) with O-Rings (2) Adjusting Screw (1) with Nut (1)
-
Page 6: Ensure Installation Requirements
Installation Requirements Refrigerant requirements Electrical requirements Spaceman USA requires that only the specified In the United States, it is required that this machine refrigerant be used in your machine. Alternative be installed in compliance with the National Electrical refrigerants may cause damage to the cooling... -
Page 7: Unpack Machine
6. Place the machine on top of the stand, 3. Inspect for damage immediately upon unpacking. countertop, or table. and call Spaceman USA Technical Service if you discover any damaged or missing parts. 7. Place the machine in its final location according to the Installation Requirements 4. -
Page 8: Perform Routine Maintenance
** Based on cleanliness of location and proximity to powder-based machines For optimal machine performance and many years of efficiency and reliability from your machine, Spaceman USA recommends cleaning and sanitizing the machine and its parts daily. The machine comes equipped... -
Page 9: Clean
Cleaning: 1. Drain Product NOTES: To expedite draining, turn off machine 30 minutes prior to soften product. To expedite process, keep a bucket nearby to temporarily store removed parts. CAUTION: Never use warm water when rinsing the machine to prevent damage. 1. -
Page 10: Disassemble Parts
Remove O-rings (2) from draw valve using O-ring removal tool i. Rotate star cap so that tab is accessible; snap off star cap NOTE: Spaceman offers a specialized drive shaft removal tool. 3. Disassemble beater assembly and drive shaft a. Remove beater assembly from cylinder 4. -
Page 11: Wash Parts
Cleaning: 3. Wash All Parts CAUTION: Never wash parts in a dishwasher. Always hand-wash components with nontoxic, food-safe cleaners. 1. Verify power switch is in the OFF position 2. Use the large brush and cool water to thoroughly clean inside the cylinder; be sure to scrub the back of the cylinder and verify the cylinder is free of ALL product 3. -
Page 12: Assemble Parts
Place drive shaft gasket on drive shaft OFF position b. Seal gasket open space with Spaceman lubricant, extending onto drive shaft and avoiding the top square part c. Insert drive shaft into rear shell bearing at the back of the cylinder, and... - Page 13 4. Install dispensing door a. Place O-rings (2) on draw valve; place O-rings (2) on prime plug; coat all ring areas with Spaceman lubricant b. Push prime plug into hole on top of dispensing door c. Insert draw valve into dispensing door, O-rings-first d.
-
Page 14: Sanitize
Sanitiza- Sanitization IMPORTANT: After sanitizing the machine, DO NOT rinse or touch areas that have been sanitized. Product must be added immediately. If new product will not be added immediately, rinse machine with clean water and loosen door hand-screws to allow cylinder to air-dry. Sanitize machine before using again. - Page 15 www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...
-
Page 16: Manage Frozen Product
Frozen Product Operation Add product to machine NOTE: The mix-low lights illuminate when a hopper is low on product mix and automatically de-illuminate when machine is filled. 1. Verify machine has been recently sanitized (within 1 hour); if machine has not been recently sanitized, verify door hand-screws are tight, and perform sanitizing steps (Page 13) -
Page 17: Freeze Product
Frozen Product Operation Freeze product 1. Verify cylinder is full of mixed product and primed 2. Press FREEZE button 3. The motor will begin to agitate the product, and the cooling system will begin to freeze the product 4. Freezing product takes approximately 10 minutes 5. -
Page 18: Use Standby Mode For Breaks In Machine Use
Frozen Product Operation Standby Mode Adjust product consistency IMPORTANT: When the machine will NOT be IMPORTANT: Make only small adjustments to utilized for several hours, place it in STANDBY viscosity setting; allow at least 10 to 15 minutes mode to conserve electricity and reduce product between adjustments to evaluate product loss. -
Page 19: Change Product Temperature In Hopper
Press FREEZE to return to freezing operation. Adjust advanced settings There are several advanced settings that can be configured from the machine displays. Call Spaceman Technical Support to adjust advanced settings. www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com... -
Page 20: Troubleshoot Problems
Remedy 2. Adjust hopper temperature warmer (Page 18) 1. Ensure hopper is at least half full 3. Call Spaceman Technical Support 2. Follow manufacturer instructions for mixing product; ensure correct mix ratios Problem: Hopper is freezing 3. - Page 21 2. Replace wearable parts (including scraper blades) at least once every 3 months Probable Cause 3. Contact Spaceman USA Technical Support 1. Cylinders are experiencing freeze-up (usually due 4. Inspect parts carefully for damage, ensure to viscosity being set too high for selected proper assembly;...
-
Page 22: View Machine Specifications, Including Parts And Wiring Diagrams
Machine Specifications www.spacemanusa.com www.spacemanusa.com Phone: (720) 328 - 1020 Phone: (720) 328-1020 Email: service@spacemanusa.com Email: service@spacemanusa.com... - Page 23 Parts Dia- Specs—External Parts Item Part # Description Item Part # Description 3.4.04.01.002 Drip Tray 3.4.03.01.001 Hopper Lid 3.6.39.004 Drip Tray Mount 3.1.03.04.009 Low Mix Sensor 3.4.07.01.001 Bolt Cover 2.3.4.18.001 Panel - Left 3.4.04.02.003 Internal Drip Tray 3.3.05.03.001 Leg 2.1.1.01.0023 Hopper & Cylinder 2.3.4.20.001 Panel - Right 2.3.4.07.001...
- Page 24 Specs—Operating Parts Dispensing Door and Beater 12 13 9 10 Item Part # Description Item Part # Description 2.1.3.27.0001 2.1.3.01.0002 Draw Valve Retention Pin 2.1.3.02.0015 2.1.3.27.0025 Nut - Retention Pin Prime Plug 3.4.01.03.001 3.4.08.01.013 O-Ring - Plug Beater Guide 3.4.08.01.006 3.4.08.01.029 Door Gasket O-Ring - Valve...
- Page 25 Specs—Internal Parts 14 15 Item Part # Description Item Part # Description 3.3.02.01.002 3.2.03.04.003-2 Capacitor - Fan Gear Box 3.2.02.01.003 2.1.3.15.0002 Gear Box Mount Condenser 3.3.02.04.001 3.2.03.04.003 Fan Motor Drive Coupling 3.2.03.04.003-1 3.3.02.02.010 Nut - RS Bearing Fan Cover 3.3.02.02.001 Rear Shell Bearing 3.2.01.04.014 Compressor - Aux...
- Page 26 Specs—Wiring www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...
- Page 27 www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...
- Page 28 www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...
