Machine M
M
ODEL
Soft Serve - Countertop - One Flavor
Spaceman USA, LLC
226 Commerce Street
Suite B
Broomfield, CO 80020
(888) 610-5520
www.spacemanusa.com
www.spacemanusa.com
ANUAL
SM-6236H
Sales and Product Information
Monday – Friday
8 AM – 5 PM Mountain
Toll-Free: +1 (888) 610-5520
Local:
sales@spacemanusa.com
info@spacemanusa.com
+1 (720) 328-1020
Email: service@spacemanusa.com
Email: info@spacemanusa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-6236H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spaceman SM-6236H

Summary of Contents for Spaceman SM-6236H

  • Page 1 Machine M ANUAL SM-6236H ODEL Soft Serve - Countertop - One Flavor Customer Service Spaceman USA, LLC Sales and Product Information Sunday – Saturday 226 Commerce Street Monday – Friday 8 AM – 5 PM Mountain Suite B 8 AM – 5 PM Mountain...

  • Page 2: Learn About The Manual

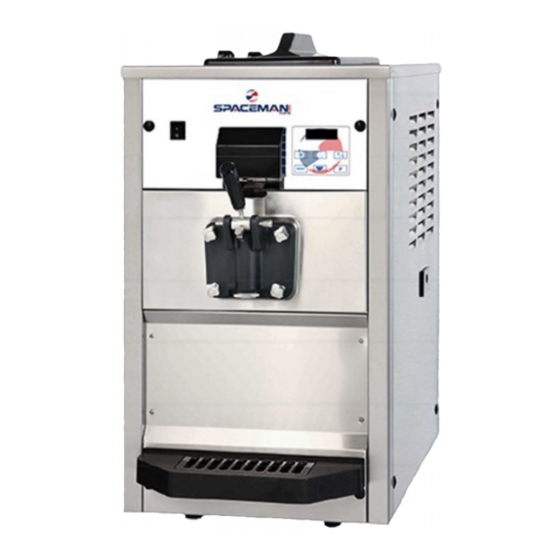

    Introduction Welcome to your machine: Welcome to your Spaceman USA Model 6236H soft serve machine, engineered and designed to provide dependable operation and a consistent, quality product:  One-flavor countertop soft serve machine with portion control  Digital control system for automatic regulation and maximum customization ...

  • Page 3: Table Of Contents

    Table of Contents What do you want to do? Learn about the manual ………………………………………………………………………………………………………. 1 Quickly refresh your knowledge on basic machine operation and parts ……………………………….. 3 Ensure installation requirements …………………………………………………………………………………………. 5 Unpack machine ………………………………………………………………………………………………………………….. 6 Perform routine maintenance ……………………………………………………………………………………………… 7 Clean …………………………………………………………………………………………………………………………….

  • Page 4: Quickly Refresh Your Knowledge On Basic Machine Operation And Parts

    Quick Operation Refresh WARNING: The Quick Operation Refresh is for experienced 6236H operators and for reference ONLY. Detailed start-up instructions MUST be followed to ensure proper installation, cleaning, and operation of the machine. Failure to do so may result in severe damage or injury. Installation and Setup Read and understand ALL Place machine in appropriate food...
  • Page 5 Quick Operation Refresh Machine Parts Dispensing Door Assembly (1), with included parts: Star Cap (1) Beater Rod (1) Gasket (1) Beater Guide (1) Hand Screws Prime Plug (1), with Draw Valve (1), Draw Handle (1), with Retention Pin (1), with O-Rings (2) O-Rings (2) Adjusting Screw (1) with Nut (1)

  • Page 6: Ensure Installation Requirements

    Installation Requirements Electrical requirements Refrigerant requirements Spaceman USA requires that only the specified In the United States, it is required that this machine refrigerant be used in your machine. Alternative be installed in compliance with the National Electrical refrigerants may cause damage to the cooling...

  • Page 7: Unpack Machine

    6. Place the machine on top of the stand, 3. Inspect for damage immediately upon unpacking. countertop, or table. and call Spaceman USA Technical Service if you discover any damaged or missing parts. 7. Place the machine in its final location according to the Installation Requirements 4.

  • Page 8: Perform Routine Maintenance

    ** Based on cleanliness of location and proximity to powder-based machines For optimal machine performance and many years of efficiency and reliability from your machine, Spaceman USA recommends cleaning and sanitizing the machine and its parts daily. The machine comes equipped...

  • Page 9: Clean

    Cleaning: 1. Drain Product NOTES: To expedite draining, turn off machine 30 minutes prior to soften product. To expedite process, keep a bucket nearby to temporarily store removed parts. CAUTION: Never use warm water when rinsing the machine to prevent damage. 1.

  • Page 10: Disassemble Parts

    Cleaning: 2. Disassemble NOTE: Prepare dishwashing area prior to disassembly, use bucket to temporarily store large removed parts and a small container for O-rings, and have a towel nearby to capture excess water. CAUTION: Always separate O-rings and gaskets from metal parts to prevent damage while washing. 2.
  • Page 11 Remove drive shaft from inside cylinder using a dry towel; separate gasket from drive shaft NOTE: If you experience assembly difficulty with drive shaft, Spaceman offers a specialized removal tool for purchase. 6. Remove internal drip tray and front drip tray + splash shield www.spacemanusa.com...

  • Page 12: Wash Parts

    Cleaning: 3. Wash All Parts CAUTION: Never wash parts in a dishwasher. Always hand-wash components with nontoxic, food-safe cleaners. 1. Verify power switch is in the OFF position 2. Use the large brush and cool water to thoroughly clean inside the cylinder; be sure to scrub the back of the cylinder and verify the cylinder is free of ALL product 3.
  • Page 13 www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...

  • Page 14: Assemble Parts

    4. Install dispensing door a. Place O-rings (2) on draw valve; place O-rings (2) on prime plug; coat all ring areas with Spaceman lubricant b. Push prime plug into hole on top of dispensing door c. Insert draw valve into dispensing door, O-rings-first d.
  • Page 15 Cleaning: 4. Assemble 5. If machine has air pump, assemble and install it a. Place O-ring on rear shell, coating with Spaceman lubricant; install gears into shell (they only fit one direction) b. Connect cover and shell, ensuring they fit flush;...

  • Page 16: Sanitize

    Sanitiza- Sanitization IMPORTANT: After sanitizing the machine, DO NOT rinse or touch areas that have been sanitized. Product must be added immediately. If new product will not be added immediately, rinse machine with clean water and loosen door hand-screws to allow cylinder to air-dry. Sanitize machine before using again.
  • Page 17 www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...

  • Page 18: Manage Frozen Product

    Frozen Product Operation Add product to machine NOTE: The mix-low lights illuminate when a hopper is low on product mix and automatically de-illuminate when machine is filled. 1. Verify machine has been recently sanitized (within 1 hour); if machine has not been recently sanitized, verify door hand-screws are tight, and perform sanitizing steps (Page 15) 2.

  • Page 19: Freeze Product

    Frozen Product Operation Freeze product 1. Verify cylinder is full of mixed product and primed CAUTION: Never disconnect air 2. Press FREEZE button pump (if present) with the 3. The motor will begin to agitate the product, and the machine running. If disconnecting cooling system will begin to freeze the product air pump, first press RESET to stop operations and open draw handles...

  • Page 20: Use Standby Mode For Breaks In Machine Use

    Frozen Product Operation Standby Mode Adjust product consistency IMPORTANT: When the machine will NOT be IMPORTANT: Make only small adjustments to utilized for several hours, place it in STANDBY viscosity setting; allow at least 10 to 15 minutes mode to conserve electricity and reduce product between adjustments to evaluate product loss.

  • Page 21: Change Product Temperature In Hoppers

    Press FREEZE to return to freezing operation. Adjust advanced settings There are several advanced settings that can be configured from the machine displays. Call Spaceman Technical Support to adjust advanced settings. www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...

  • Page 22: Troubleshoot Problems

    Remedy 2. Adjust hopper temperature warmer (Page 20) 1. Ensure hopper is at least half full 3. Call Spaceman Technical Support 2. Follow manufacturer instructions for mixing product; ensure correct mix ratios Problem: Hopper is freezing 3.
  • Page 23 2. Replace wearable parts (including scraper blades) at least once every 3 months Probable Cause 3. Contact Spaceman USA Technical Support 1. Cylinders are experiencing freeze-up (usually due 4. Inspect parts carefully for damage, ensure to viscosity being set too high for selected proper assembly;...

  • Page 24: View Machine Specifications, Including Parts And Wiring Diagrams

    Machine Specifications www.spacemanusa.com www.spacemanusa.com Phone: (720) 328 - 1020 Phone: (720) 328-1020 Email: service@spacemanusa.com Email: service@spacemanusa.com...
  • Page 25 Parts Dia- Specs—External Parts Item Part # Description Item Part # Description Item Part # Description 3.4.03.01.004 Hopper Lid 2.3.4.17.003 Panel - Front - L 2.1.3.23.0001 Air Tube Cap 3.1.03.04.009 Low Mix Sensor 3.4.04.01.002 Drip Tray 3.4.08.01.028 O-Ring - Cap 2.1.1.23.0001 Agitator Blade 3.4.07.01.001 Bolt Cover...
  • Page 26 Specs—Operating Parts Dispensing Door and Beater Item Part # Description Item Part # Description Item Part # Description 3.6.39.009 3.4.01.02.001 Beater Shoe - R 3.4.08.01.013 O-Ring - Prime Adjustment Screw 2.1.1.10.0001 3.4.08.01.012 O-Ring - Screw Beater 2.1.3.02.0015 Prime Plug 3.4.05.03.001 Star Cap 2.1.3.25.0002 Drive Shaft 2.1.3.01.0005...
  • Page 27 Specs—Operating Parts Hopper Agitator Item Part # Description 2.1.1.23.0001 Agitator Blade 2.1.4.02.005 HA Housing Cap 2.1.4.02.002 HA Main Magnet 2.1.4.02.003 HA Shaft Magnet 3.6.34.003 C-Clip 2.1.3.42.0002 Drive Shaft 3.3.02.07.004 HA Bearing - Lower 2.1.4.02.001 HA Housing 2.1.4.02.015 Pulley - HA 3.3.02.07.003 HA Bearing - Upper www.spacemanusa.com...
  • Page 28 Specs—Internal Parts Item Part # Description Item Part # Description Item Part # Description 2.1.1.03.0045 Hopper Assembly 3.1.02.22.009 Capacitor - Running 3.2.01.04.004 Start Component 3.2.02.01.001 Condenser - Aux 3.1.02.22.061 Capacitor - Start 3.3.04.01.005 Bushing - 1008 3.3.01.05.003 3.2.03.01.001 Fan Motor - Aux Motor - 900W 3.3.04.02.007 Pulley - 182x2-1008...
  • Page 29 Specs—Air Pump Parts Item Part # Description 3.4.08.03.010 Nylon Ring - Shaft 2.1.4.01.016 Nut - Pump Seat 3.4.08.03.012 Nylon - Pump Seat 2.1.4.01.018 Drive Shaft - Pump 3.3.02.06.001 Bearing - Front 3.3.02.09.002 Bearing Gasket 3.3.02.06.001 Bearing - Rear 2.1.4.01.017 Air Pump Seat 3.6.39.010 Lock Pin 3.6.33.002...
  • Page 30 Specs—Wiring www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...
  • Page 31 www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...
  • Page 32 www.spacemanusa.com Phone: (720) 328-1020 Email: service@spacemanusa.com...
