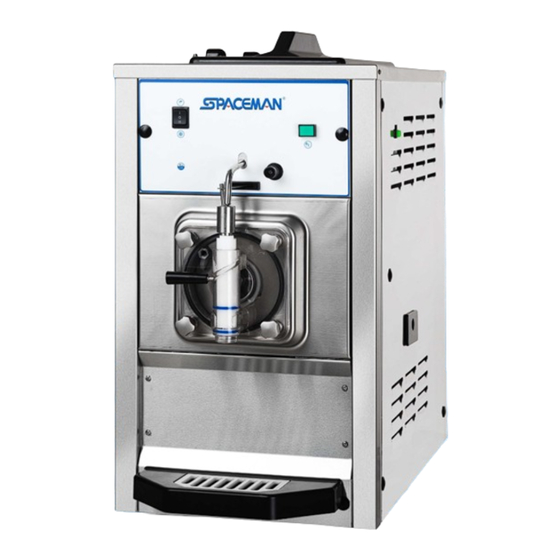

Soft serve - counter top - single flavor

Advertisement

Quick Links

Customer Service
Sunday – Saturday
8 AM – 5 PM Mountain
Toll-Free: +1
Local: +1 (720) 328-1020
service@spacemanusa.com
Phone: (720) 328-1020
Phone: (720) 328 - 1020
Parts List
M
ODEL
Soft Serve - Counter Top - Single Flavor
Spaceman USA, LLC
226 Commerce Street
Suite B
Broomfield, CO 80020
(888) 610-5520
www.spacemanusa.com
www.spacemanusa.com
SM-6450
Sales and Product Information
Monday – Friday
8 AM – 5 PM Mountain
Toll-Free: +1 (888) 610-5520
Local:
sales@spacemanusa.com
info@spacemanusa.com
+1 (720) 328-1020
Email: service@spacemanusa.com
Email: info@spacemanusa.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM-6450 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spaceman SM-6450

  • Page 1 Parts List SM-6450 ODEL Soft Serve - Counter Top - Single Flavor Customer Service Spaceman USA, LLC Sales and Product Information Sunday – Saturday 226 Commerce Street Monday – Friday 8 AM – 5 PM Mountain Suite B 8 AM – 5 PM Mountain...
  • Page 2: Troubleshooting

    2. Inspect beater blades for damage and correct 1. Do NOT lubricate the square end of the drive installation shaft; contact Spaceman USA Technical Support 3. Increase viscosity setting as required (Page 17) for instructions on removing and inspecting 4. Call Spaceman USA Technical Support drive shaft and gear box for damage 2.
  • Page 3 Troubleshooting Problem: Product won’t dispense Problem: Product leaks excessively Probable Cause Probable Cause 1. Product is over-frozen in cylinder 1. Improper or inadequate lubrication of drive 2. Inadequate mix in hopper shaft gasket 3. Power switch is in the OFF position 2.
  • Page 4: Machine Specifications

    Machine Specifications www.spacemanusa.com www.spacemanusa.com Phone: (720) 328 - 1020 Phone: (720) 328 - 1020 Email: service@spacemanusa.com Email: service@spacemanusa.com...
  • Page 5 Parts Specs—External Parts Item Part # Description Item Part # Description 3.4.03.01.004 Hopper Lid 3.4.04.01.005 Drip Tray 2.3.4.28.010 Panel - Left 3.6.39.004 Drip Tray Mount 2.1.1.02.0008 Hopper Assembly 3.4.07.01.001 Bolt Cover 2.3.4.07.007 Panel - Front - U 2.3.4.30.010 Panel - Right 3.1.03.03.002 Power Switch 3.4.04.02.003 Internal Drip Tray 3.1.02.14.001 Low Mix Indicator...
  • Page 6 Specs—Operating Parts Dispensing Door and Beater Control Levers Item Part # Description Item Part # Description 2.1.3.36.0002 Draw Valve Pin 2.1.4.04.002 Draw Lever 2.1.3.01.0006 Draw Valve 3.6.22.026 Visc. Screw - M5x45 3.4.08.01.036 O-Ring - Valve 2.1.4.04.012 Viscosity Housing 2.1.3.14.0006 Dispensing Door 2.1.4.04.011 Nut - Viscosity 3.4.05.01.002 Dispending Handle...
  • Page 7 Specs—Internal Parts Item Part # Description Item Part # Description 3.3.04.01.008 Bushing - 1610 3.2.04.04.016 Solenoid Coil 3.3.04.02.006 Pulley - 112x1-1610 3.2.04.04.001 Solenoid Body 3.1.02.22.051 3.3.03.03.011 Belt - XPA686 Capacitor - R/S 3.3.02.01.005 Gear Box 3.2.04.01.001 TX Valve 3.2.03.04.003-2 Capacitor - Fan 3.3.02.04.002 Drive Coupling 3.3.02.02.010 Nut - RS Bearing 3.2.02.01.003...
  • Page 8 Specs—Wiring www.spacemanusa.com Phone: (720) 328 - 1020 Email: service@spacemanusa.com...
  • Page 9 www.spacemanusa.com Phone: (720) 328 - 1020 Email: service@spacemanusa.com...
  • Page 10 www.spacemanusa.com Phone: (720) 328 - 1020 Email: service@spacemanusa.com...
