Textron GREENLEE 7646 Quick Start Manual

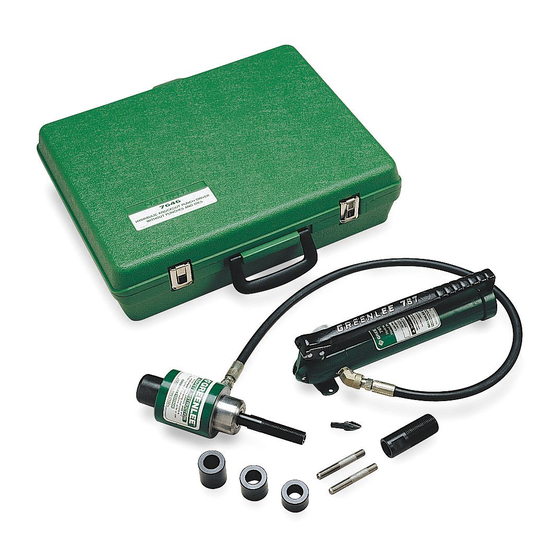

Ram and Hand Pump Hydraulic Driver Kits (Inch and Metric)
• Fast, easy and simple to operate.
• Compact design for field use on construction sites
and maintenance jobs.
• Punches 10 times faster than wrench method.
• Will also drive 751 Cable Cutter head.
• Can be used with most standard round Slug-Buster
and Slug-Splitter ® punches (not 1/2", 9/16", 5/8").
• Can be used with non-round punches (adapter may be required).
• 3-foot hose
• Powerful 11-ton hydraulic ram.
steel capacities for coNduit sizes
reQuired draW stud aNd accessories 1/2" 3/4"
3/4" Stud (03294),
3/8" Stud (30043) & Spacers
3/4" Stud (03294),
Long Spacer
3/4" Stud (03294),
Short Spacer
3/4" Stud (03294)
3/4" Stud (03294),
& Sleeve (03170)
7/16" Stud (29451)
3/4" Stud (29452)
10 ga. Mild steel
h
H
f
F
G g
b
B
k K J J
A
a
M
M
N
N
= ReplacemenT paRT
= accessoRy
7646
staNdard & slug-buster puNches
®
1" 1-1/4" 1-1/2" 2"
10 ga. staiNless steel
L
l
i I
r
R
cat. No. upc No. d escriptioN
7646 15906 D river with Hand Pump, Draw Studs,
S pacer and Plastic Case
7306 15909 D river, Hand Pump, Standard Punches,
D ies and Draw Studs for 1/2" through
2 " Conduit, Plastic Case
7306SB 34360 D river, Hand Pump, Slug-Buster Punches,
D ies and Draw Studs for 1/2" through 2"
C onduit, Adapter, Spacers, Kwik Stepper
Step Bit and Plastic Case
7310 15910 D river, Hand Pump, Standard Punches,
D ies and Draw Studs and Spacers for
1 /2" through 4" Conduit, Steel Case
7310SB 34361 D river, Hand Pump, Slug-Buster Punches,
D ies and Draw Studs for 1/2" through 2"
a nd 2-1/2" through 4" Standard Conduit
S ize Punches, Dies and Draw Studs,
A dapter, Spacers, Kwik Stepper Step Bit
a nd Steel Case
7646Pg 27433 M etric – Driver, Hand Pump, Standard
P g Punches, Dies and Draw Studs and
S pacers for 15.2 mm through 60.0 mm,
Plastic Case
7646PgSB 32799 M etric – Driver, Slug-Buster Pg Punches,
D ies and Draw Studs for 15.2 mm through
6 0.0 mm, Adapter, Spacers, Kwik Stepper
Step Bit and Plastic Case
7304 02815 S tandard Punch and Die Kit (no draw studs)
f or 2-1/2" through 4" Conduit, Plastic Case
38456 38456 D river, Hand Pump, Standard Punches, Dies
a nd Draw Studs and Spacers for 1/2"
t hrough 3" and 4" Conduit, Steel Case
38520 38520 D river, Hand Pump, Slug-Buster Punches
a nd Draw Studs for 1/2" through 3" and 4"
C onduit, Adapter, Spacers, Kwik Stepper
S tep Bit and Steel Case
staNdard
2-1/2" 3" 3-1/2" 4"
raM aNd haNd puMp hydraulic driver parts ideNtificatioN
key cat./upc No.
A 746 / 17091
B 2113AA / 03294
F 1557AA / 03170
G 1614SS / 30043
H 15908
I 1924AA / 03248
J 1925AA / 03249
K 1926AA / 06904
L 34410
M 767 / 13284
N 06302 / 06302
R 30206
www.greenlee.com
Weight
lbs. kg.
20
24 10.9
24 10.9
®
54 24.5
54 24.5
24 10.9
24 10.9
21
48.4
48 21.8
slug-splitters
®
1/2" 3/4" 1" 1-1/4" 1-1/2"
descriptioN
Ram (includes Item B)
Draw Stud–3/4" x 5-3/8"
Punch Sleeve
Draw Stud–3/8" x 2-13/16"
Spacer Group (includes Items I, J and K)
Spacer-Short
Spacer-Medium
Spacer-Long
Kwik Stepper Step Bit 1/2"
Hydraulic Hand Pump
High Pressure Hose–1/4" x 3'
Plastic Case
9.1
9.5
22
2"
