Summary of Contents for Kontron AdvancedTCA AM4330

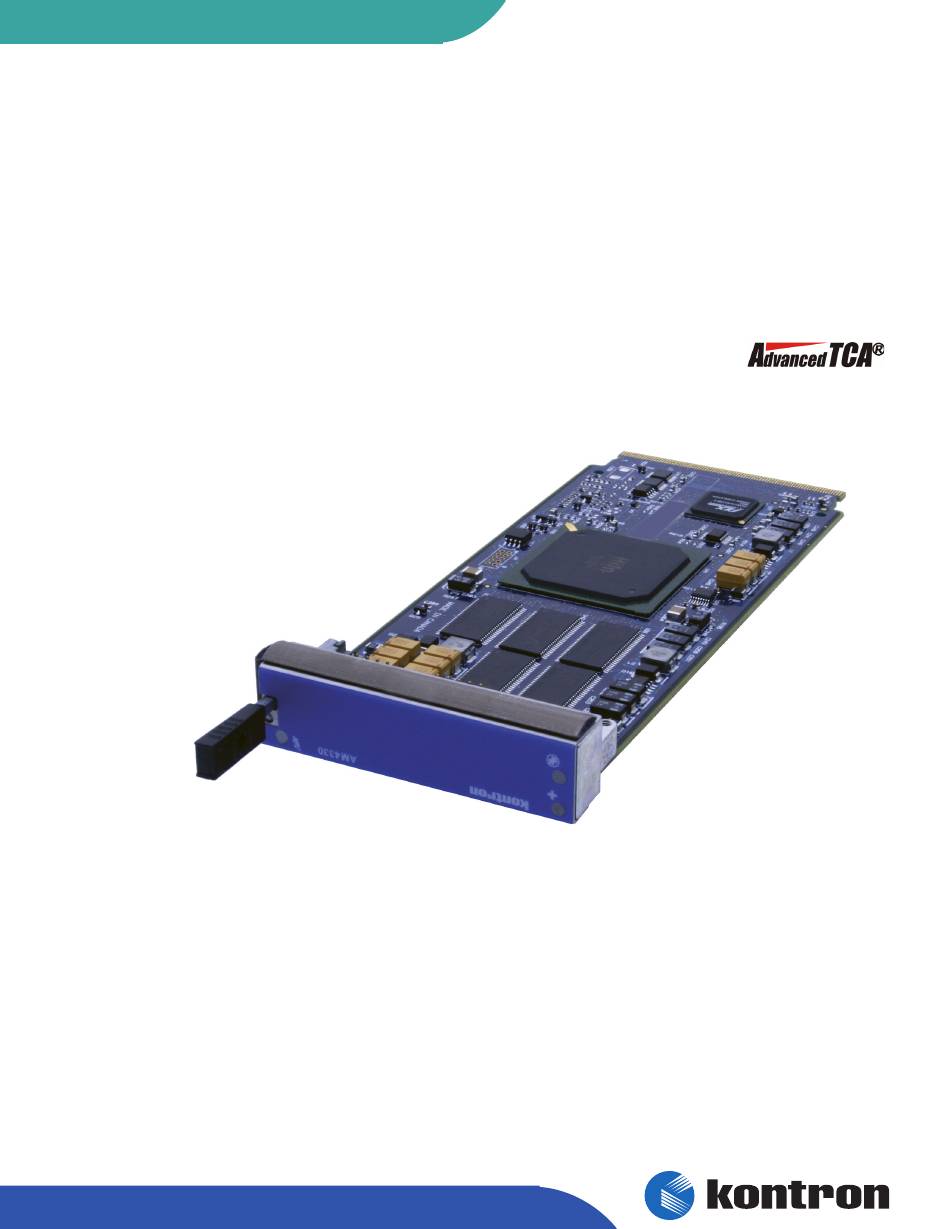

- Page 1 AM4330 User's Guide Document Revision 1.0 Ref. : M5508_TECH_1/ October 2006...
- Page 2 © 2006 Kontron, an International Corporation. All rights reserved. The information in this user's guide is provided for reference only. Kontron does not assume any liability arising out of the application or use of the information or products described herein. This user's guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Kontron, nor the rights of others.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Safety Instructions ............iv Before You Begin . - Page 4 Table of Contents Installing the Board ............13 Onboard Interconnectivity .
-
Page 5: Safety Instructions
• Use extreme caution when installing or removing components. Refer to the installation instructions in this user's guide for precautions and procedures. If you have any questions, please contact Kontron Technical Support WARNING High voltages are present inside the chassis when the unit's power cord is plugged into an electrical outlet. -
Page 6: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Kontron strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 7: Preface
For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned. The following is a summary of chapter contents: • Chapter 1, Product Description •... -
Page 8: Advisory Conventions
Disclaimer: We have tried to identify all situations that may pose a warning or a caution condition in this user's guide. However, Kontron does not claim to have covered all situations that might require the use of a Caution or a Warning. -
Page 9: Storing Boards
Preface Storing Boards Electronic boards are sensitive devices. Do not handle or store device near strong electrostatic, electromagnetic, magnetic or radioactive fields. viii AM4330 User's Guide... -
Page 10: Regulatory Compliance Statements
Although Kontron offers accessories, the customer must ensure that these products are installed with proper shielding to maintain CE compliance. Kontron does not offer engineering services for designing cabling systems. In addition, Kontron will not retest or recertify systems or components that have been reconfigured by customers. -
Page 11: Limited Warranty
In the event of repair, refunding or replacement of any part, the ownership of the removed or replaced parts reverts to Kontron, and the remaining part of the original guarantee, or any new guarantee to cover the repaired or replaced items, will be transferred to cover the new or repaired items. -
Page 12: Product Description

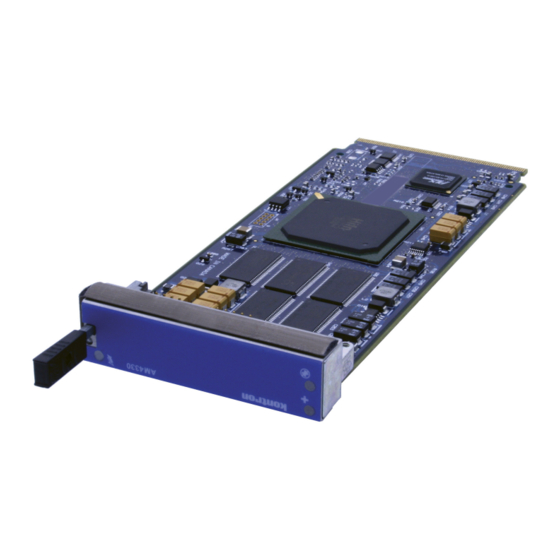

AdvancedTCA Carrier boards and CPU Nodes, as well as in MicroTCA-based systems. Kontron’s AM4330 is designed with a Hifn HIPP-II 8155 IPSec encryption controller which performs multi- protocol packet processing for security protocols such as IPSec (ESP and AH), SSL/TLS, L2TP, and PPTP. The Hifn encryption controller is complemented by a PCI-X to PCIexpress bridge and, with a 128MB private memory interface, the AM4330 can handle more than 500,000 IPSec small sessions. -
Page 13: Board Specifications
Product Description Board Specifications Features Description • AMC.0 R2.0 Compliancy • AMC.1 R1.0 • One (1) X4 upstream port PCI-Express Features • Hot Pluggable • PCI-Express 1.0a compliant PCI-X Features • 64bits / 133MHz between PLX bridge and Hifn encryption controller •... - Page 14 Product Description Features Description • Operating: 5% to 90% @55°C/131°F non-condensing Environmental Humidity* • Storage and Transit: 5% to 95% @ 40°C/104°F non-condensing • Operating: 4,000 m / 13,123 ft Environmental Altitude* • Storage and Transit: 15,000 m / 49,212 ft •...
-
Page 15: Compliance
Product Description Compliance This product conforms to the following specifications: • PICMG3.0R1.0 (Advanced TCA core specification) • AMC.0 R2.0 • AMC.1 R1.0 Hot-Plug Capability The AM4330 supports Full Hot Swap capability as per PICMG3.0R1.0. It can be removed from or installed in the system while it is on (without powering-down the system). -
Page 16: Board Features
Board Features 2. Board Features Block Diagram A M 4330 A M C ED G E CO N N ECTO R H ot Sw ap D C- D C St at us 12V t o 1V Pow er M M C SEN SO RS D C- D C 12V t o 3. -
Page 17: Hifn Network Security Processor
Board Features Hifn Network Security Processor The Hifn 8155 Network Security Processor is part of the new generation of the Hifn Intelligent Packet Processor (HIPP) architecture. The HIPP II 8155 uses parallel execution units for maximum performance featuring parallel Public-Key (PK) processors with a transparent load-balancing dispatcher and parallel security/compression cores, and a transparent Load Balancer. -
Page 18: Sensor Data Record (Sdr)
Board Features reset the payload power and the restart of the MMC will not affect the payload and will restore the previous Module Hot Swap state. The watchdog timeout expires after six seconds if strobes are not generated. The external watchdog supervisor is not configurable and must not be confused with the IPMI v1.5 watchdog timer commands. -
Page 19: Field Replaceable Unit (Fru) Information
Board Features Sensor Name Voltage/Signals Monitored Scanning Enabled Health LED under Power (Green to Red) State Board 3.3VSUS 3.3 V Suspend Board 12.0V 12.0 V VCC Bleu LED 5.0 V Board 2.5V 2.5 V Board V1.5V 1.5 V Board 1.0V 1.0 V Temp AirInlet Board Inlet Temperature... -
Page 20: E-Keying
MMC Firmware Upgrade Procedure It is important to use compatible, MMC, FWUM versions. Since all these software and hardware solution are exchanging information, they must be in synch. Please always follow Kontron documentation for all your upgrade. The recommended upgrade sequence must be:, FWUM, MMC,. -
Page 21: Fwum Firmware Upgrade Procedure
The recommended upgrade sequence must be: FWUM, MMC,. FWUM Firmware upgrade is done using IPMIFWU utility. This is a Linux utility developed by Kontron that use the serial port of any computer to exchange with the FirmWare Upgrade Manager (FWUM) in order to upgrade to FWUM or the MMC firmware. - Page 22 Board Features LED state Description AMC is in M4 state, normal state when board is in operation. Ready for hot swap. Short blink M5 state deactivation request Long blink M2 state Activation Request. When the AMC latch is disengaged from the faceplate, the hot swap switch embedded in the PCB will assert a "HOT_SWAP_PB#"...
-
Page 23: Debugging Features
Board Features Debugging Features 2.5.1 AMC Health (LED2) The green LED indicates that the AMC is working properly. The amber LED indicates that the AMC is in fault. 2.5.2 Out of service (LED1) When this LED is off, it indicates that the board is working properly. When this LED is on, it indictes a major fault or an AMC malfunction. -
Page 24: Installing The Board
Installing the Board 3. Installing the Board Onboard Interconnectivity 3.1.1 Onboard Connectors and Headers Description Connector Comments AMC Connector AMC Connector Manufacturing Connector Reserved Board Hot Swap and Installation Some precautions must be taken when connecting or disconnecting a board to: 1 Rail guides must be installed on the enclosure to slide the board to the backplane. -
Page 25: Removing An Amc
Installing the Board 3.2.2 Removing an AMC To remove an AMC: 1 Open the AMC handle. 2 The blue LED will start blinking; wait until it is solid blue. 3 Extract the AMC by pulling it out with the handle. Note: Ensure that your OS is Hot Plug compliant before removing your AMC. - Page 26 A. AMC Connector Pinout (J1) Signal Signal Signal Signal B129 RxD15-(N.C.) TxD4+ RxD8-(N.C.) B130 RxD15+(N.C.) PS1# TxD4- RxD8+(N.C.) B131 MP_3V3 B132 TxD15-(N.C.) RxD4+ TxD8-(N.C.) B133 TxD15+(N.C.) RxD4- TxD8+(N.C.) B134 B135 RxD16-(N.C.) TxD5+ RxD9-(N.C.) B136 RxD16+(N.C.) TxD5- RxD9+(N.C.) B137 B138 TxD16-(N.C.) RxD0+ (N.C.) RxD5+ TxD9-(N.C.)
- Page 27 Signal Signal Signal Signal B125 B168 ENABLE# PS0# B126 TxD14- B169 B127 TxD14+ B170 B128 AM4330 User's Guide...
-
Page 28: Getting Help
Tel.: +49 (0) 8341 803 333 Fax: (450) 437-8053 Fax: +49 (0) 8341 803 339 If you have any questions about Kontron, our products, or services, visit our Web site at: www.kontron.com You also can contact us by E-mail at: North America: support@ca.kontron.com... -
Page 29: Returning Defective Merchandise
3 Fax it to us at: North America (450) 437-0304, EMEA +49 (0) 8341 803 339 • E-mail 1 Send us an e-mail at: RMA@ca.kontron.com in North America and at: orderprocessing@kontron-modular.com in EMEA. In the e-mail, you must include your name, your company name, your address, your city, your postal/zip code, your phone number, and your e-mail. -
Page 30: When Returning A Unit
• Clearly write or mark the RMA number on the outside of the package you are returning. • Ship prepaid. We take care of insuring incoming units. North America EMEA Kontron Canada, Inc. Kontron Modular Computers GmbH 616 Curé Boivin Sudetenstrasse 7 Boisbriand, Québec 87600 Kaufbeuren... - Page 31 __________________________ E-Mail: _________________________ P.O. # Serial Number Failure or Problem Description (if not under warranty) Fax this form to Kontron’s Technical Support department in North America at (450) 437-0304 in EMEA at +49 (0) 8341 803 339 AM4330 User's Guide...
