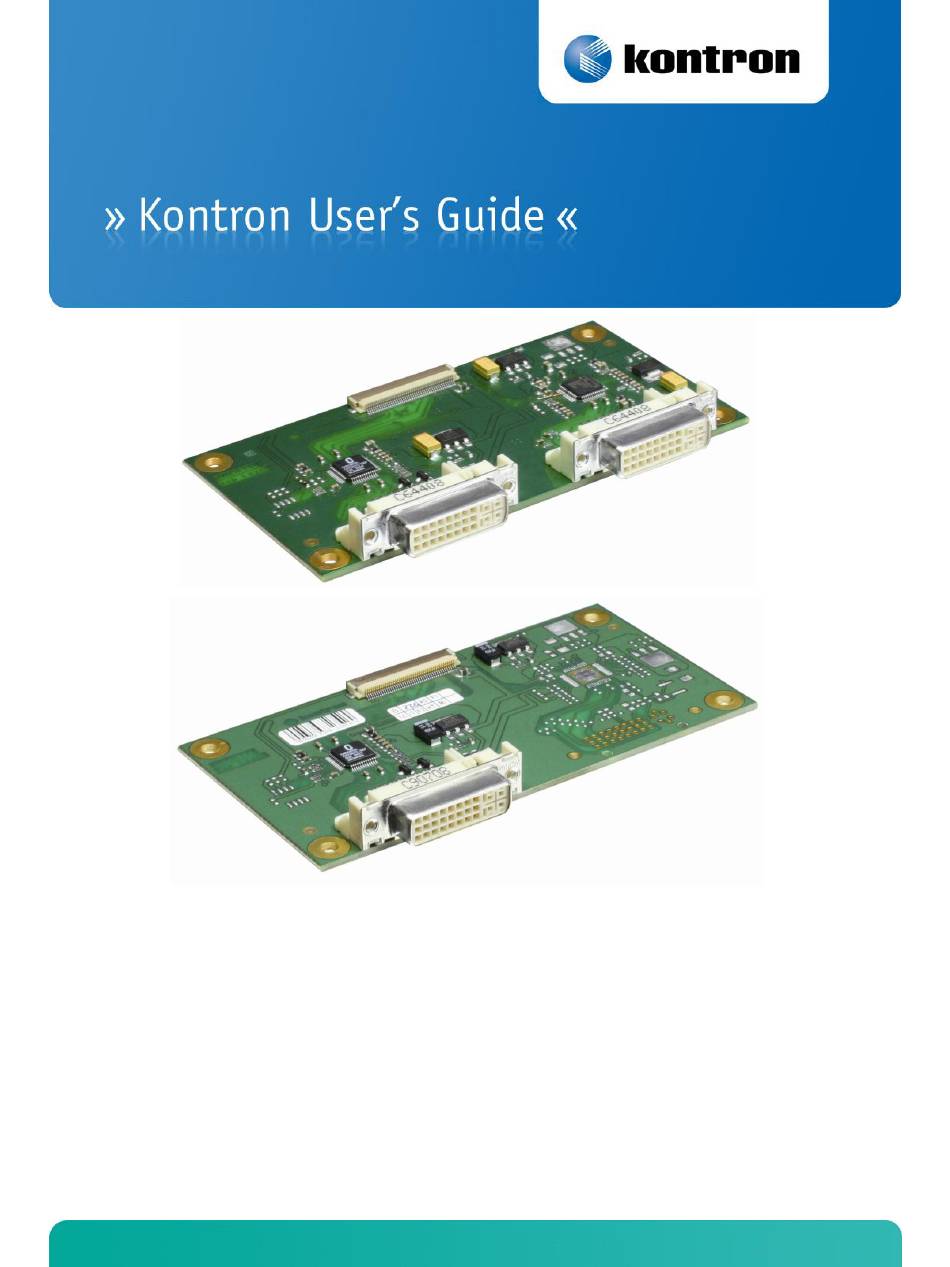

- Page 1 ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 Document Revision 111 If it’s embedded, it’s Kontron.
-
Page 2: Table Of Contents
Warranty ..........................2 Technical Support ........................2 Introduction ................. 3 ADA-SDVOB-FC5 ........................3 Specification ................. 4 Functional Specification ......................4 3.1.1 ADA-ETX-CD-FC4 (96006-0000-00-4) ..................4 3.1.2 ADA-SDVOB-FC5 (96006-0000-00-5) ..................4 Block Diagram ........................6 3.2.1 ADA-ETX-CD-FC4 (96006-0000-00-4) ..................6 3.2.2 ADA-SDVOB-FC5 (96006-0000-00-5) .................. - Page 3 SDOVC to DVI ........................15 DVIB connector ........................17 DVIC connector ........................18 Appendix C: Document Revision History ..........19 www.kontron.com...
-
Page 4: User Information
“as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned. -
Page 5: Warranty
This Kontron Embedded Modules GmbH product is warranted against defects in material and workmanship for the warranty period from the date of shipment. During the warranty period, Kontron Embedded Modules GmbH will at its discretion decide to repair or replace defective products. -
Page 6: Introduction
ADA-SDVOB-FC5 The ADA-SDVOB-FC5 (96006-0000-00-5) is a small board to convert the signals from single channel SDVO to DVI. The SDVO signals are available on Kontron’s ETX® boards which have implemented the "SDVO feature connector" like ETX®-CD and ETX®-DC. The device is available also as ADA-ETX-CD-FC4(96006-0000-00-4) which offers two SDVO to DVI channels and is... -
Page 7: Specification
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Specification Specification Functional Specification 3.1.1 ADA-ETX-CD-FC4 (96006-0000-00-4) SDVOB - DVI Transmitter: Chrontel CH7307C SDVOC - DVI Transmitter: Silicon Image SIL1362 » Digital Visual Interfach (DVI) Transmitter up to 165M pixels/second » Supports resolutions up to UXGA (1600x1200) »... - Page 8 ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Specification SDVO Output during bootup The Bios must be set to enable the SDVO output during boot-up. » ETX®-DC in AMI Bios Setup: Chipset Display Control: SDVO or CRT + SDVO » ETX®-CD in the Phoenix Bios Setup: Devices Integrated Video Display Control: EFP only or CRT + EFP...
-
Page 9: Block Diagram
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Specification SDVO Output during bootup The regarding driver must enable the interface. This does not need an enabled boot up display set to SDVO. It can happen that you have an enabled SDVO boot device, but when in windows the driver is loaded, the SDVO interface is disabled after the graphic driver installation. -
Page 10: Mechanical Specification
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Specification Mechanical Specification Electical Specification Supply Voltage » 5V DC+/- 5% Supply Voltage Ripple » Maximum 100 mV peak to peak 0 – 20 MHz Environmental Specification Temperature » Maximum operating temperature: 0 to +60 °C (**) »... - Page 11 ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Specification Humidity » Operating: 10% to 90% (non condensing) » Non operating: 5% to 95% (non condensing)
-
Page 12: Ada-Sdvob-Fc5 Connectors
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / ADA-SDVOB-FC5 Connectors ADA-SDVOB-FC5 Connectors Connector Locations... -
Page 13: Pinout List
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / ADA-SDVOB-FC5 Connectors Pinout List Feature Connector J1 Pinout Pin on ETX®-CD Description Reserved Reserved 5V power 5V power 5V power RESET# Reset signal SDVO_CTRLDATA I2C based control signal for SDVO devices; data SDVO_CTRCLK I2C based control signal for SDVO devices; clock... - Page 14 ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / ADA-SDVOB-FC5 Connectors DVI Connector J2/J3 Pinout Name Name TMDS Data2- Not connected TMDS Data2+ +5 V Power Not connected Hot Plug Detect Not connected TMDS Data0- DDC Clock [SCL] TMDSData0+ DDC Data [SDA] Not connected Not connected...
-
Page 15: Schematics
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Schematics Schematics Feature connector... -
Page 16: Regulator
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Schematics Regulator... -
Page 17: Sdvob To Dvi
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Schematics SDVOB to DVI... -
Page 18: Sdovc To Dvi
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Schematics SDOVC to DVI... - Page 19 ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Schematics...
-
Page 20: Dvib Connector
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Schematics DVIB connector... -
Page 21: Dvic Connector
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Schematics DVIC connector... -
Page 22: Appendix C: Document Revision History
ADA-ETX-CD-FC4 / ADA-SDVOB-FC5 / Appendix C: Document Revision History Appendix C: Document Revision History Revision Date Edited by Changes 17.06.2009 Created preliminary manual 15.12.2009 Added information about both product variants 13.09.2010 Added schematics and updated product image Corporate Offices Europe, Middle East & Africa...
