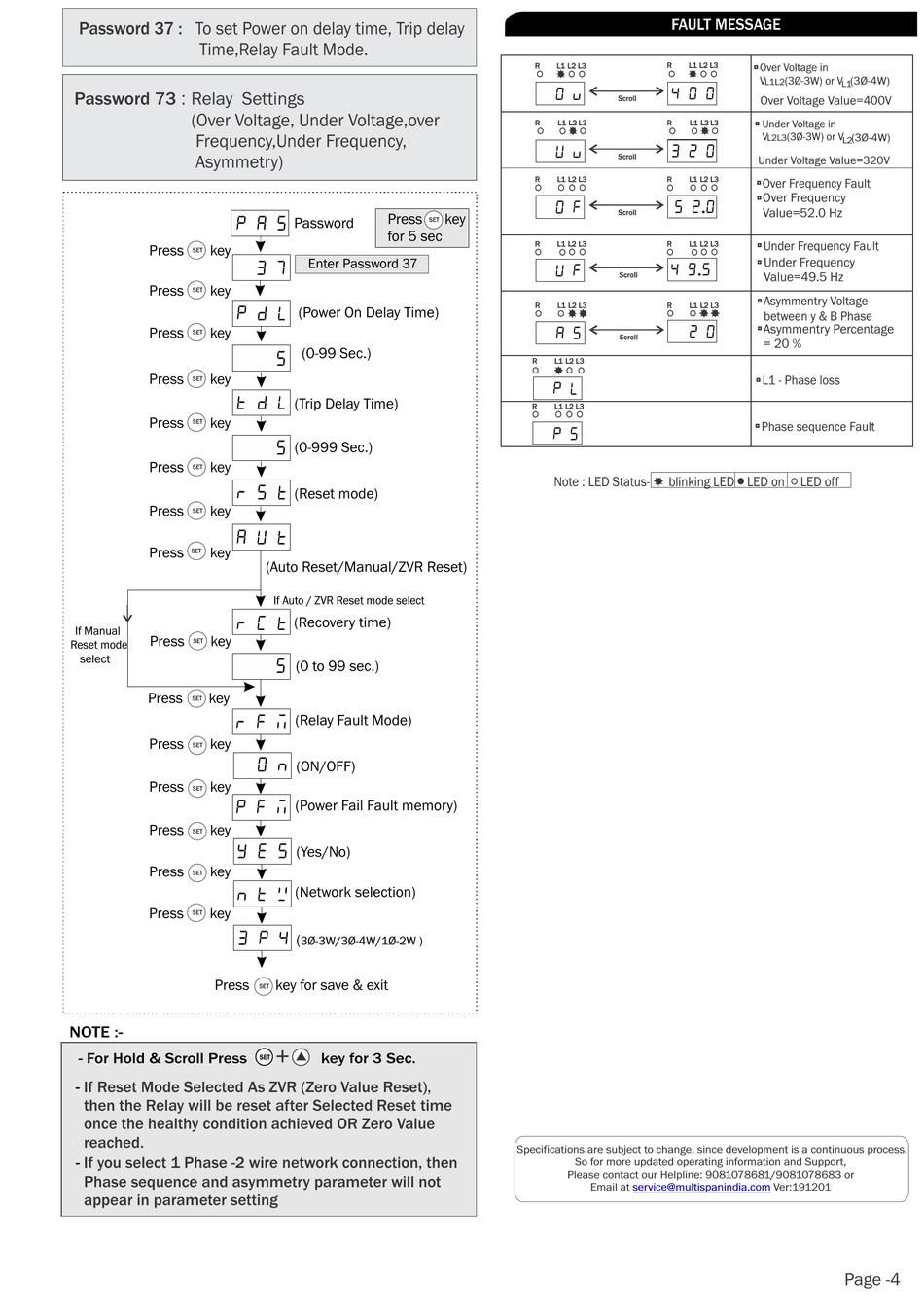

MULTISPAN VPR 126 Manual page 4

Password 37 : To set Power on delay time, Trip delay
Time,Relay Fault Mode.
Password 73 : Relay Settings
(Over Voltage, Under Voltage,over
Frequency,Under Frequency,
Asymmetry)
p a s
Press key
SET
Press key
SET
P D L
Press key
SET
Press key
SET
T D L
Press key
SET
Press key
SET
R s t
Press key
SET
a u t
Press key
SET
r C t
If Manual
Press key
SET
Reset mode
select
Press key
SET
R F M
Press key
SET
Press key
SET
p F M
Press key
SET
y e s
Press key
SET
n t w
Press key
SET
3 p 4
Press
NOTE :-
- For Hold & Scroll Press
- If Reset Mode Selected As ZVR (Zero Value Reset),
then the Relay will be reset after Selected Reset time
once the healthy condition achieved OR Zero Value
reached.
- If you select 1 Phase -2 wire network connection, then
Phase sequence and asymmetry parameter will not
appear in parameter setting
Press
Password
SET
for 5 sec
Enter Password 37
3 7
(Power On Delay Time)
(0-99 Sec.)
5
(Trip Delay Time)
S
(0-999 Sec.)
(Reset mode)
(Auto Reset/Manual/ZVR Reset)
If Auto / ZVR Reset mode select
(Recovery time)
5
(0 to 99 sec.)
(Relay Fault Mode)
O N
(ON/OFF)
(Power Fail Fault memory)
(Yes/No)
(Network selection)
(
3Ø-3W/3Ø-4W/1Ø-2W )
key for save & exit
SET
+
key for 3 Sec.
SET
R L1 L2 L3
O V
Scroll
R L1 L2 L3
u v
Scroll
R L1 L2 L3
O F
Scroll
key
R L1 L2 L3
U F
Scroll
R L1 L2 L3
A S
R L1 L2 L3
P L
R L1 L2 L3
P S
Note : LED Status-
Specifications are subject to change, since development is a continuous process,
So for more updated operating information and Support,
Please contact our Helpline: 9081078681/9081078683 or
Email at
FAULT MESSAGE
R L1 L2 L3
◘ Over Voltage in
V (3Ø-3W) or V
L1L2
4 0 0
Over Voltage Value=400V
R L1 L2 L3 ◘ Under Voltage in
V (3Ø-3W) or V
L2L3
3 2 0
Under Voltage Value=320V
R L1 L2 L3
Over Frequency Fault
◘
Over Frequency
◘
5 2.0
Value=52.0 Hz
R L1 L2 L3 ◘ Under Frequency Fault
Under Frequency
◘
4 9.5
Value=49.5 Hz
Asymmentry Voltage
◘
R L1 L2 L3
between y & B Phase
Asymmentry Percentage
2 0 ◘
Scroll
= 20 %
L1 - Phase loss
◘
Phase sequence Fault
◘
blinking LED LED on
service@multispanindia.com Ver:191201
(3Ø-4W)
L1
(3Ø-4W)
L2
LED off
Page -4
