MULTISPAN VPR 126 Manual page 3

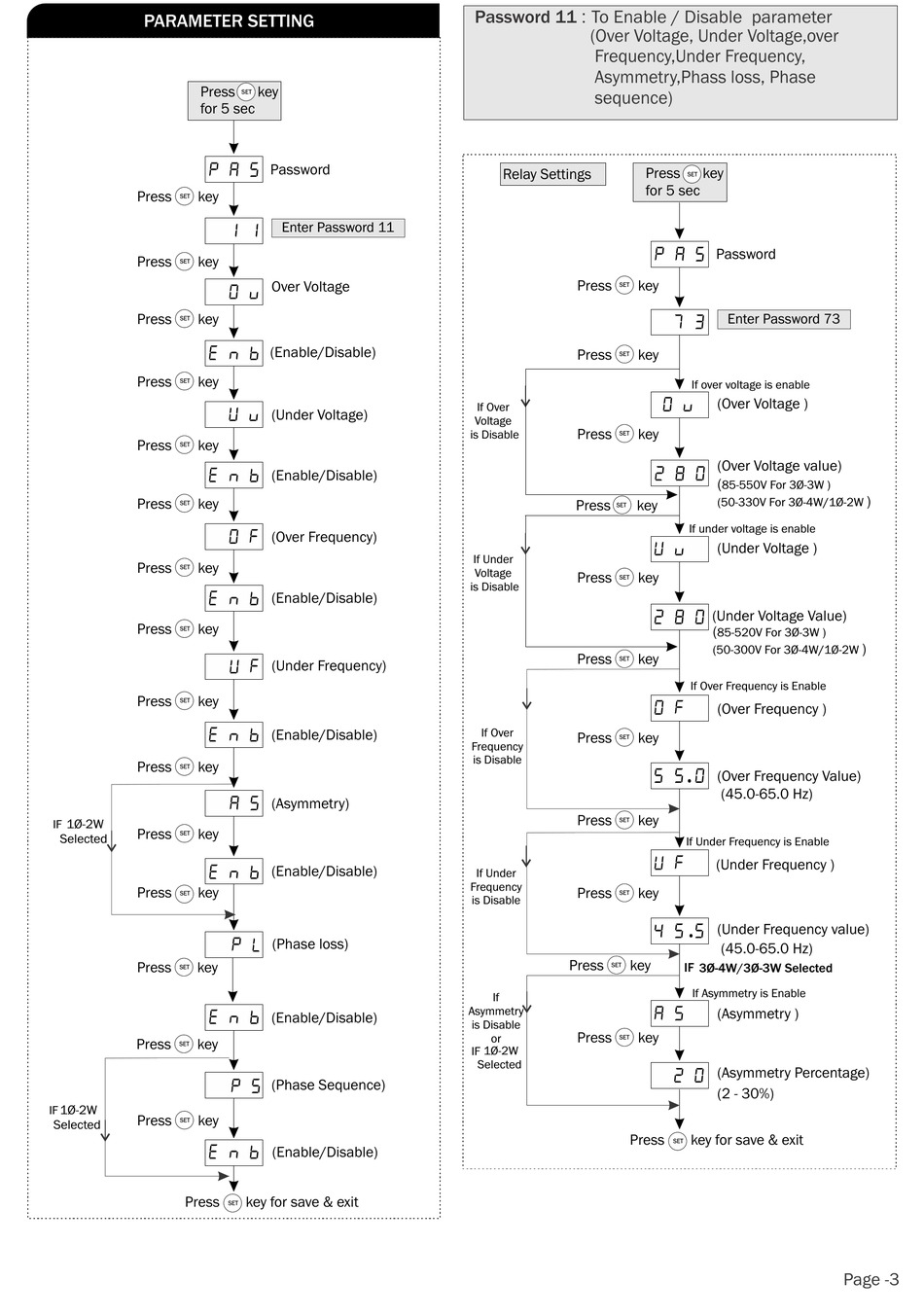

PARAMETER SETTING
Press
for 5 sec
p a s
Press key
SET
Press key
SET
Press key
SET
e n b
Press key
SET
Press key
SET
e n b
Press key
SET
Press key
SET
e n b
Press key
SET
Press key
SET
e n b
Press key
SET
IF 1Ø-2W
Press key
SET
Selected
e n b
Press key
SET
Press key
SET
e n b
Press key
SET
IF 1Ø-2W
Press key
SET
Selected
e n b
Press
key
SET
Password
Enter Password 11
1 1
Over Voltage
O V
(Enable/Disable)
u V
(Under Voltage)
(Enable/Disable)
O F
(Over Frequency)
(Enable/Disable)
u F
(Under Frequency)
(Enable/Disable)
a s
(Asymmetry)
(Enable/Disable)
p L
(Phase loss)
(Enable/Disable)
p s
(Phase Sequence)
(Enable/Disable)
key for save & exit
SET
Password 11 : To Enable / Disable parameter
(Over Voltage, Under Voltage,over
Frequency,Under Frequency,
Asymmetry,Phass loss, Phase
sequence)
Relay Settings
Press key
SET
Press key
SET
If Over
Voltage
Press key
is Disable
SET
Press key
SET
If Under
Voltage
Press key
SET
is Disable
Press key
SET
If Over
Press key
SET
Frequency
is Disable
Press key
SET
If Under
Frequency
Press key
SET
is Disable
Press key
SET
If
Asymmetry
is Disable
Press key
or
SET
IF 1Ø-2W
Selected
Press
Press key
SET
for 5 sec
p a s
Password
Enter Password 73
7 3
If over voltage is enable
O V
(Over Voltage )
(Over Voltage value)
2 8 0
(
85-550V For 3Ø-3W )
(50-330V For 3Ø-4W/1Ø-2W
If under voltage is enable
u V
(Under Voltage )
2 8 0 (Under Voltage Value)
(
85-520V For 3Ø-3W )
(50-300V For 3Ø-4W/1Ø-2W
If Over Frequency is Enable
O F
(Over Frequency )
5 5 0
(Over Frequency Value)
(45.0-65.0 Hz)
If Under Frequency is Enable
U F
(Under Frequency )
4 S S (Under Frequency value)
(45.0-65.0 Hz)
IF 3Ø-4W/3Ø-3W Selected
If Asymmetry is Enable
A S
(Asymmetry )
(Asymmetry Percentage)
2 0
(2 - 30%)
key for save & exit
SET
)
)
Page -3
