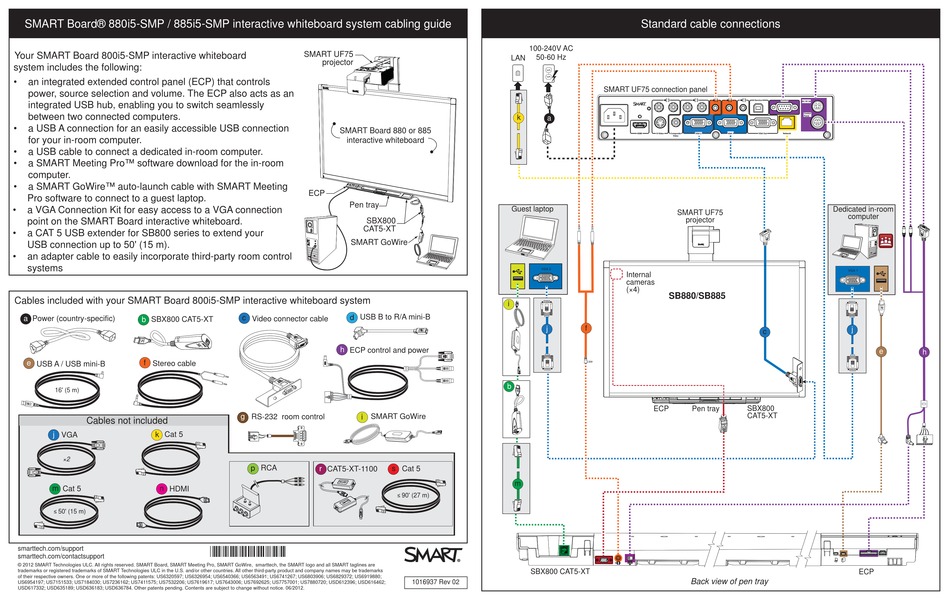

SMART 880i5-SMP Cabling Manual

SMART Board® 880i5-SMP / 885i5-SMP interactive whiteboard system cabling guide
Your SMART Board 800i5-SMP interactive whiteboard
system includes the following:
• an integrated extended control panel (ECP) that controls
power, source selection and volume. The ECP also acts as an
integrated USB hub, enabling you to switch seamlessly
between two connected computers.
• a USB A connection for an easily accessible USB connection
for your in-room computer.
• a USB cable to connect a dedicated in-room computer.
• a SMART Meeting Pro™ software download for the in-room
computer.
• a SMART GoWire™ auto-launch cable with SMART Meeting
Pro software to connect to a guest laptop.
• a VGA Connection Kit for easy access to a VGA connection
point on the SMART Board interactive whiteboard.
• a CAT 5 USB extender for SB800 series to extend your
USB connection up to 50' (15 m).
• an adapter cable to easily incorporate third-party room control
systems
Cables included with your SMART Board 800i5-SMP interactive whiteboard system
a Power (country-specific)
b SBX800 CAT5-XT
e f Stereo cable
USB A / USB mini-B
16' (5 m)
Cables not included
k Cat 5
j VGA
×2
m Cat 5 n
HDMI
50' (15 m)
smarttech.com/support
smarttech.com/contactsupport
© 2012 SMART Technologies ULC. All rights reserved. SMART Board, SMART Meeting Pro, SMART GoWire, smarttech, the SMART logo and all SMART taglines are
trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All other third-party product and company names may be trademarks
of their respective owners. One or more of the following patents: US6320597; US6326954; US6540366; US6563491; US6741267; US6803906; US6829372; US6919880;
US6954197; US7151533; US7184030; US7236162; US7411575; US7532206; US7619617; US7643006; US7692625; US7757001; US7880720; USD612396; USD616462;
USD617332; USD635189; USD636183; USD636784. Other patents pending. Contents are subject to change without notice. 06/2012.
SMART UF75
projector
SMART Board 880 or 885
interactive whiteboard
ECP
Pen tray
SBX800
CAT5-XT
SMART GoWire
d USB B to R/A mini-B
c
Video connector cable
h ECP control and power
g SMART GoWire
RS-232 room control i
p RCA r
CAT5-XT-1100
*1016937*
100-240V AC
50-60 Hz
LAN
k
a
Guest laptop
VGA 2
i
j
b
s Cat 5
m
90' (27 m)
SBX800 CAT5-XT
1016937 Rev 02
Standard cable connections
SMART UF75 connection panel
SMART UF75
projector
Internal
cameras
(×4)
SB880/SB885
f
c
SBX800
ECP Pen tray
CAT5-XT
Back view of pen tray
Dedicated in-room
computer
VGA 1
j
e
h
ECP
