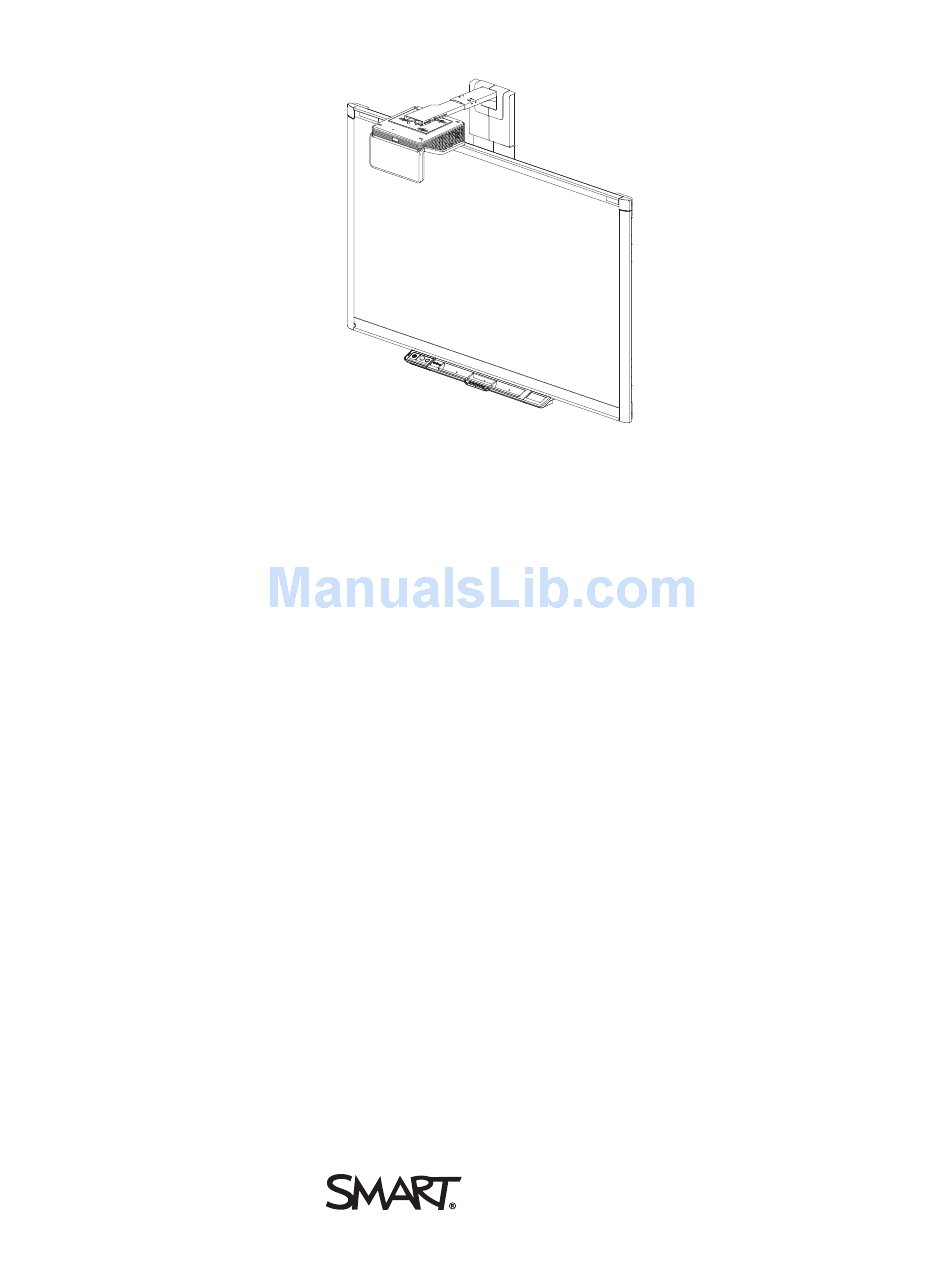

SMART Board® 800i6
Interactive whiteboard systems
Configuration and user's guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800i6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMART 800i6

Summary of Contents for SMART 800i6

  • Page 1 SMART Board® 800i6 Interactive whiteboard systems Configuration and user’s guide...
  • Page 2 © 2013 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

  • Page 3: Important Information

    Failure to follow the installation instructions shipped with your SMART product could result in personal injury and damage to the product. To reduce the risk of fire or electric shock, do not expose the SMART product to rain or moisture.
  • Page 4 I M P O R T A N T I N F O R M A T I O N Two people are required to mount your SMART product because it may be too heavy for one person to safely maneuver.
  • Page 5 Make sure an electrical socket is near your SMART product and remains easily accessible during use. Using your SMART product near a TV or radio could cause interference to the images or sound. If this happens, move the TV or radio away from the projector.

  • Page 6: Other Precautions

    Disconnect the product from its power source when it’s not used for a long period. Other precautions If you own a SMART product other than a SMART Board 880i6 and 885i6 series interactive whiteboard system, refer to the installation manual for your product for relevant warnings and maintenance instructions.
  • Page 7 150 pF probe (air discharge) Unmated connectors meet no malfunction or damage up to 4kV (both polarities) for direct (contact) discharge Cables All SMART Board 800i6 interactive whiteboard system cables should be shielded to prevent potential accidents and degraded video and audio quality. Conducted and radiated...

  • Page 9: Table Of Contents

    Contents Important information Safety warnings, cautions and important information Environmental requirements Chapter 1: About your interactive whiteboard system SMART Board 800i6 interactive whiteboard system features Included accessories Chapter 2: Installing your interactive whiteboard system Choosing a location Choosing a height Securing your interactive whiteboard system...
  • Page 10 C O N T E N T S Appendix A: Remotely managing your system through a network interface Web page management Simple Network Management Protocol (SNMP) Appendix B: Remotely managing your system through an RS-232 serial interface Connecting your room control system to the ECP Projector programming commands Appendix C: Remote control code definitions Appendix D: Hardware environmental compliance...

  • Page 11: Chapter 1: About Your Interactive Whiteboard System

    Eraser VGA connection kit SMART Board 800i6 interactive whiteboard system accessories RCA connector pod Your SMART Board 800i6 interactive whiteboard system combines the following components: SMART Board 800 series interactive whiteboard Wall-mounted, short-throw SMART UF70 or SMART UF70w projector Accessories and optional equipment This chapter describes the features of your interactive whiteboard and provides information about product parts and accessories.

  • Page 12: Smart Board 800I6 Interactive Whiteboard System Features

    DVD/Blu-ray™ players, VCRs, document cameras and digital cameras, and can project media from these sources onto the interactive screen. When you use SMART software with your SMART Board 800i6 interactive whiteboard system, you can write or draw over the projected computer image in digital ink using a pen tray pen or your finger, and then save these notes to a .notebook file or directly into any Ink Aware application.

  • Page 13: Smart Uf70 Or Smart Uf70W Projector

    A security cable lock feature that enables you to lock your interactive whiteboard to help safeguard it from theft For more information about your SMART Board interactive whiteboard, see the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817). SMART UF70 or SMART UF70w projector The SMART UF70 or SMART UF70w projector system includes a...

  • Page 14: Included Accessories

    C H A P T E R 1 About your interactive whiteboard system A secure mounting and installation system that includes the following: An optional projector padlock ring to prevent removal of the projector from the boom Accessory mounting hardware for solid masonry or framed wall installations kit part number 1007416 Templates and instructions for positioning the system safely Projector information...

  • Page 15: Eraser

    SMART Board 800i6 interactive whiteboard system accessories The following accessory is included with SMART Board 800i6 interactive whiteboard systems. RCA connector pod The RCA connector pod includes two RCA jacks for dual-channel audio input and one for composite video input.

  • Page 17: Chapter 2: Installing Your Interactive Whiteboard System

    Securing the projector to the boom Routing the cables Installing SMART software Consult the SMART Board 800i6 interactive whiteboard system installation document included with your product for instructions on how to install and secure your system. I M P O R T A N T Use the SMART Board 800i6-SMP interactive whiteboard system installation guide...

  • Page 18: Choosing A Location

    Choosing a height SMART includes a mounting template with each interactive whiteboard system. If you lose this template, contact your authorized SMART reseller. Using this template ensures that you can do the following: Mount the projector at a safe height for head space clearance, while maintaining enough space for airflow and installation access above the unit.

  • Page 19: Securing Your Interactive Whiteboard System

    This section explains how to secure the different components of your interactive whiteboard system. Locking the pen tray to your interactive whiteboard To learn how to lock the pen tray to your interactive whiteboard, see the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817).

  • Page 20: Installing Smart Software

    Download SMART software from smarttech.com/software. These web pages list the minimum hardware requirements for each software version. If SMART software is already installed on your computer, take this opportunity to upgrade your software to ensure compatibility.

  • Page 21: Chapter 3: Using Your Interactive Whiteboard System

    Chapter 3 Using your interactive whiteboard system Using your projector Using your remote control Replacing the remote control battery Using the remote control buttons Adjusting projector settings Focusing the image Adjusting the image Projector connection diagram Using your interactive whiteboard Using the Extended Control Panel (ECP) Using the RCA connector pod This chapter describes the basic operation of your interactive whiteboard system and explains how to...

  • Page 22: Replacing The Remote Control Battery

    C H A P T E R 3 Using your interactive whiteboard system Replacing the remote control battery Follow this procedure to replace the remote control battery. W A R N I N G Reduce the risk associated with a leaking battery in the projector’s remote control by following these practices: Use only the specified CR2025 coin-cell battery.

  • Page 23: Using The Remote Control Buttons

    C H A P T E R 3 Using your interactive whiteboard system Using the remote control buttons The projector remote control enables you to access on-screen menus and change projector settings. Use the Power button on the remote control or ECP to put the projector into Standby mode or to turn it on.

  • Page 24: Adjusting Projector Settings

    Keep your remote control in a safe place because there is no other way to access menu options. Setting Notes Image Adjustment menu Display Mode Indicates the projector’s display The default is SMART Presentation. output (SMART Presentation, Bright Room, Dark Room, sRGB and User). Brightness Adjusts projector brightness The default is 50.
  • Page 25 V-Position Moves the vertical position of Don’t adjust this setting unless you’re advised the source video up or down to by SMART Support. from -5 to 5 (relative to the Apply this setting only after you make all boom projected image).
  • Page 26 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Projector Functions menu Auto Signal Enables or disables signal The default is off. Detect searching of input connectors. Select On to have the projector continuously switch inputs until it finds an active video source.
  • Page 27 User Startup Screen, Preview displayed. Startup Screen), or Image SMART displays the default SMART logo on a Alignment Screen. blue background. Capture User Startup Screen closes the on- screen display menu and captures the entire projected image.
  • Page 28 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Network menu Network and Activates the projector’s RJ45 VGA Out connector and network features. Status Displays the current network The default is off. status (Connected, Disconnected or Off). DHCP Displays the status of the The default is on.
  • Page 29 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Group Name Displays the projector’s You can set the projector’s workgroup name workgroup name as set by an using the remote management features (see administrator (maximum 12 Remotely managing your system through a characters).

  • Page 30: Focusing The Image

    C H A P T E R 3 Using your interactive whiteboard system Setting Notes Resolution Displays the projector’s most If there is no current video input source signal, recently detected video source this setting displays the last known source signal resolution and refresh signal image resolution and refresh rate.

  • Page 31: Adjusting The Image

    Using your interactive whiteboard system Adjusting the image Refer to these notes when adjusting the projected image as described in the included SMART Board 880i6 and 885i6 interactive whiteboard system installation guide (smarttech.com/kb/170499). While adjusting the projected image size, shape and location, use the projector’s default background so that you can see the full projected image clearly.
  • Page 32 C H A P T E R 3 Using your interactive whiteboard system 11 12 13 14 Connector Connect to: Power Mains power supply 7-pin mini-DIN ECP cable harness 4-pin power mini-DIN 5V/2A output ECP cable harness HDMI input High-definition video and audio source (not included) DB15F RGB video input (VGA 1) Primary computer (not included)

  • Page 33: Using Your Interactive Whiteboard

    For more information on this software, press the Help button on your interactive whiteboard pen tray. For additional resources, go to smarttech.com, click the flag icon to the right of the SMART logo, and then select your country and language. In the Support section of this website, you’ll find up-to-date, product-specific information, including setup instructions and specifications.
  • Page 34 C H A P T E R 3 Using your interactive whiteboard system N O T E S For more details on the status of your interactive whiteboard system, go to Determining your interactive whiteboard system’s status on page 46. Low Power mode reduces your interactive whiteboard system’s power consumption when it is in Standby mode.To set the projector system to enter Low Power mode automatically whenever it enters Standby mode, hold down the Power...

  • Page 35: Using The Rca Connector Pod

    Use an 800 series control cable (Part No. SBX8-CTRL) to convert the 4-pin connector to a DB9F RS-232 connector for use with a third-party room control system. You can purchase an SBX8 series control cable from your local SMART reseller. T I P...

  • Page 37: Appendix 4: Integrating Other Devices

    SMART UF70 projector SMART UF70w projector Connecting peripheral sources and outputs This appendix provides information on integrating your SMART Board 800i6 interactive whiteboard system with peripheral devices. Video format compatibility Your projector has a native video format and various video format compatibility modes. You can change image appearances for certain formats and compatibilities.

  • Page 38: Video Format Compatibility

    Video format compatibility The following tables list the projectors’ compatible VESA RGB video formats by resolution, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 14. SMART UF70 projector Resolution Mode Aspect ratio...

  • Page 39: Smart Uf70W Projector

    1680x1050 50 16:10 49.974 Letterbox 1680 x 1050 1680x1050 50 16:10 59.954 Letterbox 1920 x 1080 HD 1080 16:9 Letterbox SMART UF70w projector Resolution Mode Aspect Refresh Match Input Match Input ratio rate (Hz) appearance appearance (16:10 aspect (16:9 aspect ratio mode) ratio mode) 720 ×...
  • Page 40 C H A P T E R 4 Integrating other devices Resolution Mode Aspect Refresh Match Input Match Input ratio rate (Hz) appearance appearance (16:10 aspect (16:9 aspect ratio mode) ratio mode) 832 × 624 MAC 16" 74.55 Pillarbox Pillarbox 1024 ×...

  • Page 41: Hd And Sd Signal Format Compatibility

    The following tables list the projectors’ high definition (HD) and standard definition (SD) format signal compatibility, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 14. SMART UF70 projector Signal format Aspect ratio...

  • Page 42: Video System Signal Compatibility

    The 16:9 command delivers all video modes with black bands along the top and bottom edges of the screen. The Match Input command might deliver video modes with black bands along the top and bottom edges of the screen, depending on the input resolution. SMART UF70 projector Video mode Aspect ratio...

  • Page 43: Connecting Peripheral Sources And Outputs

    RCA connector pod are for input only. These RCA jacks don’t provide an output signal. To connect a laptop to a SMART Board 800i6 interactive whiteboard system 1. Connect a USB cable from the laptop computer to the ECP. 2. Connect a VGA cable from the laptop computer to the VGA connection kit.
  • Page 44 C H A P T E R 4 Integrating other devices To connect a DVD/Blu-ray player or similar device 1. If you have speakers installed, turn the volume dial on the ECP all the way down to prevent buzzing or popping. 2.

  • Page 45: Chapter 5: Maintaining Your Interactive Whiteboard System

    This chapter includes methods for properly cleaning and preventing damage to your SMART Board 800i6 interactive whiteboard system. Maintaining your interactive whiteboard For information on maintaining your interactive whiteboard, see the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817). Cleaning the projector W A R N I N G Cleaning a wall-mounted projector can result in a fall or injury.

  • Page 46: Focusing And Adjusting The Projector Image

    C H A P T E R 5 Maintaining your interactive whiteboard system Before you clean the projector, press the Power button twice on the ECP or remote control to put the system in Standby mode, and then allow the lamp to cool for at least 30 minutes. Do not spray cleaners, solvents or compressed air directly on the projector.

  • Page 47: Replacing The Projector Lamp

    Thoroughly clean the area around the projector, and discard any edible items placed in that area because they could be contaminated. Call your authorized SMART reseller for instructions. Do not attempt to replace the lamp. Replacing the lamp module in a wall-mounted projector can result in a fall or injury. Use caution when climbing a ladder, and consider removing the projector from the wall-mounting bracket to replace the lamp module.
  • Page 48 Wear protective eyewear while changing the lamp module. Failure to do so can cause injuries including loss of eyesight if the lamp shatters or bursts. Use only replacement lamp modules approved by SMART Technologies. Contact your authorized SMART reseller for replacement parts.
  • Page 49 C H A P T E R 5 Maintaining your interactive whiteboard system 5. Use a Phillips screwdriver to loosen the two captive screws from the bottom of the lamp module and gently remove lamp module. N O T E Don’t try to remove these screws.

  • Page 50: Resetting The Lamp Hours

    C H A P T E R 5 Maintaining your interactive whiteboard system 4. Replace the lamp cover. 5. Connect the power cable to the wall outlet. 6. Press the Power button once on the remote control or ECP to confirm that the projector is operating and that the lamp module is correctly installed.
  • Page 51 You’re unable to reset the Display Hour value because it’s the running total of hours the projector has been in use. 3. Press the Menu button on the remote control. The SMART UF70 Settings menu appears. 4. Select to confirm that Lamp Hour is reset to zero.

  • Page 53: Chapter 6: Troubleshooting Your Interactive Whiteboard System

    Chapter 6 Troubleshooting your interactive whiteboard system Before you start Locating status lights Locating serial numbers Determining your interactive whiteboard system’s status Resolving interactive whiteboard issues Resolving operation issues Resolving connection issues Resolving controller module issues Resolving projector issues Resolving projector errors Resolving image issues Loss of signal Partial, scrolling or incorrectly displayed image...

  • Page 54: Before You Start

    C H A P T E R 6 Troubleshooting your interactive whiteboard system This chapter provides basic troubleshooting information for your interactive whiteboard system. For issues not covered in this chapter, consult the SMART Support website (smarttech.com/support) or contact your authorized SMART reseller (smarttech.com/where). Before you start Before you troubleshoot your interactive whiteboard system or contact SMART Support or your...

  • Page 55: Locating Serial Numbers

    For more information, see the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817). The SMART UF70 or SMART UF70w projector serial number is located on the top of the projector. T I P You can also access the projector’s serial number through the on-screen menu. For more information, see Adjusting projector settings on page 14.

  • Page 56: Determining Your Interactive Whiteboard System's Status

    See Resolving operation issues on the next page. Solid green Solid green Flashing Correct Touch only SMART Product Drivers isn’t green installed or running correctly on the connected computer. Solid green Solid green None There’s an issue with the connections between the interactive...

  • Page 57: Resolving Interactive Whiteboard Issues

    Resolving interactive whiteboard issues This section includes information on resolving issues with your interactive whiteboard. For information not covered in this section, see the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817). Resolving operation issues Confirm that the camera system cable is connected to the back of the pen tray.

  • Page 58: Resolving Connection Issues

    If the controller module takes longer than 10 seconds to start up, disconnect the interactive whiteboard’s power cable, wait 10 seconds, and then reconnect it. If the issue persists, update the firmware as documented in the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817).

  • Page 59: Resolving Projector Issues

    If a video source signal is not detected, out of range of the projector’s support video modes or the signal is being switched to a different device or input, the projector doesn’t show a source signal and instead displays the SMART logo on a blue screen. smarttech.com/kb/170401...

  • Page 60: Partial, Scrolling Or Incorrectly Displayed Image

    5. If your projector still doesn’t show a source signal, contact your authorized SMART reseller. Partial, scrolling or incorrectly displayed image N O T E This procedure may vary depending on your version of Windows operating system or Mac OS X...

  • Page 61: Unstable Or Flickering Image

    1. Select Start > Control Panel. 2. Click Display, and then select Adjust resolution. 3. Verify that your display resolution setting is 1024 × 768 (SMART UF70 projector), 1280 × 800 (SMART UF70w projector in 16:10 aspect ratio mode) or 1280 × 720 (SMART UF70w projector in 16:9 aspect ratio mode).

  • Page 62: Frozen Image

    7. If the previous steps don’t resolve the issue, contact your authorized SMART reseller. Your image doesn’t fit the interactive whiteboard If you’re using a SMART UF70w projector with a wide screen interactive whiteboard, verify that you’re using the correct aspect ratio mode for the interactive whiteboard:...

  • Page 63: Unaligned Projected Image

    Adjust the projected image. See the included SMART Board 800i6 interactive whiteboard system installation guide (smarttech.com/kb/170TBA) and Adjusting the image on page 21.

  • Page 64: Resolving Ecp Issues

    You must display the source input’s video to play its audio through the connected speakers or audio system. 6. If the previous steps don’t resolve the issue, contact your authorized SMART reseller. Resolving network communication issues If you don’t have network access, perform the following procedure to troubleshoot your system.

  • Page 65: Accessing The Service Menu

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Accessing the service menu C A U T I O N To prevent tampering or unintentional changes, only system administrators should access the service menu. Do not share the service menu access code with casual users of your interactive whiteboard system.

  • Page 66: Transporting Your Interactive Whiteboard System

    3. Scroll to Exit, and then press Enter on the remote control to exit the projector service menu. Transporting your interactive whiteboard system Save your original SMART Board interactive whiteboard packaging so that it’s available if you need to transport your interactive whiteboard system. When required, repack it with all of the original packaging.

  • Page 67: Appendix A: Remotely Managing Your System Through A Network Interface

    E-mail alerts Password settings Simple Network Management Protocol (SNMP) This chapter includes detailed instructions on how to remotely manage your SMART Board 800i6 interactive whiteboard system settings through a network interface. Web page management You can access advanced setup features via the projector’s web page. This web page enables you to manage the projector from a remote location using any computer connected to your intranet.

  • Page 68: Accessing Web Page Management

    1. Start your Internet browser. 2. Type the IP address in the address line field, and then press ENTER. The SMART UF70 Projector Settings window appears. 3. Select the menu options in the left pane to access the settings on each page.
  • Page 69 French or Spanish, depending on television channel or media setup. Display Mode Adjusts the display output to SMART Presentation, Bright Room, Dark Room, sRGB and User modes so you can project images from various sources with consistent color performance: SMART Presentation is recommended for color fidelity.

  • Page 70: 1024 × 768 Xga 4:3

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Color Adjusts the Red, Green, Blue, Cyan, Magenta and Yellow colors on the projector from 0 to 100 to provide custom color and luminance output.
  • Page 71 Startup Screen Sets the type of startup screen to SMART or User. The SMART screen is the default SMART logo on a blue background. The User screen uses the saved picture from the Capture User Startup Screen function.

  • Page 72: Control Panel Ii

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description HDMI Assigns an alternative name to your HDMI input, which appears when you select the HDMI input. Emergency Alert Turns the on-screen alert broadcast message on or off. When enabled, this message displays over the current projected image.

  • Page 73: E-Mail Alerts

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Displays or allows you to set the projector’s IP address for your network’s primary domain name server in values between 0.0.0.0 and 255.255.255.255.

  • Page 74: Password Settings

    Submit. N O T E The projector sends an alert e-mail (SMART Alert) to your e-mail address. Click E-mail Alert Test to confirm that your e-mail address and SMTP server settings are correct by sending a test e-mail (SMART Alert-Test Mail).

  • Page 75: Simple Network Management Protocol (Snmp)

    MIB files link in the Hardware section for the SMART UF70 projector. The SNMP agent in your projector supports SNMP version 1 or 2. Upload the MIB file to your SNMP management system application, and then use it as described in your application’s user guide.

  • Page 77: Appendix B: Remotely Managing Your System Through An Rs-232 Serial Interface

    Command/response definitions Field Definitions Command/response definitions Field definitions Command/response definitions This appendix includes detailed instructions on how to set up your computer or room control system to remotely manage your SMART Board 800i6 interactive whiteboard system settings through an RS-232 serial interface. smarttech.com/kb/170401...

  • Page 78: Connecting Your Room Control System To The Ecp

    On projectors with the RS-232 connector labeled Control 9v (rather than Control), pin 1 functions as a +9V DC power source only for use with older model ECPs such as the ones shipped with SMART UF55 projectors. Serial interface settings The serial interface of the projector acts as a Data Communications Equipment (DCE) device and its settings can’t be configured.

  • Page 79: Projector Programming Commands

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface 3. Configure your serial interface settings using the values from the table in the previous section, and then press ENTER. An “invalid cmd= ? for help” message appears, and the > character appears as a command prompt on the following line.

  • Page 80: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field definitions Field Possible values Description This is an optional field and can simply be off option skipped. When specified, it forces the device to shutdown –...

  • Page 81: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Responds when powered off get usb1source usb1source=[current] set usb2source [target] usb2source=[current] get usb2source usb2source=[current] Field definitions Field Possible values Description The input source to switch to.

  • Page 82: Video Control

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible values Description target usb2source = VGA1 Value to set the usb2 switch enabled source to. = HDMI1 Note that this can not be the same as the = Disabled usb1source.

  • Page 83: Command\Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command\response definitions Command Response Responds when powered off set displaymode [target] displaymode =[current] get displaymode displaymode =[current] set brightness [target] brightness=[current] get brightness brightness=[current] set contrast [target] contrast=[current]...

  • Page 84: Field Definitions

    = [target] get displayhide displayhide = [target] Field definitions Field Possible values Description target displaymode = SMART The ranges must match the OSD ranges Presentation = Bright room = Dark room = sRGB = User current displaymode SMART...
  • Page 85 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target brightness + val Specifying + or – will cause brightness to be – val incremented or decremented from it’s current = 0 ~ 100 value.
  • Page 86 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target hposition + val The ranges must match the OSD ranges – val = 0 ~ 100 current hposition = 0 ~ 100 The ranges must match the OSD ranges target vposition + val...
  • Page 87 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target magenta + val The ranges must match the OSD ranges – val = 0 ~ 100 current magenta = 0 ~ 100 The ranges must match the OSD ranges target yellow + val...

  • Page 88: Audio Control

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface All video commands should also have an optional source specification. >set brightness = 65 brightness=65 This sets the brightness of the specified source. >set brightness vga1 = 65 brightness vga1 = 65 This sets the brightness of the vga1 regardless of if the projector is on this source or not.

  • Page 89: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field definitions Field Possible values Description Specifying + or – will cause volume to be target volume + val incremented or decremented from it’s current –...
  • Page 90 A P P E N D I X B Remotely managing your system through an RS-232 serial interface >get volume volume=0 >set volume=-10 volume=-10 >set volume +5 volume=-5 >set volume -15 volume=-20 smarttech.com/kb/170401...

  • Page 91: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Network information Various network information. Command/response definitions Command Response Powered off get netstatus netstatus =[current] set network network=[current] get network network=[current] set dhcp [target] dhcp =[current] get dhcp dhcp =[current]...
  • Page 92 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target network Enable/Disable network module and VGA output current dhcp = on Enable/Disable for DHCP Networking = off target dhcp Enable/Disable for DHCP Networking current ipaddr...

  • Page 93: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface System Information Various system information. Command/response definitions Command Response Powered off set autosignal [target] autosignal =[current] get autosignal autosignal =[current] set lampreminder lampreminder = [target] [current]...
  • Page 94 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Powered off set startupscreen startupscreen = [target] [current] get startupscreen startupscreen = [current] set restoredefaults restoredefaults= [current] get lamphrs lamphrs=[current] set lamphrs [target] lamphrs=0 get syshrs...

  • Page 95: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Powered off get modelnum modelnum=UF70, or Return the actual model of the projector UF70w set videomute [target] videomute=[current] get videomute videomute=[current] set vgaoutnetenable vgaoutnetenable =...
  • Page 96 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target highbrightness = on The ranges must match the OSD ranges = off current highbrightness The ranges must match the OSD ranges target autopoweroff + val The ranges must match the OSD ranges...
  • Page 97 = front The ranges must match the OSD ranges = ceiling = rear = rear ceiling target startupscreen = smart The ranges must match the OSD ranges = usercapture = preview current startupscreen = smart The ranges must match the OSD ranges...
  • Page 98 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current fwverecp [?].[?].[?].[?] ECP Version current language Arabic Must match the OSD setting Czech German Danish Greek English Spanish Finnish French...
  • Page 99 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target contactinfo = User String current contactinfo User String current modelnum User String Must match the OSD screen current videomute The ranges must match the OSD ranges target videomute...

  • Page 100: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Service Information These are commands used in servicing and manufacturing of the unit. They should be hidden from the user during normal operation. Command/response definitions Command Response...

  • Page 101: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Definitions Field Possible Values Description current displayhour 0 ~ 20000 Current Display hours. target testpattern Set the test pattern to pattern number X (1~4). If only one test pattern, call it test pattern 1.
  • Page 102 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current factoryreset = true Set to true only if a factor reset is about to occur. = false target highspeedfan = high The ranges must match the OSD ranges...

  • Page 103: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Engineering commands These commands are to be part of the RS232 list but not viewable by the “?” command Command/response definitions Command Response Powered off set dbmsgon [target]...
  • Page 104 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current temperature To get system temperature while power on. target While setting to on, while high speed fan mode temperaturereport turn on, will send out system temperature each 5 seconds...

  • Page 105: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Additional commands These commands & behaviors are to provide backward compatibility for legacy control interfaces. Command/response definitions Command Execute command: Behaviour set input=VGA1 set input=VGA1 switch to VGA1 port set input=HDMI...
  • Page 106 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Unknown command If an unknown command is received, the projector must identify this to the user. This is accomplished by sending the following response back to the user. Please note that there is a space between “Invalid”...

  • Page 107: Appendix C: Remote Control Code Definitions

    Appendix C Remote control code definitions IR signal format: NEC1 Repeat Vendor code Key code format Byte 1 Byte 2 Byte 3 Byte 4 Input Power ( ) Menu Up ( ) Left ( ) Enter ( ) Right ( ) Down ( ) Hide Volume up ( )

  • Page 109: Appendix D: Hardware Environmental Compliance

    Appendix D Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives) Electrical and electronic equipment and batteries contain substances that can be harmful to the environment and to human health.

  • Page 111: Index

    Index DNS 63 document cameras 33 drywall 8 3.5 mm audio connectors 22 dust v DVDs 34 accessories included 4 e-mail alerts 63 alarms 62 aspect ratios 27-28, 31-32, 61 about 4 Aspect ratios 17 lights and status of 54 audio using 23 connections for 22...
  • Page 112 I N D E X image native video formats 27 adjusting 21 network communication 22, 54, 62 focusing 20 resolving issues with 49 input selection 24, 61 installation original packaging 56 choosing a height 8 choosing a location 8 securing 9 interactive whiteboard passwords 55, 64 about 2...
  • Page 113 45 web page management 57 signal loss 49 WEEE and Battery Directives 99 SMART Board interactive whiteboard See interactive whiteboard whiteboard See interactive whiteboard SMART UF70 or UF70w projector See projector SMTP 64 XGA support 28 SNMP 65 sound See audio startup screen 61...
