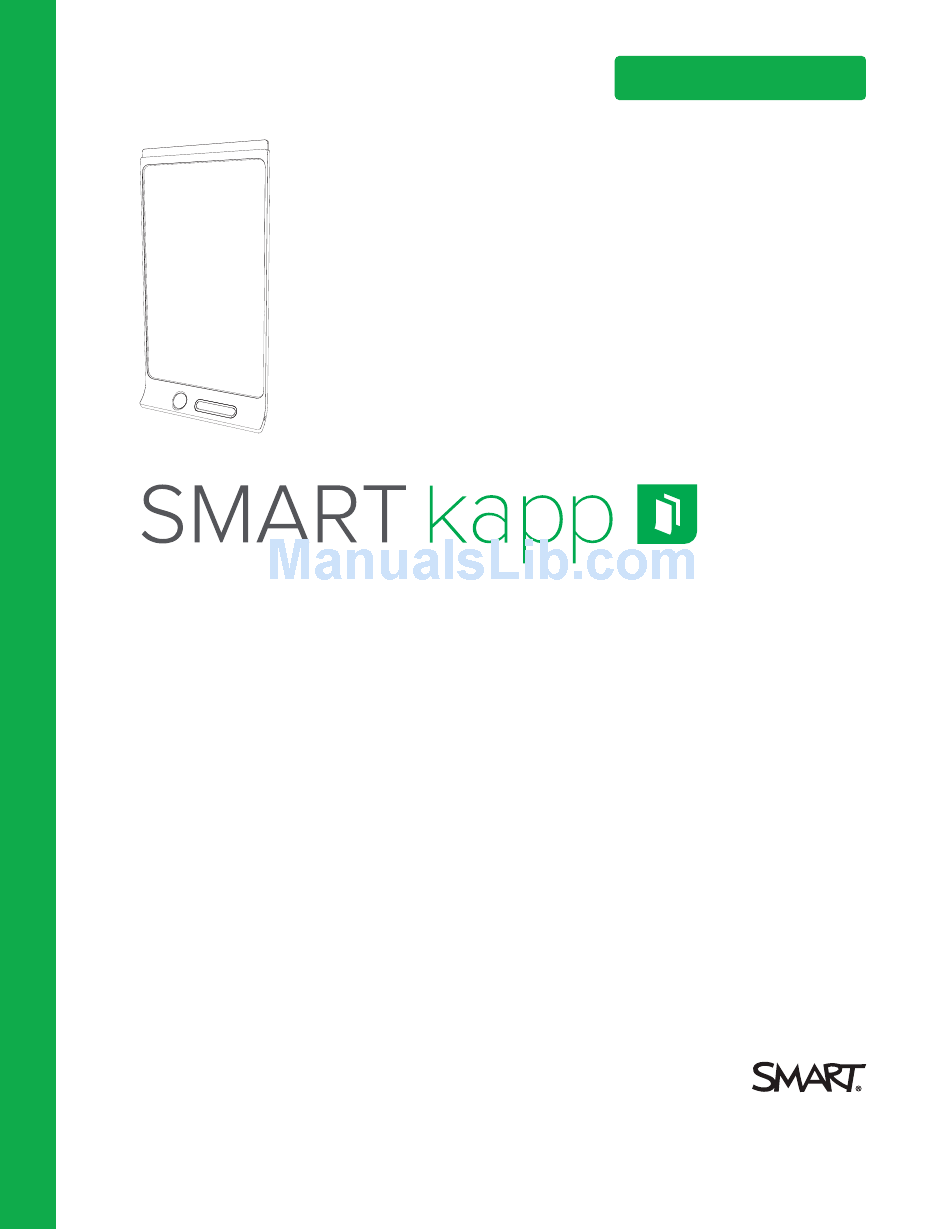

- Page 1 Help us make this document better smarttech.com/docfeedback/170769 USER’S GUIDE FOR MODEL KAPP42...
- Page 2 Google Inc. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. The Bluetooth word mark is owned by the Bluetooth SIG, Inc. and any use of such marks by SMART Technologies ULC is under license.
-
Page 3: Important Information
Failure to follow the installation instructions shipped with your SMART product could result in personal injury and product damage which may not be covered by your warranty. To reduce the risk of fire or electric shock, do not expose the SMART product to rain or moisture. -
Page 5: Table Of Contents
Contents Important information Chapter 1: Welcome About your capture board About this guide Supported browsers Other documentation and resources Chapter 2: Using your capture board Writing on your capture board Connecting your mobile device to your capture board Sharing and saving your notes Chapter 3: Using a premium subscription Upgrading to a premium subscription Setting premium subscription sharing preferences... -
Page 7: About Your Capture Board
(QR) code or by tapping the Near Field Communication (NFC) tag. When you first connect your mobile device, you’re directed to the Apple App Store or Google Play™ store to download the SMART kapp app. After you download and install the app, you can use it to connect to your capture board and share content with others. -
Page 8: Chapter 1 Welcome

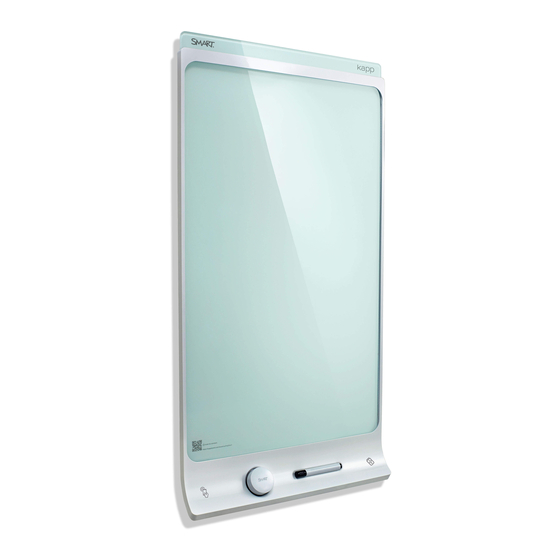

CHAPTER 1 WELCOME The SMART kapp capture board product consists of the following components: Capture board Dry erase markers and eraser Mounting bracket and hardware SMART kapp app Capture board The capture board features SMART’s proprietary DViT® (Digital Vision Touch) technology on a 42" (107 cm) writing surface. DViT technology captures the notes you make on the capture board using the dry erase markers and eraser. -
Page 9: About This Guide
CHAPTER 1 WELCOME SMART kapp app The SMART kapp app enables you to connect your Apple or Android mobile device to your capture board and then do the following: View notes you write on your capture board on your mobile device Share your notes with others... -
Page 10: Other Documentation And Resources
Tutorial and Help When you first start the SMART kapp app on your mobile device, a tutorial opens. This tutorial explains how to connect your mobile device to your capture board and share and save your notes (see Installing the app and starting it for the first time on page 10). -
Page 11: Support Center And Knowledge Base
CHAPTER 1 WELCOME Support center and knowledge base The Support center (smarttech.com/support) includes documentation and a knowledge base that you can refer to when performing maintenance on your capture board or troubleshooting issues with your capture board. smarttech.com/kb/170769... -
Page 13: Chapter 2: Using Your Capture Board
Chapter 2 Using your capture board Writing on your capture board Connecting your mobile device to your capture board About QR codes and NFC Installing the app and starting it for the first time Connecting your mobile device using the app Viewing notes on your mobile device Disconnecting your mobile device Sharing and saving your notes... -
Page 14: Writing On Your Capture Board
CHAPTER 2 USING YOUR CAPTURE BOARD Writing on your capture board You can write and erase notes on your capture board like you do on a traditional dry erase board. Use the markers provided with your capture board to write or draw. Use the eraser provided with your capture board to erase notes. -
Page 15: About Qr Codes And Nfc
(recommended) NOTE Most of the SMART kapp app’s features are identical across iOS operating system software and Android operating systems. However, some features are available for only one of these operating systems. The remainder of the user’s guide highlights these features with the following... -
Page 16: Installing The App And Starting It For The First Time
Installing the app and starting it for the first time The SMART kapp app enables you to connect your mobile device to your capture board, view notes you write on your capture board on your mobile device and share and save your notes. You can install the app on your mobile device by scanning your capture board’s QR code or by tapping... -
Page 17: Connecting Your Mobile Device Using The App
Tutorial. Connecting your mobile device using the app After you install the SMART kapp app, you can use it to connect your mobile device to your capture board by QR code or by NFC. NOTE Some Android mobile devices require you to accept a pairing request to connect to the capture board. -
Page 18: Viewing Notes On Your Mobile Device
1. Enable NFC in your mobile device’s settings (if it isn’t already enabled). 2. Hold your mobile device near your capture board’s NFC tag The SMART kapp app starts and connects your mobile device to your capture board. Viewing notes on your mobile device When your mobile device and capture board are connected, you can view the notes you’ve... -
Page 19: Sharing And Saving Your Notes
Your capture board is outside of your mobile device’s Bluetooth communication range, which is approximately 33' (10 m). To manually disconnect your mobile device: In the SMART kapp app, press Close at the top left corner on your mobile device Hold Bluetooth on your capture board until it turns solid red. -
Page 20: Sharing Your Notes
NOTE You can share your notes only as long as the SMART kapp app is running on your mobile device and your mobile device is connected to your capture board. However, you can export saved snapshots of notes without connecting your mobile device to your capture board (see Sharing your notes above). -
Page 21: Saving Snapshots
CHAPTER 2 USING YOUR CAPTURE BOARD Saving snapshots To save a snapshot 1. Connect your mobile device to your capture board (see Connecting your mobile device using the app on page 11). 2. Press Capture on your capture board. Press Capture in the app. -
Page 22: Exporting Snapshots
CHAPTER 2 USING YOUR CAPTURE BOARD 3. Press a session’s row to view the snapshots saved for that session. The session’s snapshot library appears. 4. Press a snapshot’s thumbnail image to view it. You can use the zoom in, zoom out and pan gestures when viewing the snapshot (see Viewing notes on your mobile device on page 12). -
Page 23: Deleting Snapshots
CHAPTER 2 USING YOUR CAPTURE BOARD To export all snapshots saved in the current session 1. Save one or more snapshots in the current session (see Saving snapshots on page 15). 2. If you’re using an Apple mobile device, press Export , and then select Save to Camera Roll or Share as PDF. -
Page 24: Saving Snapshots Of Your Notes To A Usb Drive
CHAPTER 2 USING YOUR CAPTURE BOARD 3. Press the session containing the snapshot you want to delete. The session’s snapshot gallery appears. 4. Press the snapshot you want to delete. 5. Press Delete , and then press OK. To delete a previous session of snapshots 1. -
Page 25: Chapter 3: Using A Premium Subscription
Share snapshots as watermark-free PDFs and images Upgrading to a premium subscription To upgrade to a premium subscription 1. In the SMART kapp app for Android, press Menu and then Settings In the SMART kapp app for iOS, press Settings The Settings screen appears. -
Page 26: Setting Premium Subscription Sharing Preferences
CHAPTER 3 USING A PREMIUM SUBSCRIPTION 3. Press Monthly $1.99 or Yearly $19.99. NOTE Prices might vary by region. If using iOS, enter your password for the App Store. If using Android, enter your password for Google Play store. You receive an email receipt with details of your purchase. Setting premium subscription sharing preferences In Settings, you can set premium subscription sharing preferences. -
Page 27: Cancelling Your Premium Subscription
January 1 and cancel it on July 1, you’ll have access to the premium features of SMART kapp until December 31. On the following January 1, however, you aren’t charged the subscription fee. -
Page 28: Cancelling Your Subscription In Google Play Store
CHAPTER 3 USING A PREMIUM SUBSCRIPTION 6. Tap the SMART kapp app, then tap the subscription category. 7. To cancel your subscription, tap to turn Auto-Renewal off . Cancelling your subscription in Google Play store To cancel your subscription 1. Go to wallet.google.com... -
Page 29: Chapter 4: Maintaining Your Capture Board
Do not spray cleaner directly onto the capture board’s writing surface, reflective bezel or corner sensors. SMART recommends that you clean your capture board monthly to ensure optimal performance. Do not allow excess cleaner to flow onto the bezel’s reflective surfaces. -
Page 30: Cleaning Your Capture Board
CAUTION Disconnect your capture board from power before cleaning it. SMART recommends cleaning the corner sensors last in case the previous cleaning instructions leave debris on the sensors. The capture board uses digital sensors and reflective tape on the perimeter of the writing surface to digitally capture your writing. -
Page 31: Transporting Your Capture Board
Save your original packaging to repack your capture board if needed. This packaging was designed with optimal shock and vibration protection. If your original packaging isn’t available, you can purchase the same packaging directly from your authorized SMART reseller. CAUTION Transport your capture board only in original or replaced packaging. - Page 32 The following pens are not recommended for use with the capture board. BIC Great Erase Grip® dry erase markers Board Dudes® Liqui-Mark® Quartet® If you misplace the eraser, you can purchase a replacement from the Store for SMART Parts (see smarttech.com/Support/PartsStore). smarttech.com/kb/170769...
-
Page 33: Chapter 5: Troubleshooting Your Capture Board
Resolving hardware issues using the indicator lights Resolving app issues This chapter explains how to troubleshoot common issues with your capture board and the SMART kapp app. Resolving hardware issues using the indicator lights Your capture board includes four indicator lights in the bottom-right corner. When you first connect... - Page 34 Your capture board was previously running and the capture board is within the connected to a mobile device but the mobile device’s Bluetooth communication SMART kapp app on the mobile device isn’t range. running or your capture board is outside of the mobile device’s Bluetooth communication range.
-
Page 35: Resolving App Issues
Your capture board is connected to a USB drive or a mobile device. Resolving app issues The following are issues that you might encounter while using the SMART kapp app. Situation Troubleshooting You’re unable to connect your Ensure there are no other mobile devices mobile device to the capture board. - Page 36 Ensure the capture board’s cameras and bezel are board, your writing doesn’t appear in clean (see Cleaning your capture board on the SMART kapp app, or extra lines page 23). or other visual noise appear in the Ensure your hands, arms or loose clothing aren’t SMART kapp app.
-
Page 37: Appendix A: Hardware Environmental Compliance
Appendix A Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment (WEEE) Electrical and electronic equipment contain substances that can be harmful to the environment and to human health. - Page 40 SMART TECHNOLOGIES smartkapp.com smarttech.com/kb/170769...
