Installing the Light Kit

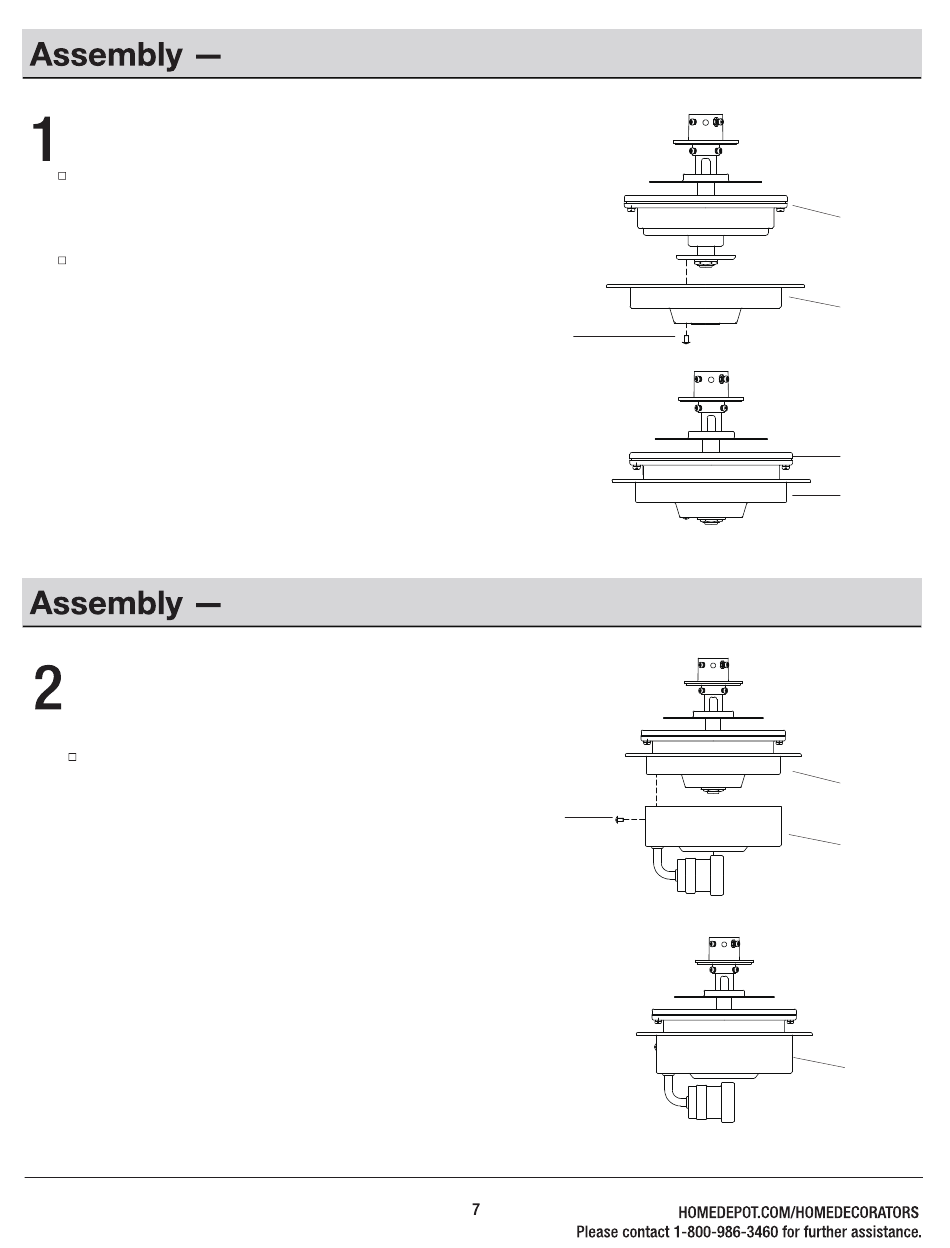

Installing the light kit plate

Remove one of the three screws (LL) from the fan motor
assembly (H) mounting ring and loosen, but do not remove,
the other two screws (LL).
Place the key holes from the light kit plate (I) over the two
screws (LL) previously loosened from the fan motor
assembly (H) mounting ring. Turn the light kit plate (I) until it
locks in place at the narrow section of the key holes. Secure
by tightening the two screws (LL) previously loosened and
the one screw (LL) previously removed.
Installing the Light Kit (continued)
Installing the light kit
Align holes in the light kit (J) and the light kit plate (I),
and secure with the mounting screws (LL) .
Ensure all the three mounting screws (LL) are tightened.
