Assembly -Hanging the Fan (continued)
12
Making the electrical connections
WARNING: To avoid possible electrical shock, ensure the
electricity is turned off at the main fuse box before wiring.
WARNING:
To avoid possible electrical shock, ensure the
electricity is turned off at the circuit breaker or main fuse box
before wiring.
WARNING:
Check to see that all connections are tight,
including the ground, and that no bare wire is visible at the
wire nuts, except for the ground wire.

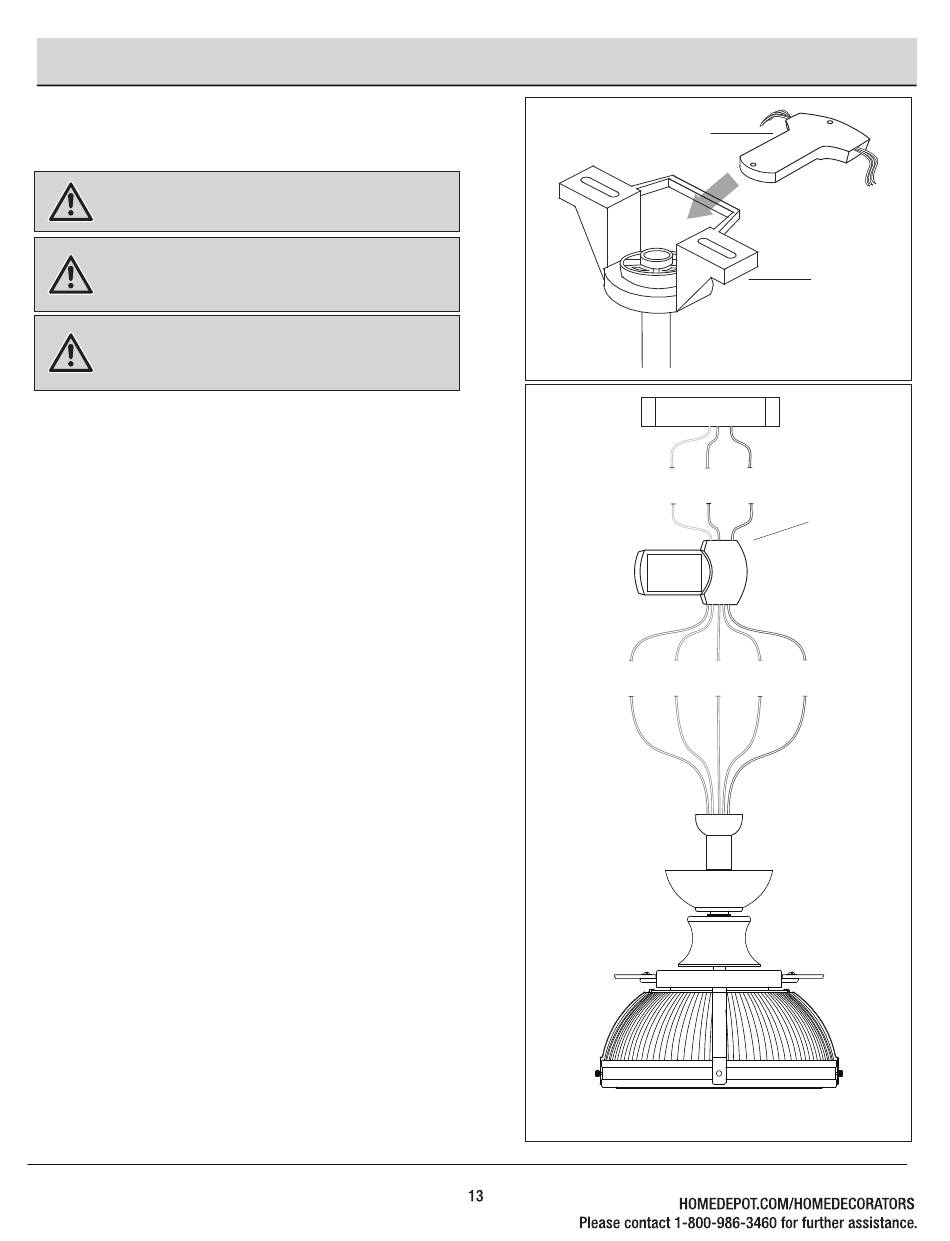

Insert the receiver (P) into the mounting bracket (B) with the flat
side of the receiver (P) facing the ceiling.
Follow the steps below to connect the fan to your house supply
wires. Secure the wire nuts supplied with your fan by wrapping the
connections with electrical tape.
Motor to Receiver Electrical Connections:
□
Connect the WHITE wire from the fan to the WHITE wire marked
"Light N" from the Receiver .
Connect the BLUE wire from the fan to the BLUE wire marked
"Light L" from the Receiver.
Connect the YELLOW wire from the fan to the YELLOW wire
marked "MOTOR 1" from the Receiver .
Connect the RED wire from the fan to the RED wire marked
"MOTOR 2" from the Receiver .
Connect the GREY wire from the fan to the GREY wire marked
"MOTOR 3" from the Receiver .
Note: Fan must be installed from a maximum distance of 40 feet
(12.2 m) from the transmitting unit for proper signal transmission
between the transmitting unit and the fan's receiving unit.
□
Receiver to House Supply Wires Electrical connections:
Connect the WHITE wire (Neutral) from the outlet box to the
WHITE wire marked "AC in N" from the receiver.
Connect the BLACK wire (Hot) from the outlet box to the BLACK
wire marked "AC in L" from the receiver.
If your outlet box has a GROUND wire (Green or Bare
□
Copper),connect this wire to the Hanger Ball and Hanger
Bracket and receiver Ground wires.
If your outlet box does not have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket and Receiver Ground Wire
together.
Secure wire connection with the plastic wire nuts (EE)
□
provided. Especially , for the ground wires, please use bigger wire
nut (EE) provided.
□
After all splices are made, check to make sure there are no
loose strands.
P
Outlet Box
White
Green
Black
White
Green
Black
Blue
White
Yellow
Red Grey
Blue
White Yellow
Red
B
P
Grey
