USE AND CARE GUIDE

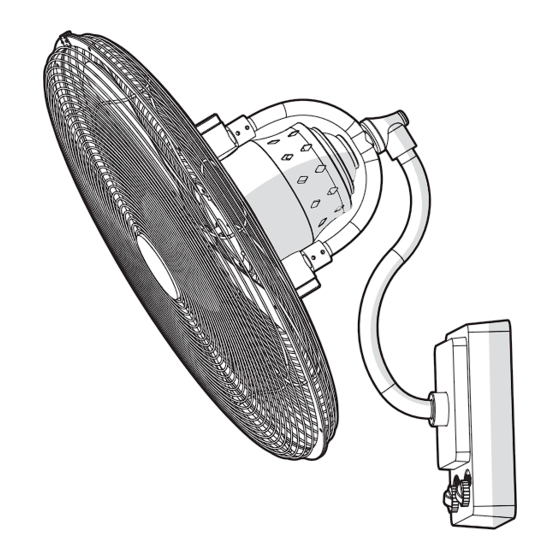

BENTLEY III 22 INCH WALL FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
1-800-986-3460
THANK YOU
THANK YOU
Item #1001 516 480
Item #1001 516 483
Model #AM183W-BN
Model #AM183W-NI
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection AM183W-NI
Summary of Contents for Home Decorators Collection AM183W-NI
- Page 1 USE AND CARE GUIDE BENTLEY III 22 INCH WALL FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Disassembling Your Fan ..........Safety Information ............Operation ..............Switch Operating Instructions ..........Warranty ................. User Servicing Instructions ............ Pre-Installation .............. Care and Cleaning ............Specifications ................Tools Required ................. Troubleshooting ............Hardware Included ..............Service Parts ............... -
Page 3: Safety Information
Safety Information READ AND SAVE THESE INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS WARNING: Do not insert foreign objects between rotating fan blades. WARNING: Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCD) that should not be removed. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Wood screw Thumb screw Rear guard screw (preassembled) Front guard screw (preassembled) Hex wrench Blade cover (preassembled) HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Motor head (preassembled) Blade (preassembled) Wall mounting bracket Front guard (preassembled) Rear guard (preassembled) -
Page 7: Installation
Installation Installing the wall mounting bracket to the wall CAUTION: Carefully open the packaging and take out items from styrofoam. Please lift the motor head with two hands by gooseneck arm and base, and DO NOT remove the plastic binder from the motor head until fan installation is completed. Removing the plastic binder from the motor head before or during installation will damage the oscillating mechanism. -
Page 8: Assembly
Assembly — Hanging the Fan Hanging the fan to the wall Removing the plastic binder from mounting bracket the fan assembly WARNING: Ensure the four slots in the back of the base NOTE: The plastic binder (JJ) must be removed before are completely engaged with four hooks (HH) on the mounting operating your fan. - Page 9 Assembly — Hanging the Fan (continued) Attach the plug to the wall outlet WARNING: If using this fan in a DAMP location, this fan must be connected to a supply circuit that is protected by a Ground Fault Circuit interrupter (GFCI) to reduce the risk of personal injury, electrical shock or death.
-
Page 10: Disassembling Your Fan
Disassembling Your Fan This fan comes with a pre-assembled rear guard (C), blade (D), and front guard (E) for your easy installation. Check that all screws are tight and securely in place. If you need to disassemble the fan for any reason such as cleaning, follow these steps below: □... -
Page 11: Operation
Operation SWITCH OPERATING INSTRUCTIONS SWITCH OPERATING INSTRUCTIONS WARNING: Do not manually move the fan head. Doing so will destroy the gears in the oscillating mechanism. It is recommended you test the fan before finalizing installation. Restore power to the circuit box. Test fan speeds with the wall control on the left side of fan assembly. -
Page 12: Care And Cleaning
Care and Cleaning Do not Do not □ Check the support connections, brackets, and blade □ Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some connections may become loose over time. -
Page 13: Service Parts
Service Parts Part Part Description Description Part Part Description Description Motor head (preassembled) Wood screw Wall mounting bracket Thumb screw Rear guard (preassembled) Rear guard screw (preassembled) Blade (preassembled) Front guard screw (preassembled) Front guard (preassembled) Hex wrench Blade cover (preassembled) HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. - Page 14 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
