USE AND CARE GUIDE

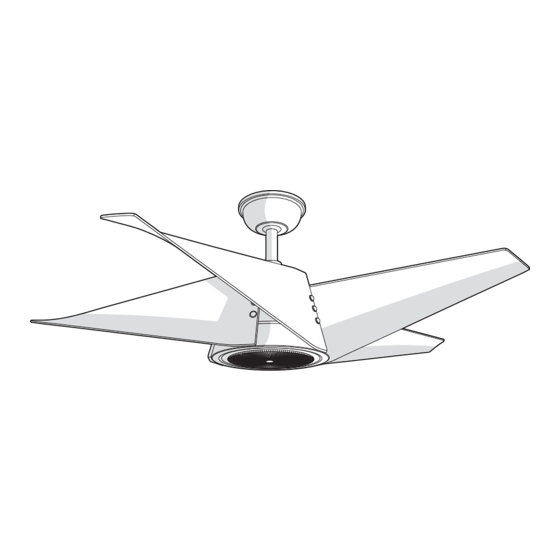

BROUGHTON 42 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
1-800-986-3460
THANK YOU
THANK YOU
Item #1003 236 523
#1003 236 521
Model #YG671-BN
#YG671-EB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection BROUGHTON
Summary of Contents for Home Decorators Collection BROUGHTON
- Page 1 Model #YG671-BN #YG671-EB USE AND CARE GUIDE BROUGHTON 42 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Remote Control Operating Instructions ........Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Service Parts ..............Tools Required ................. Hardware Included .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting screw with lock washer (preassembled) Blade attachment screw with flat washer and rubber washer Clevis pin (preassembled) Cotter pin (preassembled) Cross pin (preassembled) Setscrew (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Light kit mounting plate Canopy 14 watt LED Light kit Hanger ball/downrod assembly Light cover Coupling cover Receiver Fan motor assembly... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°... -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (EE) and clevis pin (DD), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (HH) from the motor collar. □ Remove the two non-slotted canopy mounting screws with lock washers (BB) from the canopy (C), and □... -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: The tab in the ring must rest in the groove of WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D). - Page 10 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control NOTE: The frequencies on your receiver and remote control have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and remote control are set to the same frequency.
- Page 11 Assembly — Hanging the Fan (continued) Making the electrical connections Ground conductor Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: Do not use with a wall light dimmer switch.
- Page 12 Assembly — Hanging the Fan (continued) Installing the canopy WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place. WARNING: The locking slots of the canopy (C) are provided only as an aid to mounting.
-
Page 13: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the fan blades WARNING: To reduce the risk of personal injury, do not bend the blades (G) while installing, balancing the blades (G), or cleaning the fan. WARNING: Do not insert foreign objects between rotating fan blades (G). -
Page 14: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and light cover □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (II) from the mounting ring (SS) and loosen power by turning off the circuit breaker or removing the fuse the other two screws. -
Page 15: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS - Press and release the button to turn the fan on or off. - Press and release 1 time - turns the fan on high speed. - Press and release 2 times - turns the fan on medium speed. - Press and release 3 times - turns the fan on low speed. -
Page 16: Reverse Switch Operating Instructions
Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the surface of the motor housing. Slide the switch to the left for warm weather operation. Slide the Reverse switch switch to the right for cool weather operation. NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. -
Page 17: Troubleshooting
Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 11. Problem Problem Solution Solution □ Check the main and branch circuit fuses or breakers. □... -
Page 18: Service Parts
Service Parts Part Part Description Description Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting screw with lock washer (preassembled) Canopy Blade attachment screw with flat washer and rubber washer Hanger ball/downrod assembly Clevis pin (preassembled) Coupling cover Cotter pin (preassembled) Fan motor assembly... - Page 19 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
