We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE

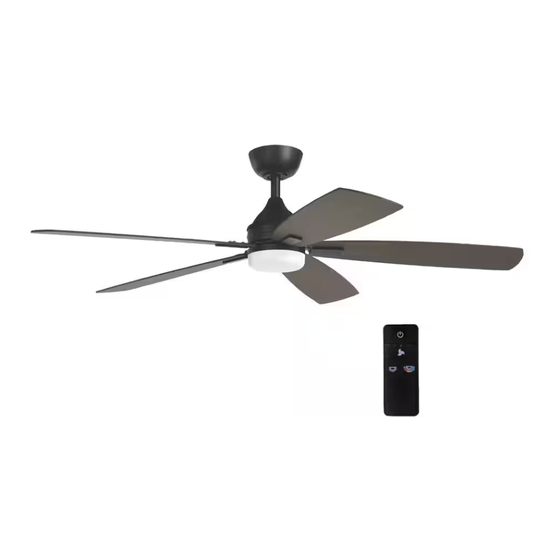

BECKFORD 52 IN. CEILING FAN
call Home Decorators Collection Customer Service
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
THANK YOU
Item #1006 878 809
1006 878 810
Model #YG630-MBK
YG630-BN
Advertisement
Related Manuals for Home Decorators Collection BECKFORD
Summary of Contents for Home Decorators Collection BECKFORD
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw with ber washer 23A 12V battery Extension cord...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade arm Canopy Blade Canopy bottom cover (preassembled) Medallion Hanger ball/downrod assembly 20W LED Light kit assembly Coupling cover Receiver Fan motor assembly Remote control HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of re, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 7: Assembly
Assembly Preparing the canopy Preparing the motor Remove the canopy bottom cover (C) from the canopy (B) by Remove the cotter pin (FF) and clevis pin (GG), and loosen turning the canopy bottom cover (C) counterclockwise. the two collar setscrews (HH) from the motor collar. Remove the mounting bracket (A) from the canopy (B) by Loosen setscrew (II) located in the hanger ball (JJ), lower the removing the non-slotted canopy mounting screw (EE) from... - Page 8 Assembly — Hanging the Fan Installing the mounting bracket to the Hanging the fan to the mounting electrical box bracket WARNING: The tab in the ring must rest in the groove of WARNING: To reduce the risk of re, electric shock or other the hanger ball/downrod assembly (D).
- Page 9 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control NOTE: The frequencies on your receiver and remote control have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and remote control are set to the same frequency.
- Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: Check to see that all connections are tight, Black White conductor including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. WARNING: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
- Page 11 Assembly — Hanging the Fan (continued) Installing the canopy Attaching the canopy bottom cover NOTE: Adjust the canopy mounting screws (EE) as necessary WARNING: Make sure the tab on the mounting bracket (A) until the canopy (B) and canopy bottom cover (C) are snug. properly sits in the groove in the hanger ball (D) before attaching the canopy (B) to the mounting bracket (A) by turning the canopy housing until it drops into place.
- Page 12 Assembly — Attaching the Fan Blades Attaching the fan blades WARNING: To reduce the risk of personal injury, do not bend the blade arms (G) while installing, balancing the blades (H), or cleaning the fan. Do not insert foreign objects between rotating fan blades (H).
-
Page 13: Operation
Operation Power ON/OFF: Press and release the power button to turn the fan and light on or off. Fan speed: LEDs on the fan speed button will illuminate to the corresponding speed. Press and release 1 time: turns the fan on high speed. Press and release 2 times: turns the fan on medium speed. - Page 14 Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation. NOTE: Wait for the fan to stop before reversing the direction Reverse switch of the blade rotation.
-
Page 15: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 16 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
