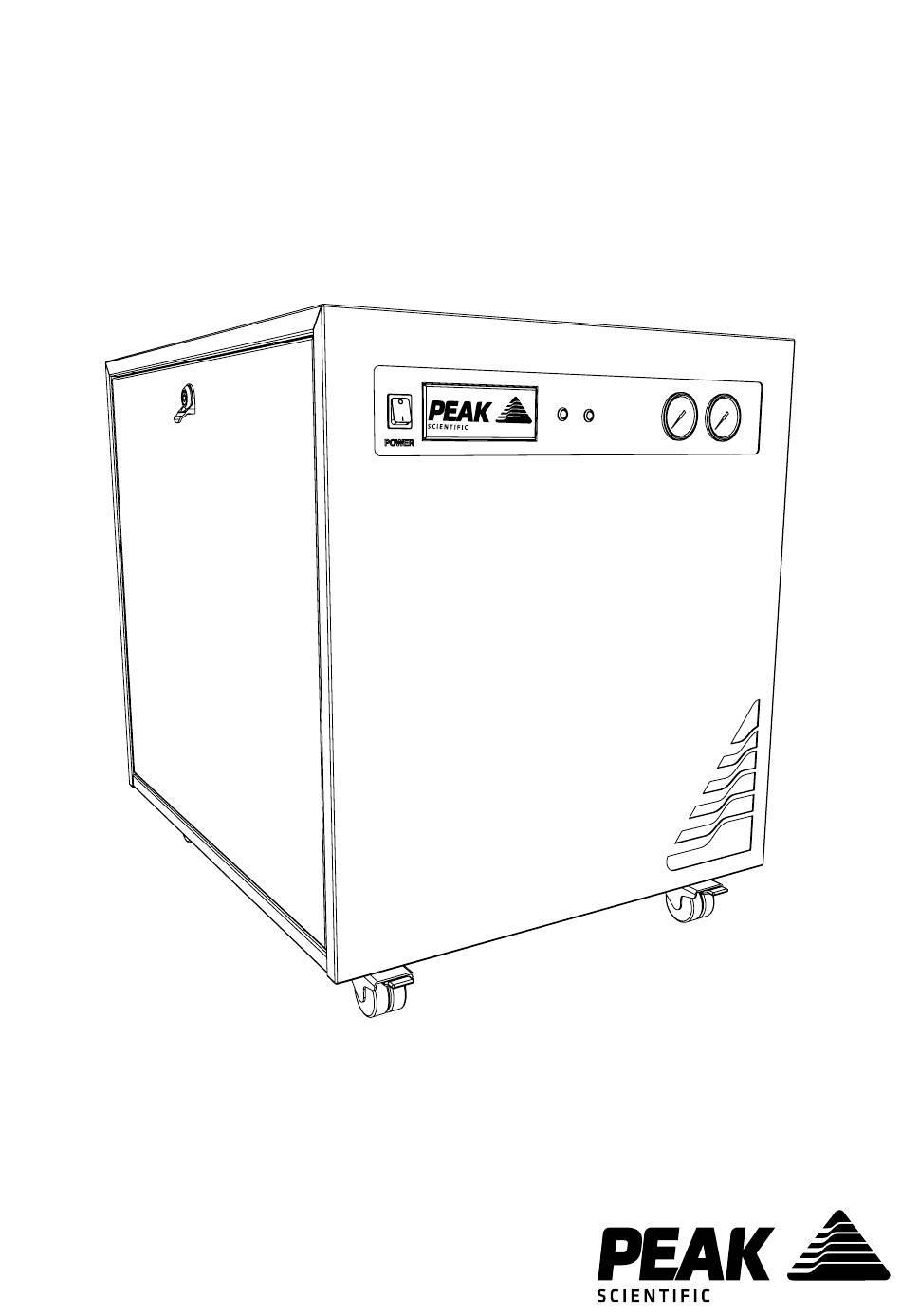

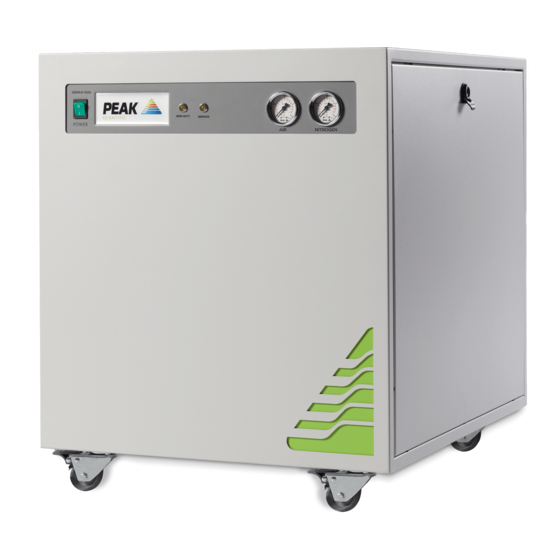

- Page 1 Genius 1025 Installation Guide Genius1025 Installation Guide Rev 4 PN IG-0039 RSID 2858 EN 21/7/22...
-
Page 2: Change History
This document is intended to be used only as a Quick Start Guide, to facilitate safe and correct installation and initial configu ation of your Peak Scientific gas gene ator. For more extensive user operation directions, we recommend you download the User Manual from the website. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically ecommended by Peak Scientific, the user mu t ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit US Mains Cable C19 6-15 04-1024 8mm Hex Key 00-0007 Flow Control SIlencer 02-1096 ¼” Compression Fitting 02-4421 2x3m UK Mains Cable C19 04-1025 ¼” PTFE Tubing 00-1266 ¼” - 6mm Push Fit Fitting 02-4600 EU Mains Cable C19 04-1026 6mm OD x 4mm ID PE 00-1282 Page 4... - Page 5 Unpack the generator from the shipping crate and position on a fl t surface, in desired area. 00-0007 First remove the compressor transit brackets. These can be accessed by removing the generator side panels. Starting with the left hand side panel, use the 8mm Hex Key 00-0007, and turn the lock 90° to the right. Page 5...
- Page 6 Once unlocked remove the left hand side panel, ensuring you disconnect the earth lead located in the lower middle of the panel. The transit bracket is located below the compressor and has a sticker on it stating ‘Remove before use’. To remove the transit bracket, remove the four screws as indicated, then slide the bracket out from underneath the compressor.
- Page 7 Follow the same process to remove the right hand side panel. Repeat step 4 to remove the right hand side transit bracket. Page 7...
- Page 8 02-4600 02-1096 Select the ¼”- 6mm Push Fit Fitting 02-4600 and attach to the Drain port at the rear of the generator. Attach the two Flow Control Silencer 02-1096 fittings o the Nitrogen and Dry Air Ports. 00-1282 Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600. Fit the other end of the tubing to a suitable drain connection or container.
- Page 9 04-1024/04-1025/04-1026 Select the appropriate IEC 60320/C19 mains cable from the fittings kit and plug the cable into the mains input at the rear of the generator. CAUTION 230V 230VAC 50/60Hz Plug the mains cable into the corresponding 230VAC 50/60Hz single phase power supply.
- Page 10 Switch the generator power ON using the switch on the front panel. Check the Generators internal voltmeter. This will measure and display the mains voltage that is being supplied to the generator. Note the displayed voltage. If the voltage is 219V or less, we would highly recommend fitting a t ansformer. This can be ordered directly from Peak.
- Page 11 Switch the generator OFF using the switch on the front panel. CAUTION Remove the mains cable completely from the power supply. Page 11...
- Page 12 Re-attach both side panels to the generator, ensuring the earth leads are re- connected and the locks are secured. CAUTION The mains power supply can now be re-connected. Page 12...
- Page 13 Again, Switch the generator power ON using the switch on the front panel. minutes Leave the generator switched on for a period of 30 minutes to purge the system. Page 13...
- Page 14 After 30 minutes of running, the generator can be turned OFF. Allow the stored gas in the internal tanks to dissipate. The purge is now complete. Once the pressure gauges on the front of the generator read 0, the silencer fittings can be emoved from the Nitrogen and Air ports. Page 14...
- Page 15 02-4421 Select the ¼” Compression Fittings 02-4421 and connect to the NITROGEN and AIR ports. 00-1266 Attach the ¼” PTFE tubing 00-1266 to the fittings ttached to the NITROGEN and AIR ports and connect to the corresponding gas inlets of your instrument. Page 15...
- Page 16 Switch the generator power ON using the switch on the front panel. The pressure gauges will again gradually increase to the factory set pressures. Page 16...
- Page 17 CONGRATULATIONS Your Peak Scientifi gas generator is now fully installed. operational and ready to supply gas on demand to your instrument. Page 17...
-
Page 18: General Notes
General Notes Electrical requirements are 230VAC nominal +/- 10% depending on chosen model. However, running continuoulsy at voltages outwith this is not recommended. Extended periods at extremes can have a detrimental effect on the operation and life of the Generator. The PTFE tube supplied in the fittings kit is o allow the generator to be installed adjacent to the instrument it is supplying. - Page 19 See our enclosed Peak [Protected] leaflet or further information. Important! You have 1 month to register your Peak Scientific p oduct from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immedi tely by emailing warranty@peakscientific com.
- Page 20 User Manual for your gas generator. Peak Scientific has highly t ained, fully certified Field Servi e Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers.
