QUICK-START GUIDE

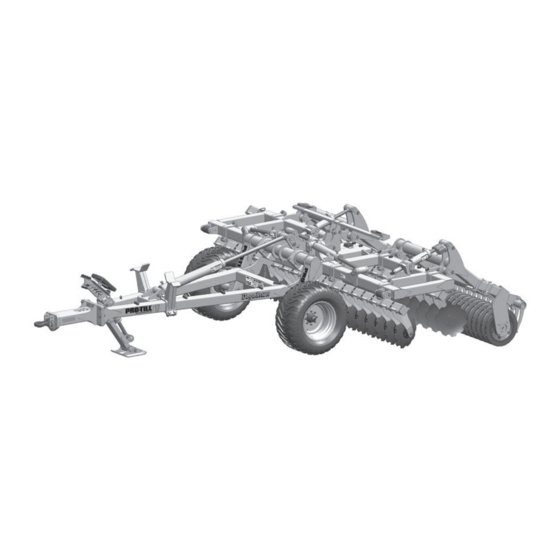

PRO-TILL 14/17/20
for
* Refer to operators manual for complete safety and operation info.
A

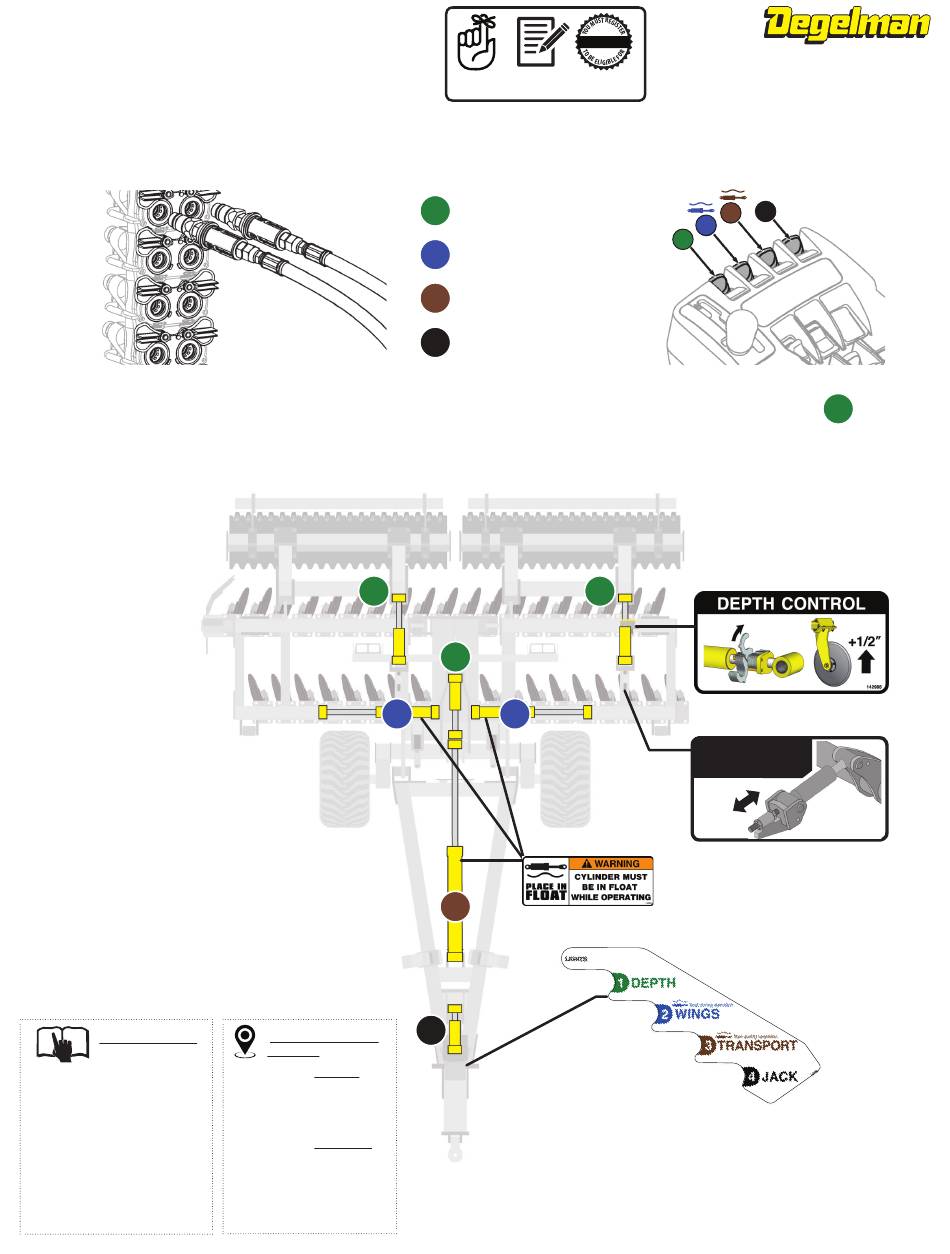

Connect Hydraulics
IMPORTANT: Re-phase and cycle oil in the Depth Control Cylinders

Maintenance

(Check Machine Daily)
• Hydraulic Connections/Hoses
• Working points & pins
• Hubs & Spindles
• Tire Pressure: 41 PSI
(283 kPa)
• Check for missing, worn or
damaged parts.
* Refer to operators manual for
complete safety and operation info.
*
before use (especially after long periods or storage).
1
2
GPS Reference
(Set overlap to 6" per side)
(with 20" discs) 2" Depth
Pro-Till 14
150" (3.8m)
Pro-Till 17
190" (4.8m)
Pro-Till 20
230" (5.8m)
(with 20" discs) MAX Depth
Pro-Till 14
154" (3.9m)
Pro-Till 17
193" (4.9m)
Pro-Till 20
233" (5.9m)
(Consider setting the GPS to include
a 6" implement offset to the right)
WARRANTY
REMEMBER! You must complete Product
Registration to be eligible for Warranty.
DEPTH
1
WINGS
2
TRANSPORT
3
JACK
4
1
1
2
3
4
FLOAT
FLOAT
4
3
2
1
1
PITCH
ADJUSTMENT
143386 v1.1
