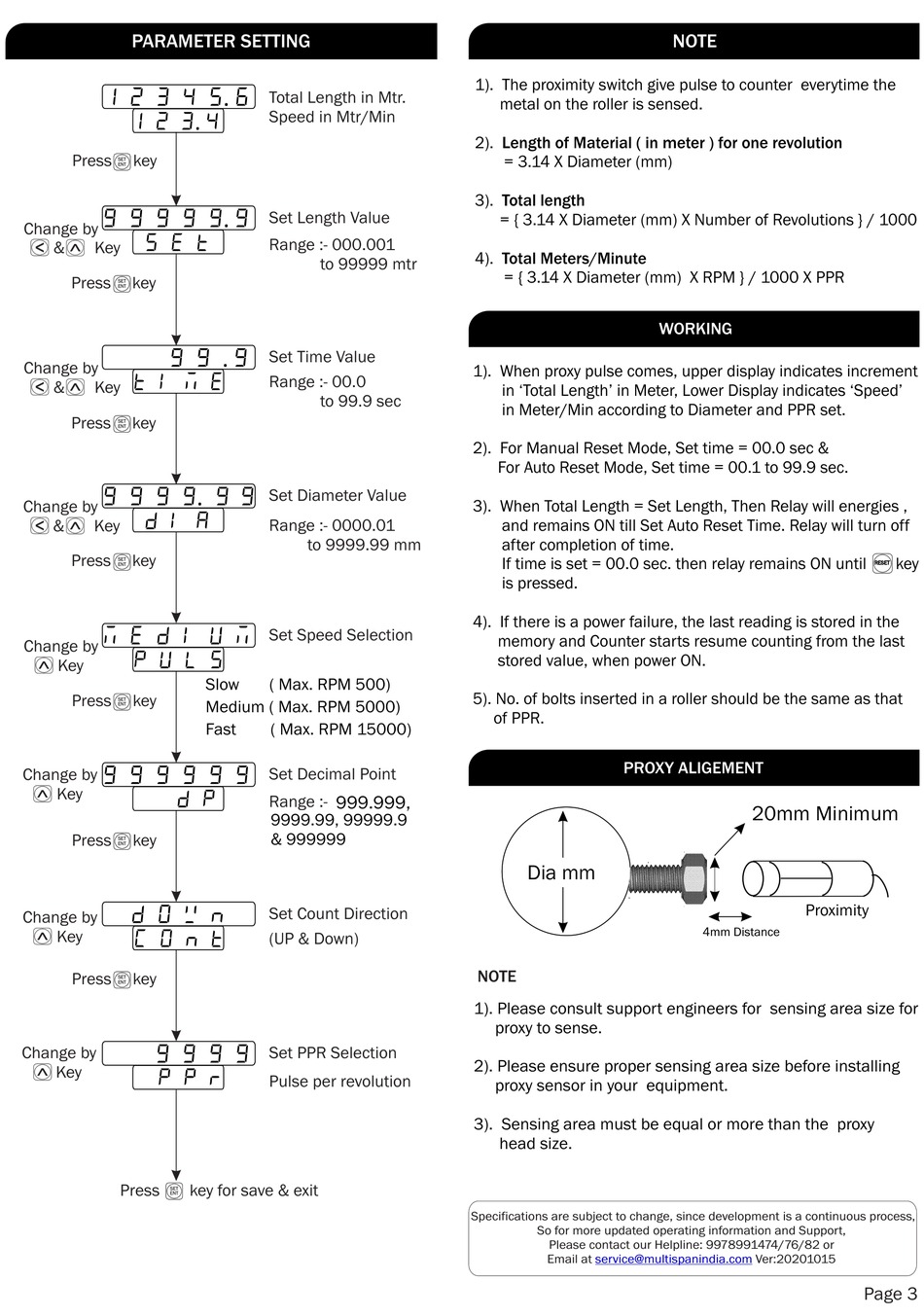

MULTISPAN LC-2046 Manual page 3

PARAMETER SETTING
1 2 3 4 5. 6
1 2 3. 4
Press key
SET
ENT
9 9 9 9 9. 9
Change by
s e t
& Key
Press key
SET
ENT
9 9 . 9
Change by
t I m e
& Key
Press key
SET
ENT
9 9 9 9. 9 9
Change by
d I a
& Key
Press key
SET
ENT
m e d I u m
Change by
p u L S
Key
Press key
SET
ENT
9 9 9 9 9 9
Change by
Key
D P
Press key
SET
ENT
D O W N
Change by
C O N T
Key
Press key
SET
ENT
9 9 9 9
Change by
Key
P P R
Press key for save & exit
SET
ENT
Total Length in Mtr.
Speed in Mtr/Min
Set Length Value
Range :- 000.001
to 99999 mtr
Set Time Value
Range :- 00.0
to 99.9 sec
Set Diameter Value
Range :- 0000.01
to 9999.99 mm
Set Speed Selection
Slow ( Max. RPM 500)
Medium ( Max. RPM 5000)
Fast ( Max. RPM 15000)
Set Decimal Point
Range :-
999.999,
9999.99, 99999.9
& 999999
Set Count Direction
(UP & Down)
Set PPR Selection
Pulse per revolution
1). The proximity switch give pulse to counter everytime the
metal on the roller is sensed.
2). Length of Material ( in meter ) for one revolution
= 3.14 X Diameter (mm)
3). Total length
= { 3.14 X Diameter (mm) X Number of Revolutions } / 1000
4). Total Meters/Minute
= { 3.14 X Diameter (mm) X RPM } / 1000 X PPR
1). When proxy pulse comes, upper display indicates increment
in 'Total Length' in Meter, Lower Display indicates 'Speed'
in Meter/Min according to Diameter and PPR set.
2). For Manual Reset Mode, Set time = 00.0 sec &
For Auto Reset Mode, Set time = 00.1 to 99.9 sec.
3). When Total Length = Set Length, Then Relay will energies ,
and remains ON till Set Auto Reset Time. Relay will turn off
after completion of time.
If time is set = 00.0 sec. then relay remains ON until
is pressed.
4). If there is a power failure, the last reading is stored in the
memory and Counter starts resume counting from the last
stored value, when power ON.
5). No. of bolts inserted in a roller should be the same as that
of PPR.
PROXY ALIGEMENT
Dia mm
NOTE
1). Please consult support engineers for sensing area size for
proxy to sense.
Note:
2). Please ensure proper sensing area size before installing
proxy sensor in your equipment.
3). Sensing area must be equal or more than the proxy
head size.
Specifications are subject to change, since development is a continuous process,
So for more updated operating information and Support,
Please contact our Helpline: 9978991474/76/82 or
Email at service@multispanindia.com
NOTE
WORKING
20mm Minimum
Proximity
4mm Distance
Ver:20201015
key
Page 3
