MULTISPAN UTC-3203 Operating Manual page 2

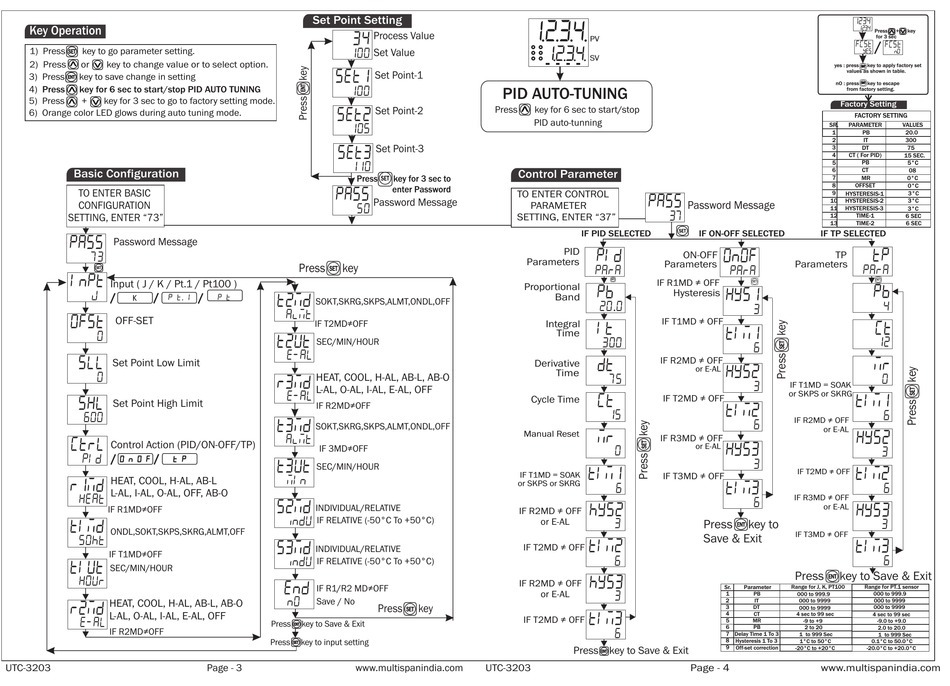

Key Operation
1) Press key to go parameter setting.
SET
2) Press or key to change value or to select option.
3) Press key to save change in setting
ENT
4) Press key for 6 sec to start/stop PID AUTO TUNING
5) Press + key for 3 sec to go to factory setting mode.
6) Orange color LED glows during auto tuning mode.
Basic Configuration
TO ENTER BASIC
CONFIGURATION
SETTING, ENTER "73"
pass
Password Message
73
SET
INPT
Input ( J / K / Pt.1 / Pt100 )
j
K P T. 1
OFST
OFF-SET
0
SLL
Set Point Low Limit
0
SHL
Set Point High Limit
600
CTRL
Control Action (PID/ON-OFF/TP)
PID
O N O F T P
HEAT, COOL, H-AL, AB-L
R1MD
L-AL, I-AL, O-AL, OFF, AB-O
HEAT
IF R1MD=OFF
tIMD
ONDL,SOKT,SKPS,SKRG,ALMT,OFF
SOhT
IF T1MD=OFF
tIUT
SEC/MIN/HOUR
HOUR
HEAT, COOL, H-AL, AB-L, AB-O
r2md
L-AL, O-AL, I-AL, E-AL, OFF
E-AL
IF R2MD=OFF
UTC-3203
Set Point Setting
34
Process Value
100
Set Value
set1
Set Point-1
100
set2 Set Point-2
105
set3 Set Point-3
110
Press SET
pass
Password Message
50
Press key
SET
t2md
P T
SOKT,SKRG,SKPS,ALMT,ONDL,OFF
almt
IF T2MD=OFF
t2ut
SEC/MIN/HOUR
E-AL
HEAT, COOL, H-AL, AB-L, AB-O
r3md
L-AL, O-AL, I-AL, E-AL, OFF
E-AL
IF R2MD=OFF
t3md
SOKT,SKRG,SKPS,ALMT,ONDL,OFF
almt
IF 3MD=OFF
t3ut
SEC/MIN/HOUR
MIN
s2md
INDIVIDUAL/RELATIVE
indu
IF RELATIVE (-50°C To +50 °C)
s3md
INDIVIDUAL/RELATIVE
indu
IF RELATIVE (-50°C To +50 °C)
end
IF R1/R2 MD=OFF
NO
Save / No
Press
Press key to Save & Exit
ENT
Press key to input setting
SET
www.multispanindia.com
Page - 3
1234
1234
PID AUTO-TUNING
Press key for 6 sec to start/stop
PID auto-tunning
Control Parameter
key for 3 sec to
enter Password
TO ENTER CONTROL
PARAMETER
SETTING, ENTER "37"
PID
Parameters
Proportional
Band
Integral
Time
Derivative
Time
Cycle Time
Manual Reset
IF T1MD = SOAK
or SKPS or SKRG
IF R2MD = OFF
or E-AL
IF T2MD = OFF
IF R2MD = OFF
or E-AL
key
SET
IF T2MD = OFF
UTC-3203
PV
SV
pass
Password Message
37
SET
IF PID SELECTED IF ON-OFF SELECTED
PID ONOF
ON-OFF
Parameters
PARA PARA
SET
IF R1MD = OFF
Pb
HYS1
Hysteresis
20.0
IF T1MD = OFF
It
TIM1
300
DT IF R2MD = OFF
HYS2
or E-AL
75
CT
IF T2MD = OFF
TIM2
15
MR
IF R3MD = OFF
HYS3
or E-AL
0
TIM1
IF T3MD = OFF
TIM3
6
hys2
3
Press key to
ENT
Save & Exit
TIM2
6
hys3
Sr. Parameter
3
1
2
3
TIM3
4
5
6
6
7 Delay Time 1 To 3
8 Hysteresis 1 To 3
9 Off-set correction
Press key to Save & Exit
ENT
Page - 4
1234
1 3 2 4
Press + key
for 3 sec
fCST
fCST
e Y s
O n
yes : press key to apply factory set
ENT
values as shown in table.
nO : press key to escape
ENT
from factory setting.
Factory Setting
FACTORY SETTING
SR. PARAMETER VALUES
1
PB 20.0
2 IT 300
3 DT 75
4 CT ( For PID) 15 SEC.
5 PB 5°C
6 CT
08
7 MR 0°C
8 OFFSET 0°C
9
HYSTERESIS-1 3°C
10 HYSTERESIS-2 3°C
11 HYSTERESIS-3 3°C
12 TIME-1 6 SEC
13 TIME-2 6 SEC
IF TP SELECTED
TP
TP
Parameters
PARA
SET
SET
PB
4
3
CT
12
6
MR
0
3
IF T1MD = SOAK
or SKPS or SKRG
TIM1
6
IF R2MD = OFF
6
or E-AL
HYS2
3
3
TIM2
IF T2MD = OFF
6
IF R3MD = OFF
6
HYS3
or E-AL
3
IF T3MD = OFF
TIM3
6
Press key to Save & Exit
ENT
Range for J, K, PT100 Range for PT.1 sensor
PB 000 to 999.9 000 to 999.9
IT 000 to 9999 000 to 9999
DT 000 to 9999
000 to 9999
CT 4 sec to 99 sec 4 sec to 99 sec
MR -9 to +9 -9.0 to +9.0
PB
2 to 20 2.0 to 20.0
1 to 999 Sec 1 to 999 Sec
1°C to 50°C 0.1°C to 50.0°C
-20°C to +20°C -20.0°C to +20.0°C
