Nuvico NCT-4M-MV2A Quick Start Manual

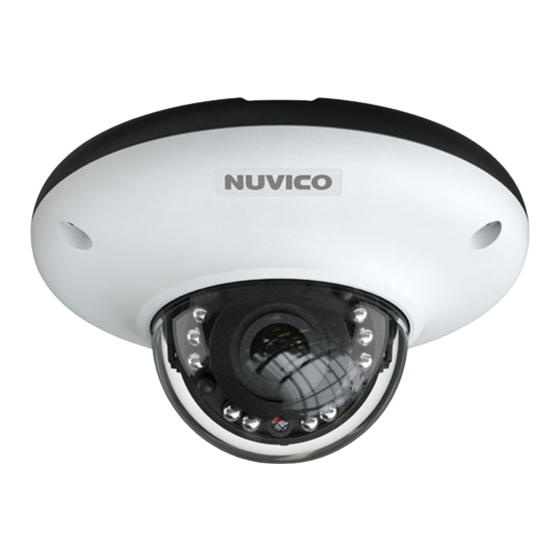

NCT-4M-MV2A Vandal Dome Camera
Quick Start Guide
Thank you for purchasing our product. There may be several
technically incorrect places or printing errors in this manual.
The updates will be added into the new version of this manual.
We will readily improve or update the products or procedures
described in the manual. The content is subject to change
without notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Keep away from liquid while in use.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
If the device will not be used for a long time, please cover the lens
cap to protect the device from dirt.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -20˚C~50˚C), dusty or damp locations, and do
not expose it to high electromagnetism radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
■ A few parts of the device shall be replaced regularly according
to their average enduring time. Regular checking is recommended
for all users.
2
Package
Camera
Quick start guide 2 tapping screws PA 4×25
CD Screwdriver
Drill template
3
Overview
1 4
Network Cable
2 CVBS Cable 5
MIC IN Cable
3 6
DC12V
* 1 It is recommended to install the water-proof cap for outdoor installation.
* 2 If the PoE switch is used to power the camera, DC12V power supply is not
required.
► Connecting Network Cable
1
×2
Plastic plug
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
4
Installation
1
2
Please make sure that the wall or ceiling is strong enough to
3
withstand 3 times the weight of the camera. Please install and use
4
the camera in the dry environment. You'd better install back the lower
dome less than 4 hours after removing it.
5
① Drill the screw holes and the cable hole on the wall according to
the drill template.
6
Power Cable
TF Card Slot
Reset
② Loosen the screws to remove the lower dome from the camera.
2
∅110
39.4mm
∅91.36
39.8mm
∅4.5
Lower Dome
3
