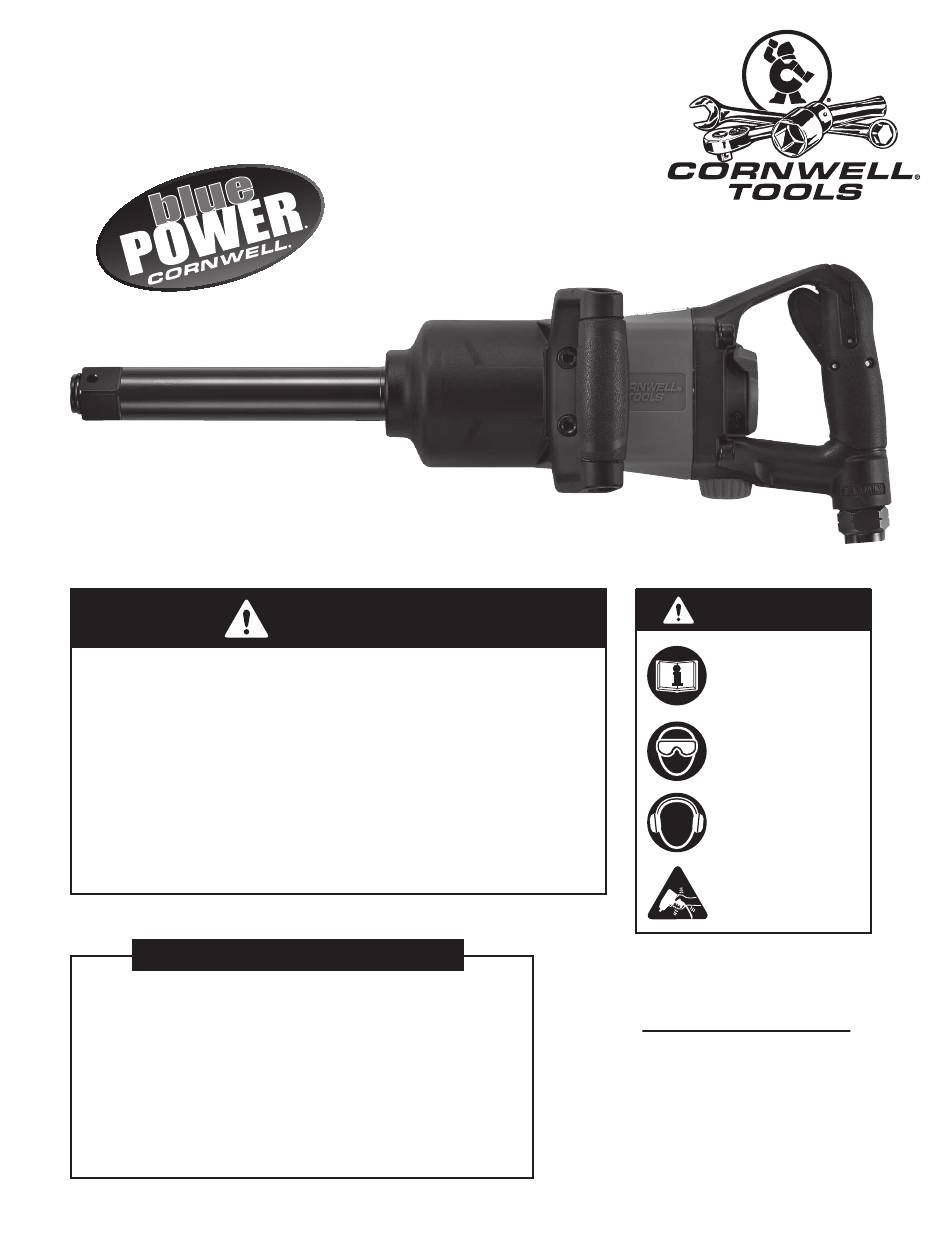

Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
SPECIFICATIONS
Maximum Torque. . . . . . . . . . . . . . . . . . . . . . . . . 2,000 Ft./Lbs.
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,200 RPM
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/2" NPT
Minimum Hose Size. . . . . . . . . . . . . . . . . . . . . . . . . . . 3/4" I.D.
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . 9 CFM
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19.8"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.8 Lbs
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . 104.1 dBA
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 m/sec²
CAT6156BP
• Parts Breakdown
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
CAT6156BP

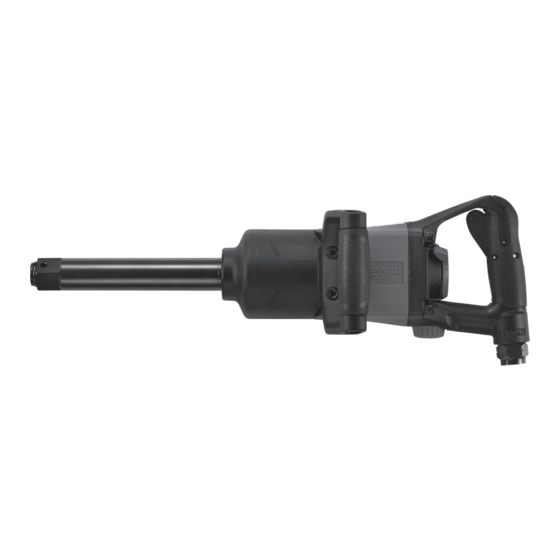

1" Dr. Blue Power
Impact Wrench
Copyright © Professional Tool Products, 2018
®
All rights reserved
rev. 7/17/18
