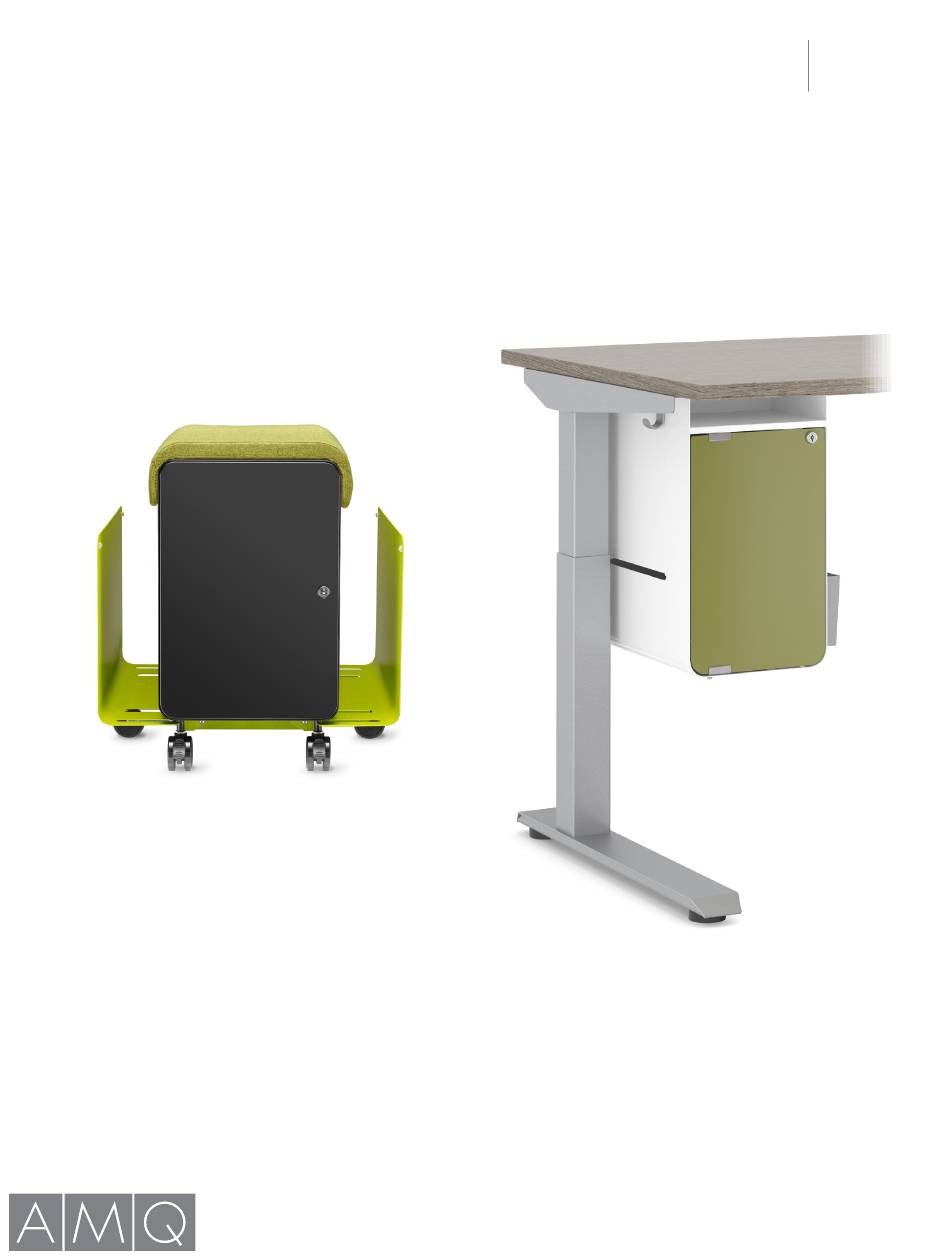

- Page 1 Revi installation guide...
-
Page 2: Table Of Contents
File Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 amqsolutions.com REVI INSTALLATION GUIDE | 2... -
Page 3: Components
PEDESTAL COMPONENTS Castor Castor with Brake Main Housing OPTIONAL COMPONENTS EXPANDABLE BAG DROP MAGNETIC SEAT CUSHION Magnetic Seat Cushion Expandable Bag Drop (1 set) Expandable Bag Slide Drop Castors M5*6 M4*5 amqsolutions.com REVI INSTALLATION GUIDE | 3... - Page 4 Step 1 Step 2 Gently place the pedestal upside down, making Turn your pedestal right side up and your Revi is complete . sure to rest it on a soft surface . Screw on the castors using an adjustable wrench .
- Page 5 Gently rest the pedestal on its back on a soft plate on each bag drop . surface . This will help level the expandable bag drop panels with the main housing . M5*6(x8) Step 5 Fully tighten the screws . amqsolutions.com REVI INSTALLATION GUIDE | 5...
- Page 6 MAGNETIC SEAT CUSHION Step 1 Place magnetic seat cushion on assembled Revi . Magnets will hold in place . amqsolutions.com REVI INSTALLATION GUIDE | 6...
- Page 7 UNDERMOUNT COMPONENTS Undermount Body TP1/W 5*16 OPTIONAL COMPONENTS Shelf Laptop Divider + Short Shelf Bag Hook File Pocket amqsolutions.com REVI INSTALLATION GUIDE | 7...
-
Page 8: Assembly
ASSEMBLING REVI UNDERMOUNT TO DESK Step 1 Turn desk and Revi Undermount upside down to prepare for assembly . Align Revi Undermount with front edge of worksurface, avoiding any under worksurface obstacles . Note: The minimum required distance from the cantilever on AMQ products is the followiing: •... - Page 9 ASSEMBLING REVI UNDERMOUNT ON DESK Step 3 Turn the desk upright and your installation is complete . amqsolutions.com REVI INSTALLATION GUIDE | 9...
-
Page 10: Shelf
Open the door, rotate the shelf and place it inside the Undermount . Step 2 Step 3 Adjust the shelf and insert the tabs on the shelf Press the shelf firmly to confirm into the slots on Undermount . it is attached securely . BACK amqsolutions.com REVI INSTALLATION GUIDE | 10... - Page 11 Rotate the laptop divider so it’s perpendicular to the bottom of the Undermount and the magnets on the L-shaped edge adhere to the bottom . Move the laptop divider to the right until it touches the right side bracket at the top . amqsolutions.com REVI INSTALLATION GUIDE | 11...
- Page 12 . Adjust the short shelf, and insert the tabs on the sides into the slots on left side of Undermount and laptop divider . Press the short shelf to confirm it is firmly in place . BACK Step 4 The laptop divider and short shelf are now installed inside the Undermount . amqsolutions.com REVI INSTALLATION GUIDE | 12...
-
Page 13: Laptop Divider
1, not in figure 2 . If installed like figure 2, the remaining opening on the door side of the laptop divider will be non-functional . LAPTOP DIVIDER Laptop divider and short shelf can be installed either on the left or on the right on Revi Undermount NOTE: without door . -
Page 14: Bag Hook
Rotate the bag book to 70° of the Undermount body and insert it into slot as shown below . The bag hook may be installed on the left or right side . Step 2 Slide in the side hook (A) and rotate until it hangs flush along the Undermount body (B) . amqsolutions.com REVI INSTALLATION GUIDE | 14... -
Page 15: File Pocket
File pocket may be installed on the left and /or right side of Undermount body and/or on the laptop divider over the short shelf . The same instructions apply to any installation position . Step 1 Rotate file pocket so the hook on top goes through the slot as shown . amqsolutions.com REVI INSTALLATION GUIDE | 15... - Page 16 FILE POCKET Step 2 Rotate the file pocket further until it hangs onto the Undermount . Step 3 Make sure the hook on file pocket fits snugly, positioned flush on the Undermount . amqsolutions.com REVI INSTALLATION GUIDE | 16...
- Page 17 Please contact cc@amqsolutions .com if you are missing any parts, have difficulty with assembly, or have any product related questions .
