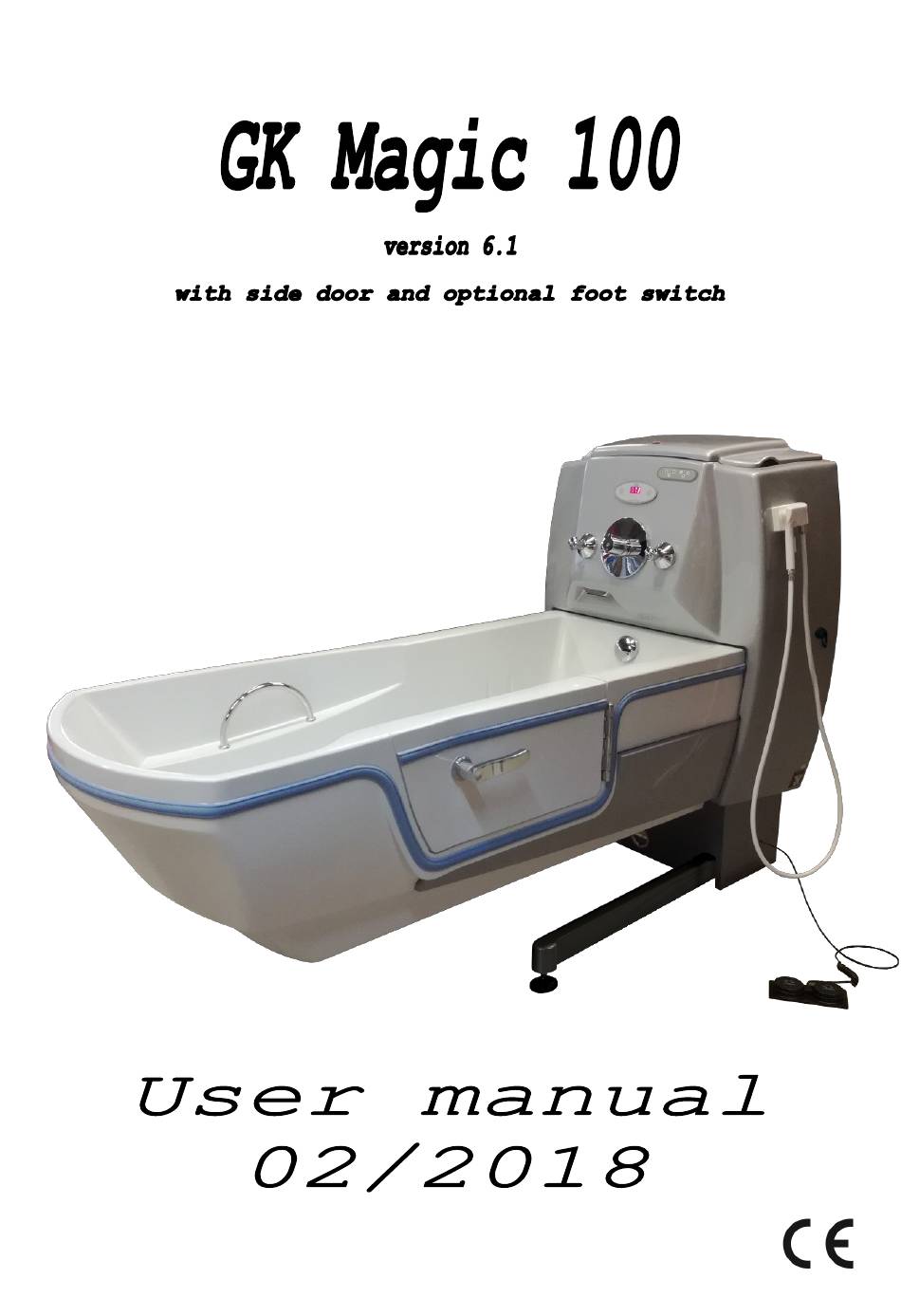

gk-medizinmechanik GK Magic 100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GK Magic 100 and is the answer not in the manual?

Questions and answers

Related Manuals for gk-medizinmechanik GK Magic 100

Summary of Contents for gk-medizinmechanik GK Magic 100

  • Page 2 Copyright © 2018 - All content of this document, particularly texts, photo- graphs and graphics, is protected by copyright. The copyright owner is, if not explicitly marked otherwise, the company Georg Krämer GmbH & Co. KG, Neuhauser- weg 14, A-4061 Pasching. All rights reserved, including the rights for repro- duction, publication, editing and translation of both the whole document as well as of any parts thereof.

  • Page 3: Table Of Contents

    Contents ■ Contents Intended use ················································································· For your safety ············································································ Control panel overview ································································· Components ················································································· Functions 7-12 ················································································ Raising & Lowering the tub ····················································· Opening & Closing the door ····················································· Opening & Closing the drain ··················································· Setting the temperature ··························································...

  • Page 4: Intended Use

    Intended use / For your safety ■ Intended use Bathing system for bathing patients with restricted mobility in care institutes and hospital wards. It is operated by healthcare professionals. The possible height adjustment provides an ergo- nomic working environment for the personnel and helps keeping their spines healthy.

  • Page 5: Control Panel Overview

    Control panel overview ■ Control panel overview Button Up (with printed arrow) Button Tub fill (lights up if configured) Button Shampoo (lights up if configured) Display Tub fill & Shower temperature Button Hydromassage (lights up if configured) Button Down (with printed arrow) Button Bath additive (lights up if configured) Button Disinfection (lights up if configured and needed) Control panel for Sound &...

  • Page 6: Components

    Components ■ Components 14 13 Control panel Shower 10. Control panel for Sound & Vision Shower valve 11. Tub fill valve Overflow 12. Thermostat mixing valve Safety bar 13. Fill in spout Door with handle 14. Shampoo & Bath additive dispenser Adjustable foot 15.
  • Page 7 Components Flowmeter with con-  centration table care  disinfection liquids Hydromassage  jets (blue) USB port ...

  • Page 8: Functions

    Functions ■ Functions Raising & Lowering the tub This tub allows caregivers to bathe patients in an er- gonomic environment. Adjusting the tub to a comfort- table working height enhances the bathing process. The “UP” and “DOWN” buttons are used to raise or lower the tub.

  • Page 9: Setting The Temperature

    Functions Setting the temperature You can set the temperature for tub fill and shower continuously. To do that, turn the knob of the mixing valve to the desired position. The used temperature will be shown in the display. Note: safety reasons temperature mechanically...

  • Page 10: Shower

    Functions Shower The shower can be used at any time. To do so, pick up the white hand shower from its holder and open the “SHOWER VALVE” (in counter clockwise direction). Press and hold the trigger on the hand shower’s handle to begin showering.

  • Page 11: Hydromassage

    Functions Hydromassage This function, if installed, is available only when the bathtub is filled with water. To activate it, press button “HYDROMASSAGE”. deactivate press the button again. The maximum overall treatment time for each bathing cycle is 20 minutes. Once it has been used up the function cannot be used anymore until the next bathing cycle.

  • Page 12: Disinfection

    Functions Disinfection Flowmeter The flowmeter is used to adjust the mixture ratio be- tween water and disinfectant. It is located at the back of the console. It can only be calibrated during a disinfection cycle while the disinfectant solution is flowing. The table next to it should help you to find the right value.

  • Page 13: Electronically Controlled Disinfection Procedure (Model With Disinfection Button)

    Functions Electronically controlled disinfection procedure (model with disinfection button) In order to be able to start the disinfection proce- dure there are two requirements which must be met: a) The tub must be empty or almost empty. b) There must be enough disinfectant inside its container. If both requirements are met, then the disinfection but- ton lights up.

  • Page 14: The Bathing Cycle

    The bathing cycle ■ The bathing cycle  Insert the drain plug into the drain. Close it.  Adjust the tub shorter according to the body length of the pa- tient and put the pillow into the right position.  To fill the bathtub, open the inflow valve (turn in counter clockwise direction) or press, if installed, the button “TUB FILL”...

  • Page 15: Care & Cleaning

    Care & Cleaning ■ Care & Cleaning Always clean the plastic parts wet or damp but never dry. Any product used to clean or disinfect your GK bath must be free from any abrasive, alcohol & corrosive ingredients. Never use any kind of customary glass cleansers, solvents (e.g.

  • Page 16: Troubleshooting

    Care & Cleaning / Troubleshooting From time to time the hydromassage jet cov- ers should be removed and be cleaned to- gether with the inlet and outlet apertures separately. To do so, unscrew the jet covers in counter- clockwise direction off of the tub surface (see pictures).

  • Page 17: Maintenance

    Troubleshooting / Maintenance / Service No bath additive or no shampoo is dispensed.  Either the corresponding box is empty -> exchange the box  or there is air in the tubes -> keep the button pressed for a longer period of time, ...

  • Page 18: Standards & Regulations

    Standards & Regulations / Transport, Storage, Recycling ■ Standards & Regulations The bathtub complies with the essential requirements pursuant to Appendix I of the Medical Device Directive 93/42/EEC. In accordance with the classification regulations pursuant to Ap- pendix IX of the Medical Device Directive 93/42/EEC, the bathtub is a Class I medical device.

  • Page 19: Technical Data

    Technical data / Identification plate ■ Technical data - Bathtub GK Magic 100:  Voltage: AC 230 V / AC 115 V  Frequency: 50 Hz / 60 Hz  Power consumption: 300 VA  Fuses: 3.15 A time-delay (for 230 V) 6.3 A time-delay (for 115 V)
  • Page 20 Georg Krämer Ges.m.b.H. & Co. KG A-4061 Pasching Neuhauserweg 14 Tel. +43 / (0) 7229 / 64450 Fax +43 / (0) 7229 / 70664 service@gk-medizinmechanik.at www.gk-medizinmechanik.at...
