- Page 2 Copyright © 2018 - All content of this document, particularly texts, photo- graphs and graphics, is protected by copyright. The copyright owner is, if not explicitly marked otherwise, the company Georg Krämer GmbH & Co. KG, Neuhauser- weg 14, A-4061 Pasching. All rights reserved, including the rights for repro- duction, publication, editing and translation of both the whole document as well as of any parts thereof.
-
Page 3: Table Of Contents
Contents ■ Contents Intended use ················································································· For your safety ············································································ Components ················································································· Control panel overview ································································· Functions 7-15 ················································································ How the control panel works ··················································· Standby mode ·········································································· Activation card ······································································ Raising & Lowering the tub ····················································· Opening & Closing the door ·····················································... -
Page 4: Intended Use
Intended use / For your safety ■ Intended use Bathing system for bathing patients with restricted mobility in care institutes and hospital wards. It is operated by healthcare professionals. The possible height adjustment provides an ergo- nomic working environment for the personnel and helps keeping their spines healthy. -

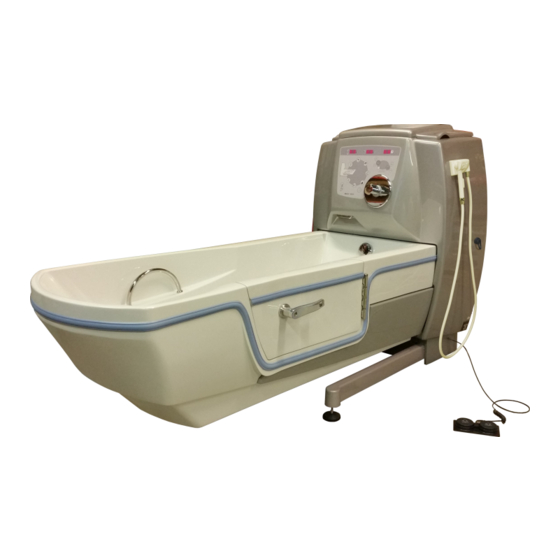

Page 5: Components
Components ■ Components Disinfection Overflow Hydromassage jets Shower 10. Drain Control panel 11. Grab handle Mixer 12. Door with handle Shampoo & Bath additive dispenser 13. Foot switch Fill in spout... - Page 6 Components Flowmeter with con- centration table care disinfection liquids Hydromassage jet USB port ...
-
Page 7: Control Panel Overview
Control panel overview ■ Control panel overview 26 27 28 29 Symbol Missing power supply 15. Button Intensity + Symbol Tub fill temperature 16. Button Intensity - Symbol Shower temperature 17. Button Bath additive Display Tub fill & Shower temp. 18. -
Page 8: Functions
Functions ■ Functions How the control panel works Generally we can say that a lit button signals the availability of the corresponding function (with the exception of Sound & Vision - for details see the corresponding chapter). When you press the button you activate its function and the light starts flashing. -
Page 9: Raising & Lowering The Tub
Functions Raising & Lowering the tub The “UP” and “DOWN” buttons are used to raise or lower the tub. The movement continues until the button is released again. In the upper and lower end positions the tub stops automatically. In the event of power failure the bathtub can only be lowered, which is pow- ered by the emergency battery. -
Page 10: Filling The Tub
Functions Filling the tub When you press the button “TUB FILL” the tub starts filling. The button starts flashing and the symbol “TUB FILL TEMPERATURE” lights up. The water now flows into the bathtub until the set filling level (see “Fill levels”) been... -
Page 11: Temperature Display Tub Fill & Shower
Functions Temperature display tub fill & shower This display shows the current tub fill respectively shower temperature when they are in use. If the tub fill is active, the symbol “TUB FILL TEMPERATURE” is illuminated additionally to the flashing button “TUB FILL”. -
Page 12: Underwater Light
Functions Underwater light The underwater light, if installed (being an alterna- tive to the “Vision” function), is available only when the tub is filled with water at least up to the middle level. Then the button “UNDERWATER LIGHT” lights up and the function becomes available. -
Page 13: Hydromassage
Functions Hydromassage The hydromassage therapy, if installed, is available only when the tub is filled with water at least up to the middle level. In this case, the button is enabled and illuminated. By pressing the button the hydromas- sage jets are activated. The therapy will last until either the set time has elapsed (see “Duration setting for hydromassage”) or the button is pressed again. -
Page 14: Sound & Vision
Functions Sound & Vision The optional feature “Sound & Vision” can playback mu sic files which are stored on a USB stick on speakers build into the tub body. Furthermore, by means of LEDs on different sides it can suffuse the water with light in various colours. -
Page 15: Disinfection
Functions Disinfection Flowmeter The flowmeter is used to adjust the mixture ratio be- tween water and disinfectant. It is located at the back of the console. It can only be calibrated during a disinfection cycle while the disinfectant solution is flowing. The table next to it should help you to find the right value. -
Page 16: Compulsory Disinfection
Functions Note: If the disinfectant runs out while spraying, the whole procedure must be restarted after replacing its con- tainer. Since the procedure cannot simply be aborted and the tub fill being disabled, therefore - once the disinfection procedure has been started - you cannot fill the tub again without enough disinfectant. - Page 17 The bathing cycle Once the water flow has stopped, help the patient into the bathtub and close the door. Caution: Never leave the patient unattended inside the bathtub. Select the desired overall fill level and press the button “TUB FILL”...
-
Page 18: Troubleshooting
Troubleshooting ■ Troubleshooting Tub fill doesn’t work even though the function is active and the light is flashing. Check all the sieves and valves for dirt. If the problem still ex- ists, then the electronic has to be checked. Contact your GK rep- resentative. -
Page 19: Maintenance / Service
Maintenance / Service ■ Maintenance Clean the bathtub after each bath (see chapter “Care & Clean ing”). Regularly (at your own discretion) monitor the fill level of the disinfectant container (if installed). Regularly (at your own discretion) monitor the fill level of the shampoo and bath additive containers (if installed). -
Page 20: Care & Cleaning
Care & Cleaning ■ Care & Cleaning Always clean the plastic parts wet or damp but never dry. Any product used to clean or disinfect your GK bath must be free from any abrasive, alcohol & corrosive ingredients. Never use any kind of customary glass cleansers, solvents (e.g. -
Page 21: Standards & Regulations
Care & Cleaning / Standards & Regulations From time to time the hydromassage jet covers should be removed and be cleaned together with the inlet and outlet aper- tures separately. unscrew covers counter-clockwise direction off of the surface (see pictures). clean the covers, the inlet aperture and the outlet aperture thoroughly with a suit-... -
Page 22: Technical Data
Technical data ■ Technical data - Bathtub GK Magic 2000: Voltage: AC 230 V / AC 115 V Frequency: 50 Hz / 60 Hz Power consumption: 800 VA Fuses: 10 A time-delay 12.5 A time-delay ... -
Page 23: Identification Plate
Identification plate / Transport, Storage, Recycling ■ Identification plate Identification plate This plate give you some information's about Product, instance type, production date, serial number,… ■ Transport, Storage, Recycling Operating conditions Max ambient temperature: 40 °C Max relative humidity: 80 % not condensed at 20 °C Atmospheric pressure range: 500 hPa to 1060 hPa Transport and Storage... - Page 24 Georg Krämer Ges.m.b.H. & Co. KG A-4061 Pasching Neuhauserweg 14 Tel. +43 / (0) 7229 / 64450 Fax +43 / (0) 7229 / 70664 service@gk-medizinmechanik.at www.gk-medizinmechanik.at...
