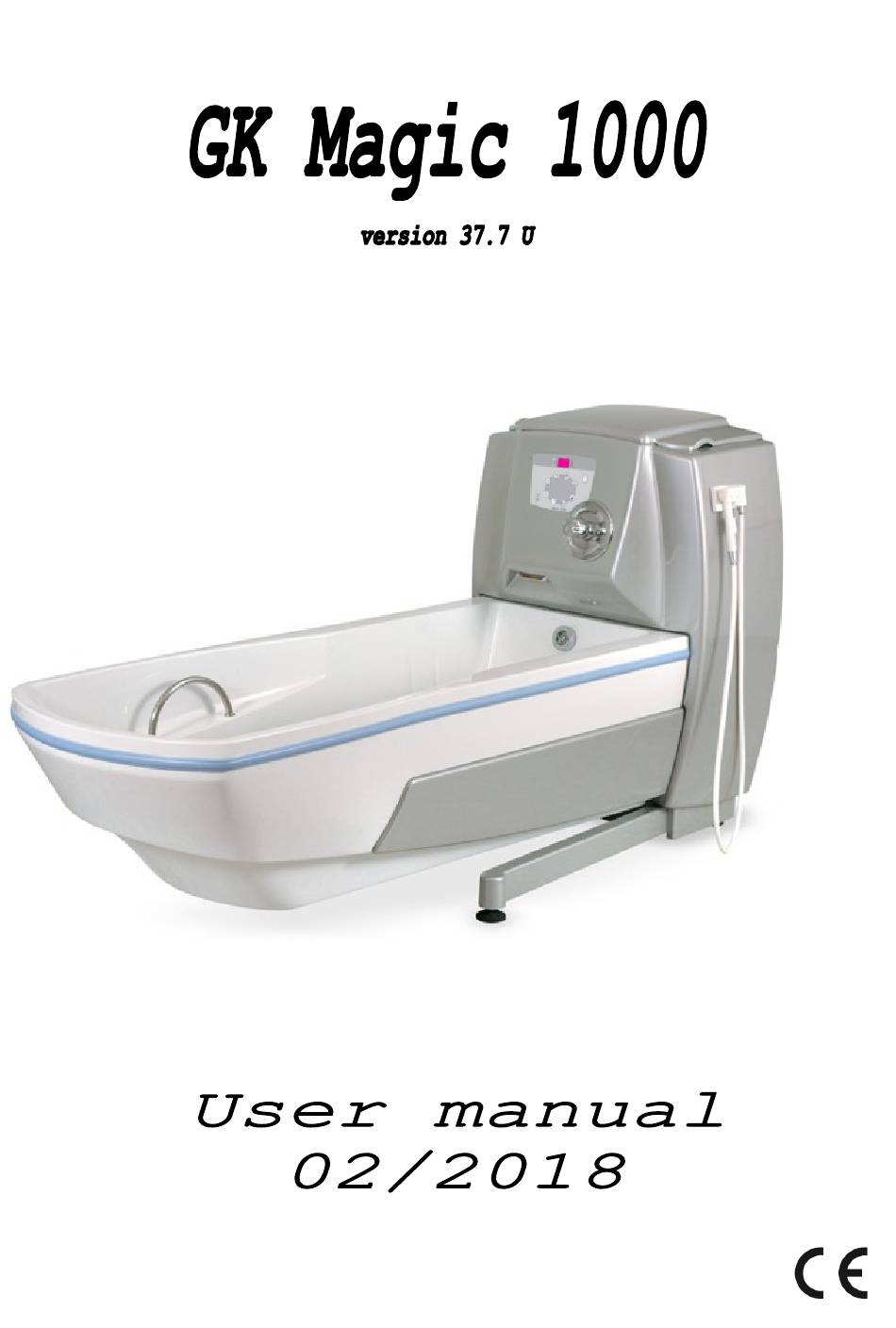

Summary of Contents for gk-medizinmechanik GK Magic 1000
- Page 2 Copyright © 2018 - All content of this document, particularly texts, photo- graphs and graphics, is protected by copyright. The copyright owner is, if not explicitly marked otherwise, the company Georg Krämer GmbH & Co. KG, Neuhauser- weg 14, A-4061 Pasching. All rights reserved, including the rights for repro- duction, publication, editing and translation of both the whole document as well as of any parts thereof.
-
Page 3: Table Of Contents
Contents ■ Contents Intended use ················································································· For your safety ············································································ Components ················································································· Control panel overview ································································· Functions 7-16 ················································································ How the control panel works ··················································· Standby mode ·········································································· Activation card ······································································ Raising and lowering the tub ·················································· Opening & Closing the drain ···················································... -
Page 4: Intended Use
Intended use / For your safety ■ Intended use Bathing system for bathing patients with restricted mobility in care institutes and hospital wards. It is operated by healthcare professionals. The possible height adjustment provides an ergo- nomic working environment for the personnel and helps keeping their spines healthy. -
Page 5: Components
Components ■ Components Disinfection Fill in spout Overflow Shower Hydromassage jets Control panel 10. Drain Mixer 11. Grab handle Shampoo & Bath additive dispenser... - Page 6 Components Flowmeter with con- centration table care disinfection liquids Hydromassage jet USB port ...
-
Page 7: Control Panel Overview
Control panel overview ■ Control panel overview Symbol Missing power supply 15. Button Back Symbol Tub fill temperature 16. Button Next Symbol Shower temperature 17. Button Play/Pause Display Tub fill & Shower temp. 18. Button Lights Sensor Activation card Button Down Button Up Button Tub fill Button Shower... -
Page 8: Functions
Functions ■ Functions How the control panel works Generally we can say that a lit button signals the availability of the corresponding function (with the exception of Sound & Vision - for details see the corresponding chapter). When you press the button you activate its function and the light starts flashing. -
Page 9: Raising And Lowering The Tub
Functions Raising and lowering the tub The “UP” and “DOWN” buttons are used to raise or lower the tub. The movement continues until the button is released again. In the upper and lower end positions the tub stops automatically. In the event of power failure the bathtub can only be lowered, which is pow- ered by the emergency battery. -
Page 10: Setting The Temperature
Functions Setting the temperature You can set the temperature for tub fill and shower continuously. To do that, turn the knob of the mixing valve to the desired position. The used temperature will be shown in the temperature display. Note: safety reasons temperature... -
Page 11: Sound & Vision
Functions Sound & Vision The optional feature „Sound & Vision“ can playback mu sic files which are stored on a USB stick on speakers build into the tub body. Furthermore, by means of LEDs on different sides it can suffuse the water with light in various colours. -
Page 12: Ultrasound
Functions Ultrasound On the GK Magic 2000 bathtub there is only one button “HYDROMASSAGE/ULTRASOUND” for both of these functions, since only one of these functions can be installed in the tub at a time. The ultrasound cleaning treatment is available only when the tub is full. -
Page 13: Ultrasound Cleaning Faq
Functions Ultrasound cleaning FAQ: What is ultrasound? Ultrasound in effect consists of sound waves in a high frequency in a non audible range for human ears (over 20 KHz). Of course these permeate, just like “normal” sound waves, also water and solid bodies. Ultrasound is applied in diverse areas in different frequencies and with varying intensity. - Page 14 Functions Are there any persons which may not be exposed to the ultrasound cleaning function? In general (with the exception of pregnant women) the ultrasound cleaning function may be used on all per- sons which are also allowed to take a bath. In case you are not sure, ask a medical doctor if the applica- tion of the ultrasound cleaning (at 25 to 30 KHz and about 100 mW/cm²) is safe for the patient’s health...
-
Page 15: Hydromassage
Functions Hydromassage The hydromassage therapy, if installed, is available only when the tub is filled with water. In this case, the button is enabled and illuminated. By pressing the button the hydromassage jets are activated. Pressing the button again deactivates them. The hydromassage jets can be turned on and off until the overall treat- ment time of 20 minutes (for each bathing cycle) is exhausted. -
Page 16: Disinfection
Functions Disinfection Flowmeter The flowmeter is used to adjust the mixture ratio be- tween water and disinfectant. It is located at the back of the console. It can only be calibrated during a disinfection cycle while the disinfectant solution is flowing. The table next to it should help you to find the right value. -
Page 17: The Bathing Cycle
Functions / The bathing cycle Note: If the disinfectant runs out while spraying, the whole procedure must be restarted after replacing its con- tainer. Since the procedure cannot simply be aborted and the tub fill being disabled, therefore - once the disinfection procedure has been started - you cannot fill the tub again without enough disinfectant. -
Page 18: Care & Cleaning
The bathing cycle / Care & Cleaning To finish, turn the chromed overflow knob in counter clockwise direction, in order to open the drain. Lower the bathtub and help the patient out of the water or remove the bathing lift from the tub. - Page 19 Care & Cleaning We also recommend for you to polish the white bath tub body once a month with car polish cream. This will give the bathtub a smooth, water repellent surface and will make routine cleaning considera- bly easier – it will also enhance the appearance of your GK bath. From time to time the hydromassage jet covers should be removed and be cleaned together with the inlet and outlet aper-...
-
Page 20: Troubleshooting
Troubleshooting ■ Troubleshooting Tub fill doesn’t work even though the function is active and the light is flashing. Check all the sieves and valves for dirt. If the problem still ex- ists, then the electronic has to be checked. Contact your GK rep- resentative. -
Page 21: Maintenance / Service
Maintenance / Service ■ Maintenance Clean the bathtub after each bath (see chapter “Care & Clean ing”). Regularly (at your own discretion) monitor the fill level of the disinfectant container (if installed). Regularly (at your own discretion) monitor the fill level of the shampoo and bath additive containers (if installed). -
Page 22: Standards & Regulations
Standards & Regulations / Transport, Storage, Recycling ■ Standards & Regulations The bathtub complies with the essential requirements pursuant to Appendix I of the Medical Device Directive 93/42/EEC. In accordance with the classification regulations pursuant to Ap- pendix IX of the Medical Device Directive 93/42/EEC, the bathtub is a Class I medical device. -
Page 23: Technical Data
Technical data / Identification plate ■ Technical data - Bathtub GK Magic 1000: Voltage: AC 230 V / AC 115 V Frequency: 50 Hz / 60 Hz Power consumption: 360 VA Fuses: 10 A time-delay 12.5 A time-delay ... - Page 24 Georg Krämer Ges.m.b.H. & Co. KG A-4061 Pasching Neuhauserweg 14 Tel. +43 / (0) 7229 / 64450 Fax +43 / (0) 7229 / 70664 service@gk-medizinmechanik.at www.gk-medizinmechanik.at...
