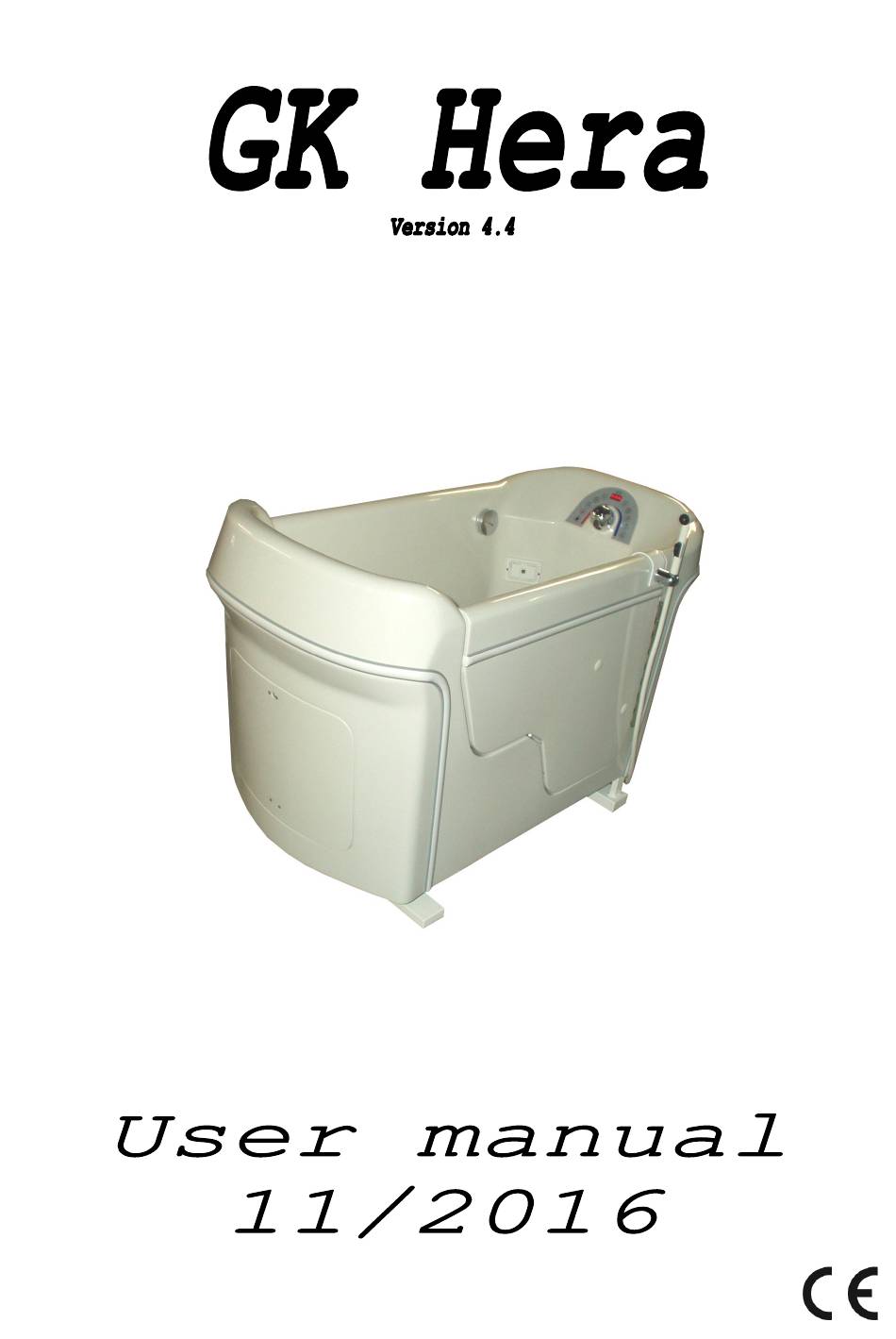

gk-medizinmechanik GK Hera User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GK Hera and is the answer not in the manual?

Questions and answers

Related Manuals for gk-medizinmechanik GK Hera

Summary of Contents for gk-medizinmechanik GK Hera

  • Page 3: Table Of Contents

    Contents ■ Contents For your safety ············································································ Care & Cleaning of the tub ··························································· Functions ·················································································· Activating the sit-in bath GK Hera ········································· Closing the door ···································································· Closing the drain ··································································· Filling the bath ···································································· Adjusting the temperature ······················································ Activating the hydro massage ··················································...

  • Page 4: For Your Safety

    For your safety ■ For your safety  Your GK Hera should only be operated by trained personnel.  Always check the water temperature before immersing the client & before rinsing the client with the shower hose.  Clean your GK Hera bath thoroughly after each use.

  • Page 5: Care & Cleaning Of The Tub

    Care & Cleaning of the tub ■ Care & Cleaning of the tub Caution: Any product used to clean or disinfect your GK bath must be free from any abrasive, alcohol & corrosive ingredients. Never use any kind of customary glass cleansers, solvents (e.g.

  • Page 6: Functions

    Functions Activating the sit-in bath GK Hera Activating the hydro massage After activating the sit-in bathtub GK Hera by pressing If the hydro massage function is installed and the any button (pic. 1) you will notice two illuminated LED water level is high enough, the “jet” button (C) will lights on the control panel.

  • Page 7: Opening The Door

    Sleep mode If the sit-in bathtub GK Hera is left unused for over an hour, it will go into sleep mode. In this case the temperature display (M) shows three horizontal lines (– – –). Press any button on the con- trol panel to reactivate it.

  • Page 8: Troubleshooting

    Troubleshooting ■ Troubleshooting Very little water runs out of the tub fill. Check the hot and cold water supplies - the mixing valves do no work correctly if either the hot or cold water is isolated or if there is not enough pressure in the water supply system. Disinfection system will not work and the button is flashing.

  • Page 9: Maintenance

    Maintenance / Service ■ Maintenance Adjustments and repairs must be carried out only by authorized and appropriately qualified personnel. We recommend to have a functional and a safety check done at least every 12 months. Regularly check the filling level of the disinfection, bath addi- tive and shampoo containers.

  • Page 10: Intended Use

    Intended use / Standards & regulations ■ Intended use Bathing system for bathing patients with restricted mobility. The bathing system is mainly used in care institutes, to a lesser de- gree also on hospital wards. It is used in a professional environ- ment by trained and competent personnel.

  • Page 11: Technical Data

    Technical data ■ Technical data - Bathtub GK Hera:  Voltage: AC 230 V or AC 115 V  Frequency: 50 Hz or 60 Hz  Power consumption: 168 VA  Fuses: 3,15 A time-delay 3 A time-delay (5 A...

  • Page 12: Identification Plate & Ce Mark

    Identification plate & CE mark / Transport, Storage, Recycling ■ Identification plate & CE mark Identification plate This plate give you some information's about Product, instance type, production date, serial number,… CE mark The CE mark has been affixed as proof of its com- pliance with the legal requirements of Appendix I of the Medical Device Directive 93/42/EEC.

  • Page 13: Notes

    Notes ■ Notes...
  • Page 14 Notes ■ Notes...
  • Page 15 Notes ■ Notes...
  • Page 16 Georg Krämer Ges.m.b.H. & Co. KG A-4061 Pasching Neuhauserweg 14 Tel. +43 / (0) 7229 / 64450 Fax +43 / (0) 7229 / 70664 service@gk-medizinmechanik.at www.gk-medizinmechanik.at...
