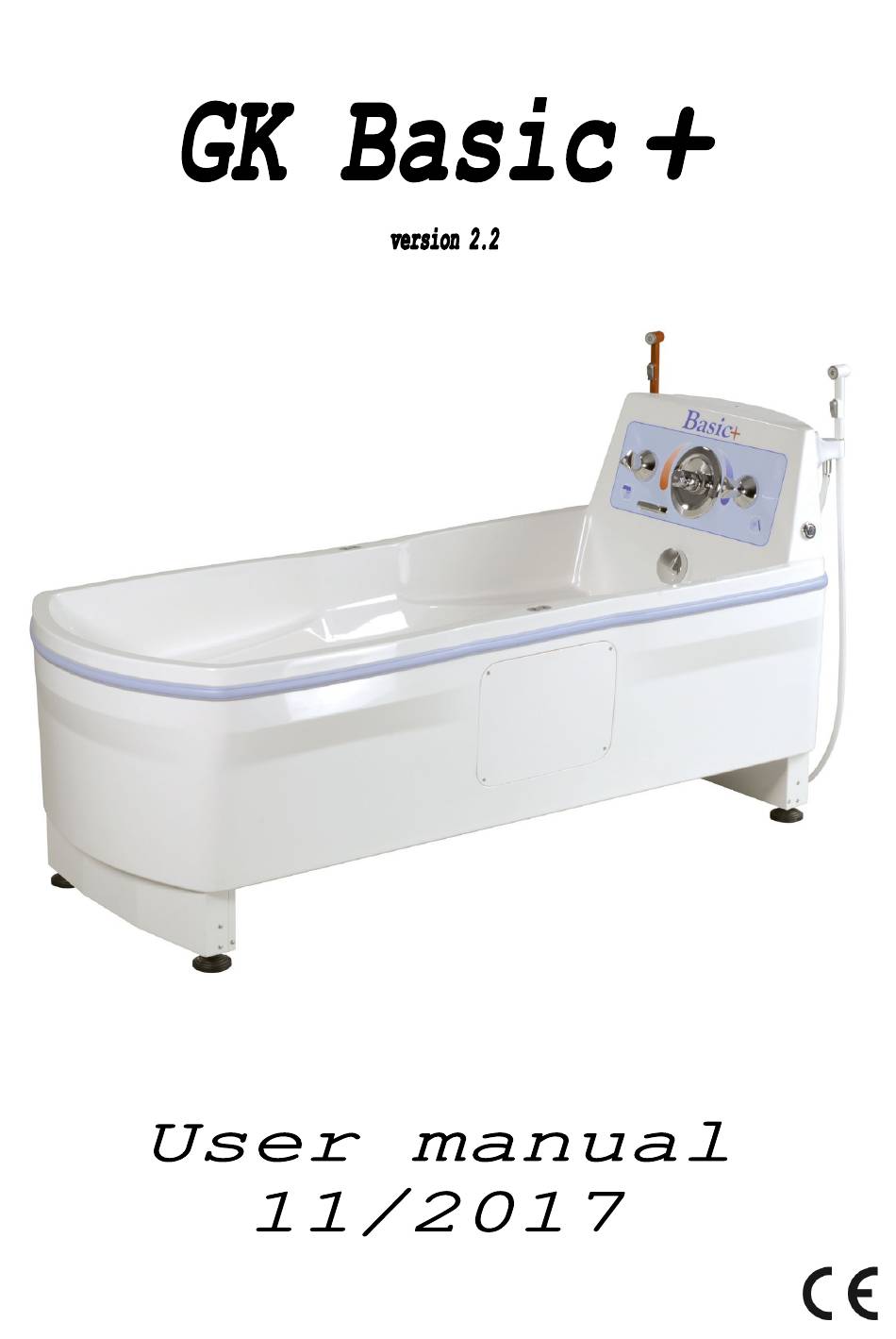

gk-medizinmechanik GK Basic+ User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GK Basic+ and is the answer not in the manual?

Questions and answers

Related Manuals for gk-medizinmechanik GK Basic+

Summary of Contents for gk-medizinmechanik GK Basic+

  • Page 2 Congratulations on your decision to purchase a GK Bathtub. You have acquired an Austrian quality prod- uct which will considerably ease the strain involved in patient care. Due to their advanced ergonomic design, GK Bathtubs are simple and straightforward to use. In spite of that, we would ask you to study the instructions carefully before operating the bathtub.

  • Page 3: Table Of Contents

    Contents ■ Contents For your safety ··········································································· Preparations for bathing ······························································ Components ················································································ Functions 8-10 ················································································ Raising & Lowering of the tub ················································ Setting the temperature ························································· Shower ··················································································· Filling the tub ····································································· Drain the tub ········································································· Disinfection ·········································································· Flowmeter ···············································································...

  • Page 4: For Your Safety

    For your safety ■ For your safety  Make certain that this bathing system is operated only by trained personnel.  Always check the water temperature before the client enters the bathtub or when the shower spray is applied to the client. ...

  • Page 5: Preparations For Bathing

    Preparations for bathing ■ Preparations for bathing  If the drain knob isn’t in the drain system put it back now.  Put the pillow to the right position.  If you are using a stretcher you don’t have to apply the pil- low.

  • Page 6: Components

    Components...
  • Page 7 Components ■ Components Disinfection Shower Stop-valve fill-in Stop-valve shower Fill-in Thermostat mixing valve Overflow Hydro jets Up/down-button 10. Drain 11. Adjustable foot 12. Hydro-button...
  • Page 8 Components Fittings  Disinfection with  stop-valve Hydro-system ...

  • Page 9: Functions

    Functions ■ Functions Raising & Lowering the tub This tub allows caregivers to bathe clients in an ergonomic envi- ronment. Adjusting the tub to a comfortable working height en- hances the bathing process. The “UP” and “DOWN” buttons are used to raise or lower the tub.

  • Page 10: Filling The Tub

    Functions Filling the tub Move the inflow valve against the clockwise direction to fill the tub. If the right amount of water is in the tub close the valve to stop the water flow. Drain the tub To open or close the drain, turn the chrome drain plug knob in the respective direction.

  • Page 11: Hydro Massage

    Functions Hydro massage This therapy is only available with completely filled tub. As soon as the tub is filled, you can start the therapy by pressing the button on the side of the tub. With the first pressing of the button you start the Hydro-jets.

  • Page 12: Care & Cleaning Of The Tub

    Care & cleaning of the tub ■ Care & Cleaning of the tub Any product used to clean or disinfect your GK bath must be free from any abrasive, alcohol & corrosive ingredients. Never use any kind of customary glass cleansers, solvents (e.g. acetone) or similar detergents or dilutions.

  • Page 13: Maintenance / Service

    Maintenance / Service ■ Maintenance  Check the hoses, tubes and connections from time to time.  Make certain that the disinfectant container is monitored.  We recommend that you take advantage of our maintenance ser- vice request safety functional check every months.

  • Page 14: Intended Use

    Intended use / Certificates, Standards & Regulations ■ Intended use Bathing system for bathing patients with restricted mobility. The bathing system is mainly used in care institutes, to a lesser de- gree also on hospital wards. It is used in a professional environ- ment by trained and competent personnel.

  • Page 15: Technical Data

    Technical data ■ Technical data - Bathtub GK Basic+:  Voltage: AC 230 V / AC 115 V  Frequency: 50 Hz / 60 Hz  Power consumption: 320 VA  Fuses: 6,3 A time-delay 15 A time-delay  Protection class: I (connection of protective earth conductor necessary) or II (see identification...

  • Page 16: Identification Plate

    Identification plate / Transport, Storage, Recycling ■ Identification plate Identification plate This plate give you some information's about Product, instance type, production date, serial number,… ■ Transport, Storage, Recycling Operating conditions Max ambient temperature: 40 °C Max relative humidity: 80 % not condensed at 20 °C Atmospheric pressure range: 500 hPa to 1060 hPa Transport and Storage...

  • Page 17: Notes

    Notes ■ Notes...
  • Page 18 Notes ■ Notes...
  • Page 19 Notes ■ Notes...
  • Page 20 Georg Krämer Ges.m.b.H. & Co. KG A-4061 Pasching Neuhauserweg 14 Tel. +43 / (0) 7229 / 64450 Fax +43 / (0) 7229 / 70664 service@gk-medizinmechanik.at www.gk-medizinmechanik.at...
