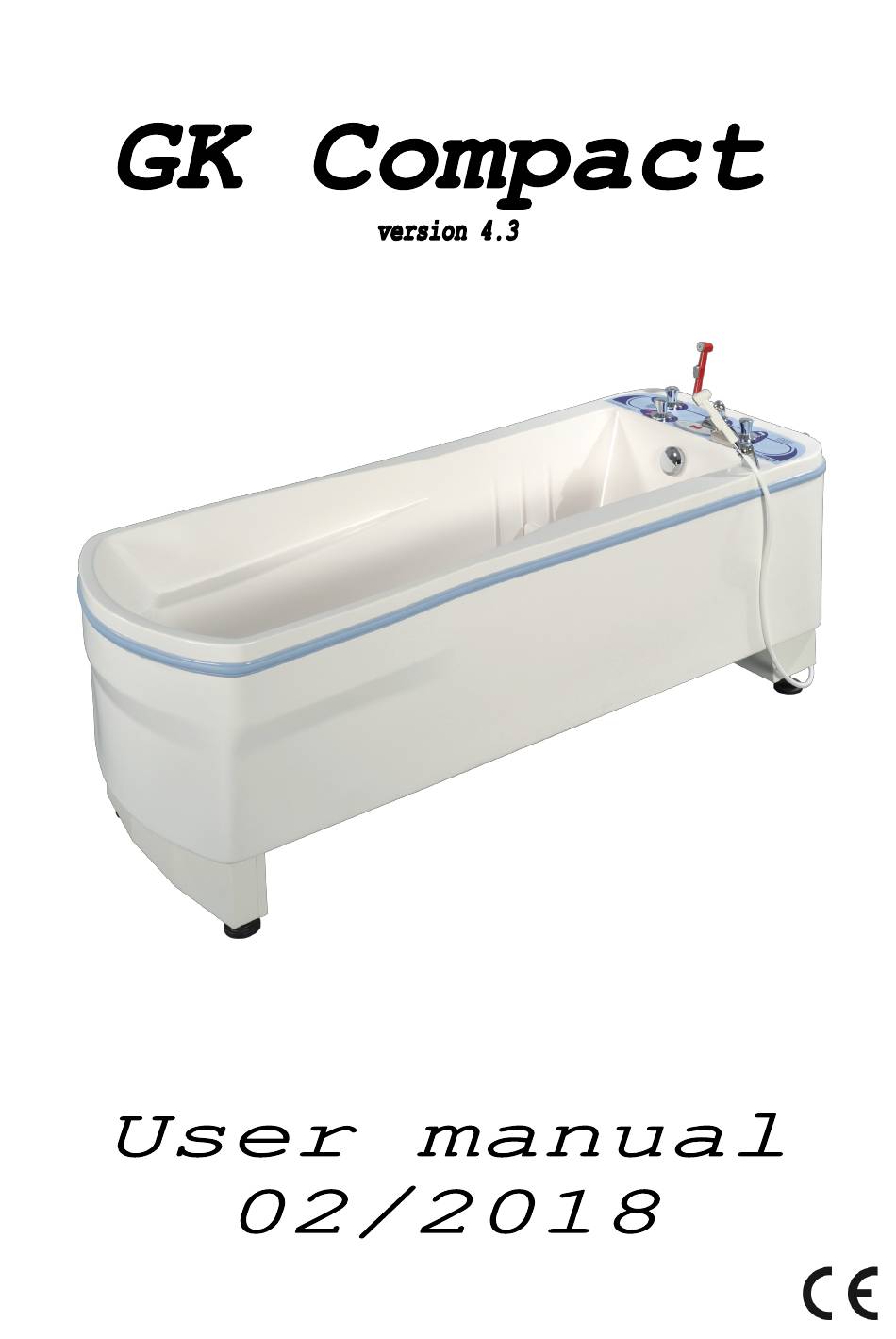

gk-medizinmechanik GK Compact User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GK Compact and is the answer not in the manual?

Questions and answers

Related Manuals for gk-medizinmechanik GK Compact

Summary of Contents for gk-medizinmechanik GK Compact

  • Page 2 Copyright © 2018 - All content of this document, particularly texts, photo- graphs and graphics, is protected by copyright. The copyright owner is, if not explicitly marked otherwise, the company Georg Krämer GmbH & Co. KG, Neuhauser- weg 14, A-4061 Pasching. All rights reserved, including the rights for repro- duction, publication, editing and translation of both the whole document as well as of any parts thereof.

  • Page 3: Table Of Contents

    Contents ■ Contents Intended use ················································································· For your safety ············································································ Control panel overview ································································· Components ················································································· Functions 7-12 ················································································ Raising & Lowering the tub ····················································· Opening & Closing the drain ··················································· Filling the tub ······································································ Filling the tub with control panel ·········································...

  • Page 4: Intended Use

    Intended use / For your safety ■ Intended use Bathing system for bathing patients with restricted mobility in care institutes and hospital wards. It is operated by healthcare professionals. The possible height adjustment provides an ergo- nomic working environment for the personnel and helps keeping their spines healthy.

  • Page 5: Control Panel Overview

    Control panel overview ■ Control panel overview Button Up (with printed arrow) Button Tub fill (lights up if configured) Display Tub fill & Shower temperature Button Hydromassage (lights up if configured) Button Down (with printed arrow) Button Disinfection (lights up if configured and needed) Control panel for Sound &...

  • Page 6: Components

    Components ■ Components...
  • Page 7 Components Disinfection Disinfection valve Shower valve Thermostat mixing valve Control panel Tub fill valve Fill in spout Overflow Shower 10. Hydromassage jet 11. Sound & Vision - Spot 12. Sound & Vision - Control panel 13. Sound & Vision - USB port 14.

  • Page 8: Functions

    Note: The emergency battery is not integrated in every bath as it is an option. On the model “GK Compact Fixed Height” the feature to raise or lower the bathtub does not exist. Opening & Closing the drain To close the drain, turn the chromed overflow knob in clockwise direction.

  • Page 9: Shower

    Functions Shower The shower can be used at any time. To do so, pick up the white hand shower from its holder and open the “SHOWER VALVE” (in counter clockwise direction). Press and hold the trigger on the hand shower’s handle to begin showering.

  • Page 10: Hydromassage

    Functions Hydromassage This function, if installed, is available only when the bathtub is filled with water. To activate it, press button “HYDROMASSAGE”. deactivate press the button again. The maximum overall treatment time for each bathing cycle is 20 minutes. Once it has been used up the function cannot be used anymore until the next bathing cycle.

  • Page 11: Sound & Vision

    Functions Sound & Vision The optional feature “Sound & Vision” can playback mu- sic files which are stored on a USB stick on speakers build into the tub body. Furthermore, by means of LEDs on different sides it can suffuse the water with light in various colours.

  • Page 12: Disinfection

    Functions Disinfection Flowmeter The flowmeter is used to adjust the mixture ratio be- tween water and disinfectant. It is located at the back of the console. It can only be calibrated during a disinfection cycle while the disinfectant solution is flowing. The table next to it should help you to find the right value.

  • Page 13: Electronically Controlled Disinfection Procedure (Model With Disinfection Button)

    Functions Electronically controlled disinfection procedure (model with disinfection button) In order to be able to start the disinfection proce- dure there are two requirements which must be met: a) The tub must be empty or almost empty. b) There must be enough disinfectant inside its container. If both requirements are met, then the disinfection but- ton lights up.

  • Page 14: The Bathing Cycle

    bathing cycle ■ The bathing cycle  Insert the drain plug into the drain. Close it.  Adjust the tub shorter according to the body length of the pa- tient and put the pillow into the right position. (When using a stretcher lifter then this point does not apply.) ...

  • Page 15: Troubleshooting

    Troubleshooting ■ Troubleshooting The temperature regulation by means of the thermostat mixing valve doesn’t work properly. The thermostatic mixer is adjusted at 3 bar flow pressure at both supplies. If you have different supply pressure it may be neces- sary to do a readjustment. If this does not help, clean the sieves behind the chromed cover of the thermostatic mixing valve.

  • Page 16: Care & Cleaning Of The Tub

    Care & Cleaning of the tub ■ Care & Cleaning of the tub Any product used to clean or disinfect your GK bath must be free from any abrasive, alcohol & corrosive ingredients. Never use any kind of customary glass cleansers, solvents (e.g. acetone) or similar detergents or dilutions.

  • Page 17: Maintenance

    Maintenance / Service ■ Maintenance  Regularly (at your own discretion) monitor the fill level of the disinfectant container (if installed).  Once a month, check the sieves in the hand showers and clean them if necessary.  Once a month, check the proper condition of the shower hose and, if installed, of the disinfection shower hose, as well as of any externally visible connections.

  • Page 18: Standards & Regulations

    Standards & Regulations / Transport, Storage, Recycling ■ Standards & Regulations The bathtub complies with the essential requirements pursuant to Appendix I of the Medical Device Directive 93/42/EEC. In accordance with the classification regulations pursuant to Ap- pendix IX of the Medical Device Directive 93/42/EEC, the bathtub is a Class I medical device.

  • Page 19: Technical Data

    Technical data / Identification plate ■ Technical data - Bathtub GK Compact:  Voltage: AC 230 V / AC 115 V  Frequency: 50 Hz / 60 Hz  Power consumption: 300 VA  Fuses: 3.15 A time-delay (for 230 V) 6.3 A time-delay (for 115 V)
  • Page 20 Georg Krämer Ges.m.b.H. & Co. KG A-4061 Pasching Neuhauserweg 14 Tel. +43 / (0) 7229 / 64450 Fax +43 / (0) 7229 / 70664 service@gk-medizinmechanik.at www.gk-medizinmechanik.at...
