auto maskin DCU 408E Quick Installation Manual

November 30, 2017 (1.1)
What's in the Box?
1. SDU 410 in an ESD Bag
2. Bag with 1 Resistor (120Ω
3. Bag ith Resistors
4. Quick Installation Guide
Caution!
Handle with care when opening the bag
and installing the unit.
The SDU is designed to work in conjunction with a DCU. Most of the
configuration and information will be managed through the DCU. Below
is a short description of the indicators and buttons on the unit itself.
Power Indicator
Steady On: Power Supply OK
Flashing: Power below threshold.
Status Indicators
Lit or flashing according to status
kΩ
as indicated. Further details see
Users Ma ual.
Active Indicators
Red LEDs with switch channel and
load reduction/shutdown status.
Further details see Users Ma ual.
Fault Indicators
Amber LEDs with switch channel
and shutdown fault status. Further
details see Users Ma ual.
Acknowledge Button
Flashing status LED s a
acknowledged by pressing the
Acknowledge Button.
Overspeed Test Button
Test mode to initiate Shutdown at
95% of Nominal set-point.
User Interface Basics
e
Publication P/N: 1100274
Quick Installation Guide

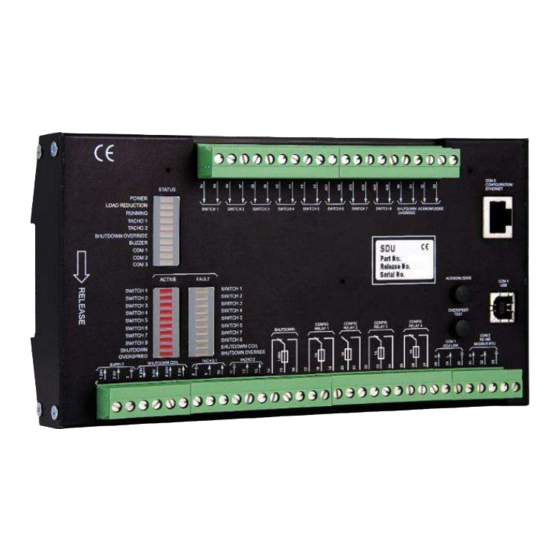

SDU 410 P/N 1006451
Safety Shutdown Unit
 8 channels for switch  Overspeed test function
 Power supply monitoring
inputs
 2 magnetic pickup
 Local acknowledge/
channel
reset button
 Wire break detection
 DIN rail mounting
with LED indication
Copyright © Auto-Maskin AS, 2017
