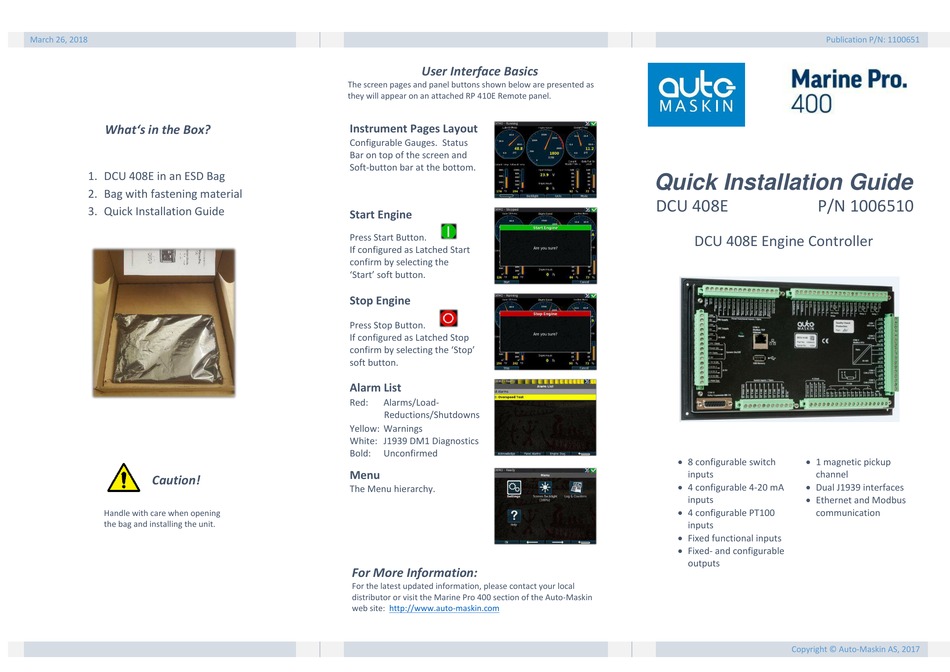

auto maskin Marine Pro 400 Quick Installation Manual

March 26, 2018
What's in the Box?
1. DCU 408E in an ESD Bag
2. Bag with fastening material
3. Quick Installation Guide
Caution!
Handle with care when opening
the bag and installing the unit.
User Interface Basics
The screen pages and panel buttons shown below are presented as
they will appear on an attached RP 410E Remote panel.
Instrument Pages Layout
Configurable Gauges. Status
Bar on top of the screen and
Soft-button bar at the bottom.
Start Engine
Press Start Button.
If configured as Latched Start
confirm by selecting the
'Start' soft button.
Stop Engine
Press Stop Button.
If configured as Latched Stop
confirm by selecting the 'Stop'
soft button.
Alarm List
Red: Alarms/Load-
Reductions/Shutdowns
Yellow: Warnings
White: J1939 DM1 Diagnostics
Bold: Unconfirmed
Menu
The Menu hierarchy.
For More Information:
For the latest updated information, please contact your local
distributor or visit the Marine Pro 400 section of the Auto-Maskin
web site: http://www.auto-maskin.com
Publication P/N: 1100651
Quick Installation Guide
DCU 408E P/N 1006510
DCU 408E Engine Controller
 8 configurable switch  1 magnetic pickup
inputs channel
 4 configurable 4-20 mA  Dual J1939 interfaces
 Ethernet and Modbus
inputs
 4 configurable PT100
communication
inputs
 Fixed functional inputs
 Fixed- and configurable
outputs
Copyright © Auto-Maskin AS, 2017
