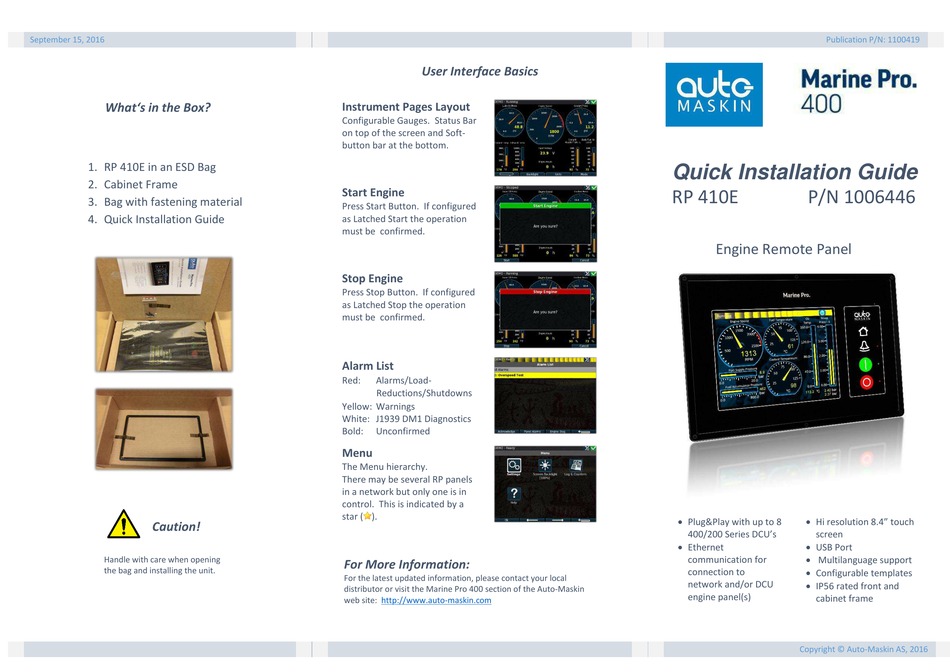

auto maskin Marine Pro 400 Quick Installation Manual

September 15, 2016
What's in the Box?
1. RP 410E in an ESD Bag
2. Cabinet Frame
3. Bag with fastening material
4. Quick Installation Guide
Caution!
Handle with care when opening
the bag and installing the unit.
User Interface Basics
Instrument Pages Layout
Configurable Gauges. Status Bar
on top of the screen and Soft-
button bar at the bottom.
Start Engine
Press Start Button. If configured
as Latched Start the operation
must be confirmed.
Stop Engine
Press Stop Button. If configured
as Latched Stop the operation
must be confirmed.
Alarm List
Red: Alarms/Load-
Reductions/Shutdowns
Yellow: Warnings
White: J1939 DM1 Diagnostics
Bold: Unconfirmed
Menu
The Menu hierarchy.
There may be several RP panels
in a network but only one is in
control. This is indicated by a
star ( ).
For More Information:
For the latest updated information, please contact your local
distributor or visit the Marine Pro 400 section of the Auto-Maskin
web site: http://www.auto-maskin.com
Publication P/N: 1100419
Quick Installation Guide
RP 410E P/N 1006446

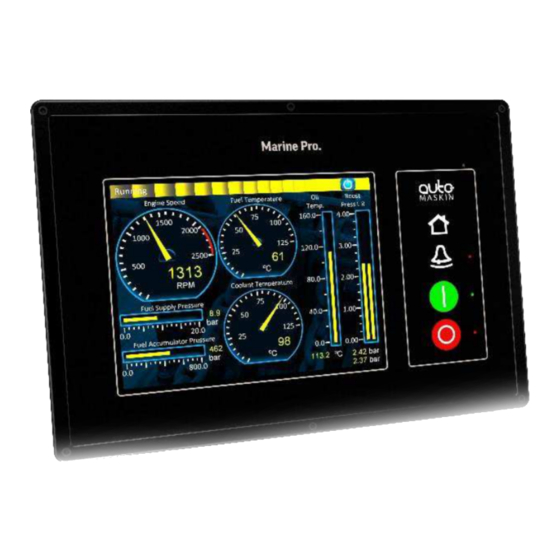

Engine Remote Panel
 Plug&Play with up to 8  Hi resolutio 8.4" touch
400/200 Series DCU s
screen
 Ethernet  USB Port
 Multilanguage support
communication for
 Configurable templates
connection to
 IP56 rated front and
network and/or DCU
engine panel(s)
cabinet frame
Copyright © Auto-Maskin AS, 2016
