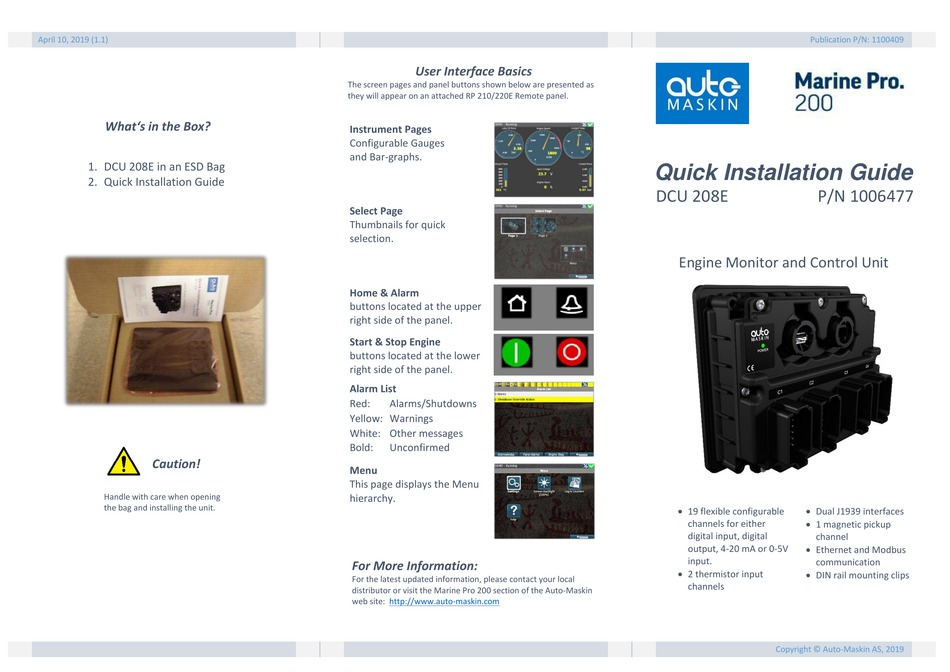

auto maskin Marine Pro 200 Quick Installation Manual

April 10, 2019 (1.1)
What's in the Box?
1. DCU 208E in an ESD Bag
2. Quick Installation Guide
Caution!
Handle with care when opening
the bag and installing the unit.
User Interface Basics
The screen pages and panel buttons shown below are presented as
they will appear on an attached RP 210/220E Remote panel.
Instrument Pages
Configurable Gauges
and Bar-graphs.
Select Page
Thumbnails for quick
selection.
Home & Alarm
buttons located at the upper
right side of the panel.
Start & Stop Engine
buttons located at the lower
right side of the panel.
Alarm List
Red: Alarms/Shutdowns
Yellow: Warnings
White: Other messages
Bold: Unconfirmed
Menu
This page displays the Menu
hierarchy.
For More Information:
For the latest updated information, please contact your local
distributor or visit the Marine Pro 200 section of the Auto-Maskin
web site: http://www.auto-maskin.com
Publication P/N: 1100409
Quick Installation Guide

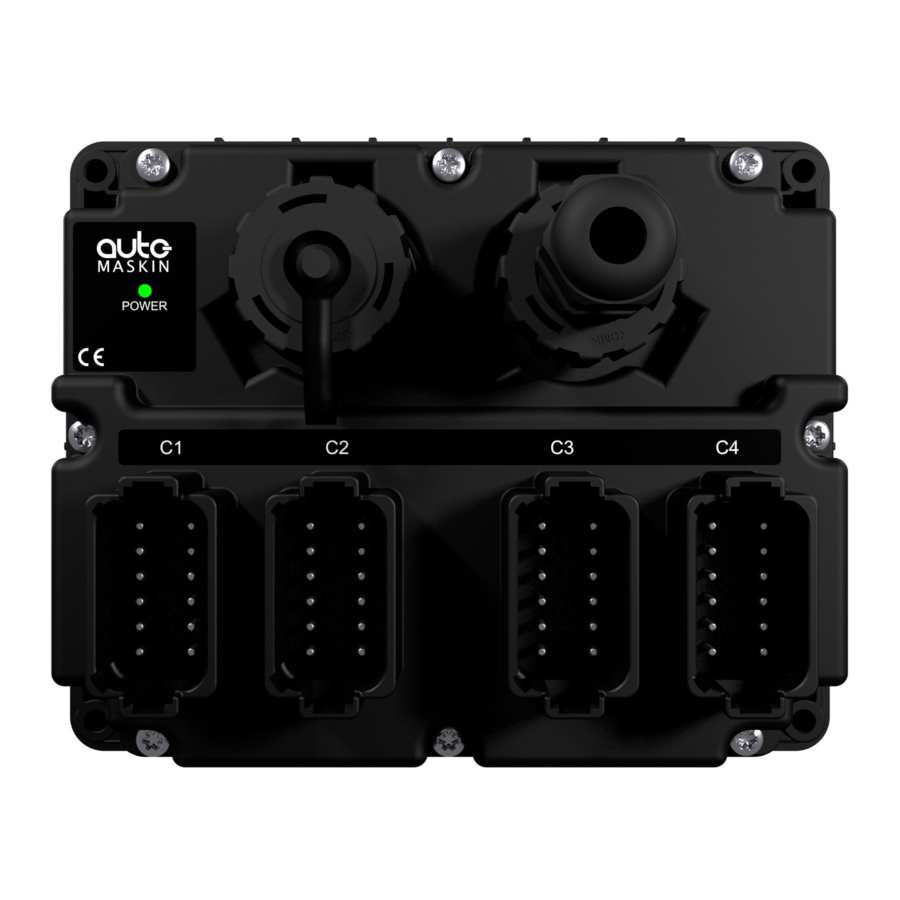

DCU 208E P/N 1006477
Engine Monitor and Control Unit
 19 flexible configurable  Dual J1939 interfaces
 1 magnetic pickup
channels for either
digital input, digital channel
 Ethernet and Modbus
output, 4-20 mA or 0-5V
input.
communication
 2 thermistor input
 DIN rail mounting clips
channels
Copyright © Auto-Maskin AS, 2019
