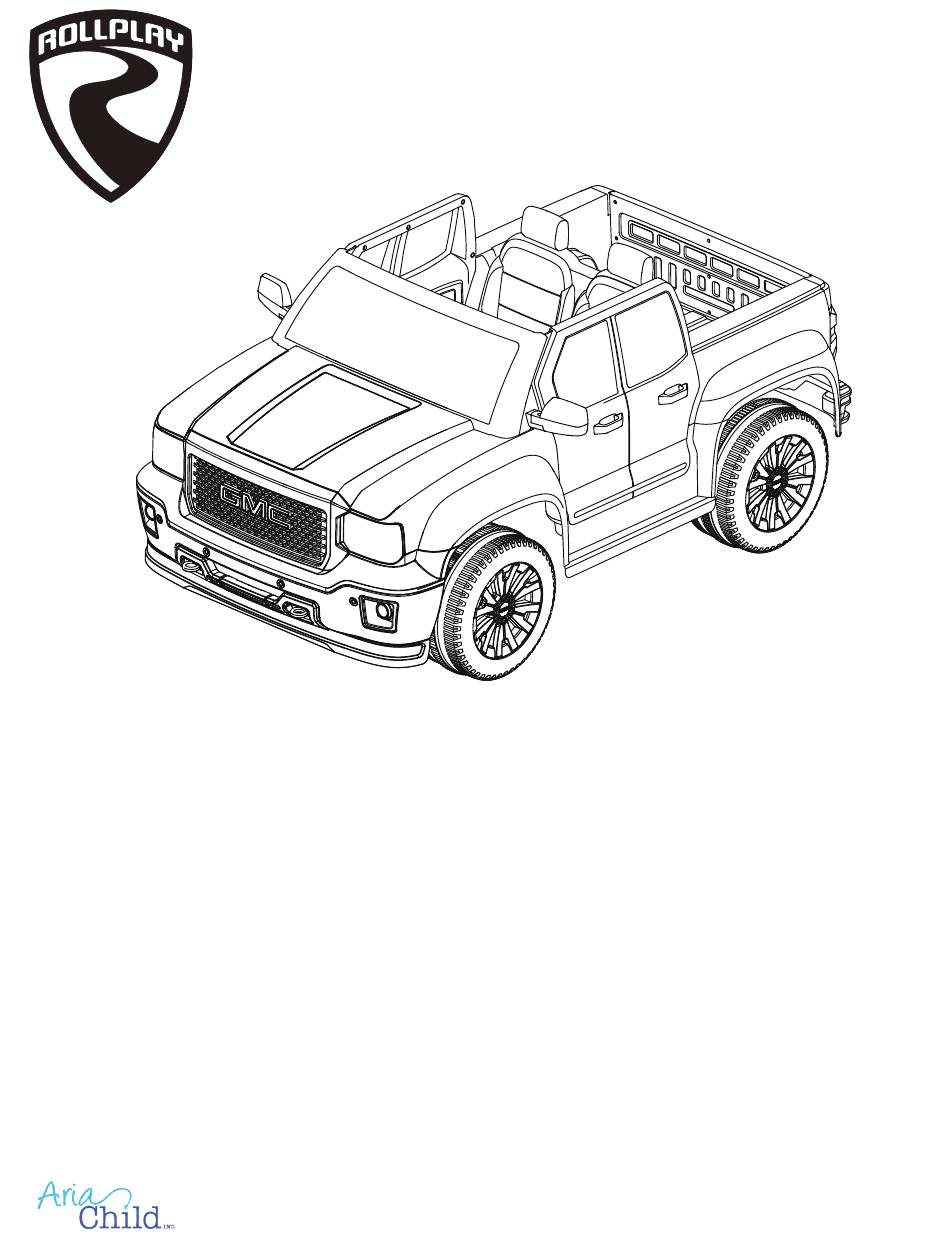

Owner's Manual and Assembly Instructions
Model #: W461-G W461-G02 W461-G03
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
GMC Sierra Denali, all related Emblems, and vehicle body designs are General Motors Trademarks
used under license to Goodbaby (Hong Kong) Limited and/or Aria Child
12V GMC Sierra

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12V GMC Sierra and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rollplay 12V GMC Sierra

Summary of Contents for Rollplay 12V GMC Sierra

  • Page 1 12V GMC Sierra Owner’s Manual and Assembly Instructions Model #: W461-G W461-G02 W461-G03 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China.
  • Page 2 Introduction Thank you for purchasing this vehicle from Aria Child. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Contact Customer Service if you need assistance or replacement parts.

  • Page 4: Table Of Contents

    Table of Contents Safety ............5 Parts ............7 Charging Instructions .......8 Assemble the Rear Support Bars ....9 Install the Rear Support Bars ....10 Install the Rear Wheel Axle .....11 Install the Gear Boxes ......12 Assemble the Rear Wheels .....13 Assemble the Front Wheels ....14 Attach the Truck Bed ......15 Attach the Mirrors ........16 Attach the Windshield and Dashboard ..17...

  • Page 5: Safety

    Safety WARNING: SAFETY RIDING RULES PREVENT INJURIES AND DEATHS: NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in vehicle. Direct adult supervision is REQUIRED. NEVER use on roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
  • Page 6 Safety (Continued) WARNING: BATTERY SAFETY Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs.

  • Page 7: Parts

    Parts...

  • Page 8: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. Connect the Battery: 1. Ensure the vehicle is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 9: Assemble The Rear Support Bars

    Assemble the Rear Support Bars 1. Locate the right (8) and left (9) support bars and the rear support lateral bar (10) 2. Insert the rear support lateral bar into the square slots on the rear support side bars 3. Ensure the assembly is secure before moving on to the next step...

  • Page 10: Install The Rear Support Bars

    Install the Rear Support Bars avoid any scratches or damage) 2. Slide the assembled rear support bars into the square holes on the back of the car body 3. Align the screw holes on the support bars with the holes on the truck body 4.

  • Page 11: Install The Rear Wheel Axle

    Install the Rear Wheel Axle 1. Locate the rear wheel axle (11) 2. Remove the nut and washer from both sides of the rear axle 3. Slide the rear axle horizontally through the rear support system as pictured 4. Make sure the axle is centered before and during rear wheel installation...

  • Page 12: Install The Gear Boxes

    Install the Gear Boxes 1. With the truck body still on its back, locate the two holes on either side of the truck body with the white gearbox connector and yellow gearbox connector 2. Insert the connector on the gear box into the truck body. Slide one of the gear boxes (1) onto the rear axle with the white gears facing out until it sits completely that leads to the battery compartment 3.

  • Page 13: Assemble The Rear Wheels

    Assemble the Rear Wheels Helpful Tip: wheels onto the rear axle, then your rear wheel axle may need to be realigned. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that needs more room.

  • Page 14: Assemble The Front Wheels

    Assemble the Front Wheels 1. Slide a thick washer onto the front axle 2. Slide the front wheel onto the front axle (14). The concave side should face inward. 3. Slide the thin washer onto the front axle 4. Using the hex wrench, fasten the nut on the end of the axle and tighten until you can not tighten any more 5.

  • Page 15: Attach The Truck Bed

    Attach the Truck Bed main harness gear box connector Helpful Tip: Ensure the big white battery connector is connected to the white engine connector Ensure the small white gear box connector is connected to the white engine connector Ensure the yellow gear box connector is connected to the yellow engine connector.

  • Page 16: Attach The Mirrors

    Attach the Mirrors 1. Remove the mirrors (3 and 4) from the package 2. Align the hole on the mirror with the hole on the car 3. Insert the screw into the hole and fasten the screw with a screwdriver to secure the mirror 4.

  • Page 17: Attach The Windshield And Dashboard

    Attach the Windshield and Dashboard 1. Attach the wire connector coming from the dashboard (16) body (located in the dashboard) to the wire connector attached to the car body. Locate the connector in the truck body, and the dashboard wire in the dashboard to avoid pressed. 2.

  • Page 18: Attach The Steering Rod

    Attach the Steering Rod surface to avoid any scratches or damage). Please take notice on dashboard to avoid drop off from truck. Locate the steering rod (24) 3. Insert the straight end of the steering rod into the steering rod hole on the underside of the dashboard.

  • Page 19: Assemble The Steering Wheel

    Assemble the Steering Wheel WARNING! DO NOT mix old and new batteries. DO NOT mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. 1. Use a Phillips head screwdriver to remove the screw on the battery compartment of the steering wheel 2.

  • Page 20: Attach The Doors

    Attach the Doors 1. Align the left door with the interior facing the inside of the car 2. Slide the post on the bottom of the door into the hole on the car body side 3. Insert the screw into the screw hole and fasten to secure 4.

  • Page 21: Attach The Tailgate

    Attach the Tailgate and wheel covers 1. Keeping the tailgate horizontal, align the tailgate with the holes on the truck bed 2. Once the tailgate is completely aligned with the slots on the bed, lift the bed door up until it clicks into place Snap on the wheel cover by aligning the tabs on the cover with the slots on the wheel...

  • Page 22: Battery Attachment

    Battery Attachment Important! Before using the truck for the first time the battery needs to be charged for a full 24 hours (see page 8 for battery charging instructions). 1. Fasten the Battery connector to the Main Harness. Note: to correcty attach the two connectors, turn each connector upside down from each other, and slide together.

  • Page 23: Attach The Seat

    Attach the Seat 1. Align the seat over the battery compartment 2. Ensure the locking mechanism aligns with the holes 3. Slide the hooks onto the back of the seat into the slots on the car body 4. Turn the thumbscrew clockwise until it faces the lock position to properly secure in place...

  • Page 24: Operation Instructions

    Operation Instructions Shift base screw The car must be turned on to use.

  • Page 25: Maintenance

    Maintenance Important Battery and Charger Information Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the first time.

  • Page 26: General Care

    General Care Regularly inspect all vehicle parts to ensure they are in good working condition. Regularly inspect the charger, cord, plug, and other related parts for damage. Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 23 for more information.

  • Page 27: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 28 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 29: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 30: Service And Repairs

    Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please contact Aria Child Customer Service. Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com For a list of available replacement parts, please visit www.ariachild.com.

  • Page 31: Warranty

    Warranty Aria Child 12-Volt Limited Warranty One-year limited warranty from the date of purchase with proof of purchase from an Aria Child certified retailer. Six month limited warranty on the 12-Volt battery with proof of purchase from an Aria Child certified retailer. This one-year limited warranty covers the ride-on vehicle against defects in materials and workmanship to the original purchaser.

  • Page 32: Product Registration

    Product Registration Fill out the form below and mail it to: Aria Child 1131 W. Blackhawk St. Second Floor Chicago, IL 60642 OR fill out the form online at www.ariachild.com We will use the information provided only for your warranty. We will not sell, rent or share your personal information.
