- Page 1 12V Chevrolet Silverado (W461-C) 12V GMC Sierra Denali (W461-G) Customer Service Guide MMXIV © Copyright Aria Child Inc.
- Page 2 Customer Service Guide Contents Check Battery …………………………..........3 Check Fuse Condition …………………………………………………………… III) Check Wiring Condition ……………………………..…………………….…. 7 Door Replacement ………………………………………………………...….. 16 Gearbox Replacement …………………………………………..…………… 18 Schematic diagram ……………..…………….…..……………..……….……. 24 VII) Expanded View ………………………..…..….……….……..………… 25...
- Page 3 Customer Service Guide CAUTION : Disconnect the battery before repairing I) Check Battery Operation: Using a Flat head screwdriver, unlock and remove the seat. Locate the battery harness, and unplug the connector. Use a volt-meter to check battery condition on the battery connector side. Step (1) Turn and unlock these two plastic screws Unlock position...
- Page 4 Customer Service Guide I) Check Battery Step (3) Unplug the battery connector (WHITE) underneath the seat Step (4)
- Page 5 Customer Service Guide I) Check Battery Step Reading Judgment: 11.5 V ~ 13.4 V – Good condition 10.0 V ~ 11.0 V – Proceed to Recharge 9.5 V – Battery to be recharged. If after the recommended recharging time, voltage has not increased, the Battery needs replacement Lower than 9.0 V –...
- Page 6 Customer Service Guide II) Check Fuse Condition Operation: Check the fuse check window on the battery to determine if the fuse has blown out. Keep the battery connected and turn on the unit with power switch. The signal light will stay “ON” when there is a short circuit to battery. Step (1) Fuse check window If the signal light is “ON”, the fuse has blown...
- Page 7 Customer Service Guide III) Check Wiring Connection Operation: There are three positions of connections that should be checked. A. Foot Pedal : Remove the Foot Pedal from the vehicle to check the wiring Step (1) Using a screwdriver, snap the Foot Pedal off from left bottom side of the vehicle body Check the connecting block wiring is properly in place Step (2)
- Page 8 Customer Service Guide III) Check Wiring Connection Step Snap the Foot Pedal back on top after checked and/or repaired...
- Page 9 Customer Service Guide III) Check Wiring Connection B. Shifter : Remove the seat (see Pg 3). Locate the Shifter below the seat, unscrew and lift it up to check the connection Step (1) Unscrew the holding plate underneath the seat Step (2) Lift up the shifter to access the connection...
- Page 10 Customer Service Guide III) Check Wiring Connection Step Check the connecting block wiring is properly in place...
- Page 11 Customer Service Guide III) Check Wiring Connection C. Dashboard : Follow the procedures below to access the wiring connection in the dashboard. Step (1) Unscrew and remove the Steering Wheel from the left hand side Remove from the Steering Column Step (2)
- Page 12 Customer Service Guide III) Check Wiring Connection Step (3) Unscrew these two screws to remove the Dashboard Step (4) Remove the Dashboard by lifting it up from the bottom...
- Page 13 Customer Service Guide III) Check Wiring Connection While removing the Dashboard, pay attention to the latch lock between the windshield frame and mirror holder (both sides) Step (5) Step (6) After the dashboard detached, locate and check the 4-Pins plug any loose connection or not If the problem is addressed and fixed, reverse above steps to re-assemble back the vehicle.
- Page 14 Customer Service Guide III) Check Wiring Connection Step (7) Unscrew these five screws to remove the windshield first Step (8) Then unscrew these eight screws to access the connections inside...
- Page 15 Customer Service Guide III) Check Wiring Connection Step (9) 2-Pin (Black/Orange) for main power 2-Pin (White) for speaker Step (10) Empty blade Red (middle) Pink Power switch of Dashboard bottom Reverse above procedures to re-assemble back the vehicle...
- Page 16 Customer Service Guide IV) Door Replacement Operation: Follow below steps to remove and replace the door. Step (1) Unscrew the screw of the door Step (2) Remove the Door assembly...
- Page 17 Customer Service Guide IV) Door Replacement Step Before put on the new door, make sure the Tab of dashboard is assembled properly; the screw post should be at the same level of tab surface Attach and secure the new door to finish the replacement...
- Page 18 Customer Service Guide V) Gearbox Replacement Operation: Follow below steps to take apart the gearbox completely for replacing. Use flat screwdriver to unlock the snaps and remove the rim Step (1) Step (2) There are five locking snaps on the rim...
- Page 19 Customer Service Guide V) Gearbox Replacement Step (3) Use the plastic wrench provided to remove the nut on rear axle Slide the rear wheel off of the axle Step (4)
- Page 20 Customer Service Guide V) Gearbox Replacement For units with the last 6 digit of Serial Code greater than 003488, skip Steps 5 - 8. Remove the seat. Release the truck bed by unscrewing these two screws Step (5) Step (6) Unscrew to easily lift the truck bed and access gearbox harness...
- Page 21 Customer Service Guide V) Gearbox Replacement Step (7) Lift up the truck bed and find the gearbox harnesses underneath Unplug the appropriate side of gearbox you need to replace Step (8) Yellow connector with Black/Red wiring and White sticker on it, this is for the Driver (left) side. White connector with Blue/White wiring and Red sticker on it, this is for Passenger (right) side.
- Page 22 Customer Service Guide V) Gearbox Replacement Step (9) Slide the gearbox out from axle...
- Page 23 Customer Service Guide V) Gearbox Replacement Step (10) Replace the old gearbox with the new one Step (11) Install the gearbox on the axle and put the connector through the hole. Plug the connector together with the same color connector in the main harness. Reverse above procedures to re-assemble the vehicle...
- Page 24 Customer Service Guide VI) Wirings Schematic...
- Page 25 Customer Service Guide VII) Expanded View...
Need help?
Do you have a question about the 12V Chevrolet Silverado and is the answer not in the manual?
Questions and answers

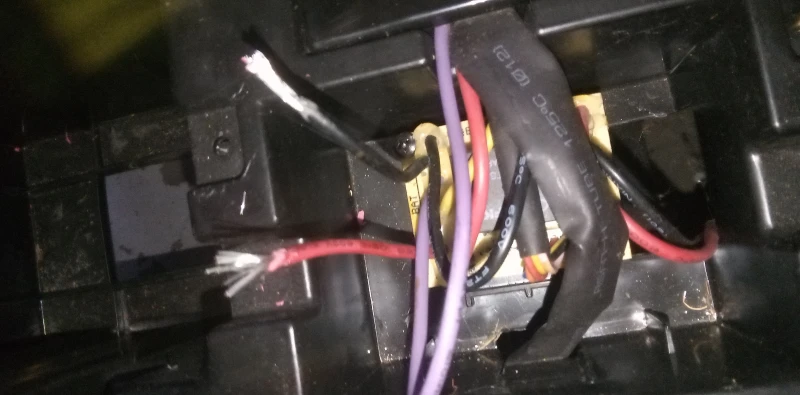

Hi i need assistance with installing new battery
To install a new battery in a Rollplay 12V Chevrolet Silverado, follow these steps:
1. Disconnect the Old Battery:
- Use a flat-head screwdriver to unlock and remove the seat.
- Locate the battery harness and unplug the white battery connector.
2. Install the New Battery:
- Place the new 12V battery in the designated compartment.
- Connect the new battery’s harness to the vehicle’s connector.
3. Secure the Battery:
- Ensure the battery is properly positioned.
- Reattach the seat by locking it back in place with the plastic screws.
4. Check Battery Condition:
- Use a voltmeter on the battery connector to verify the voltage:
- 11.5V ~ 13.4V – Good condition.
- 10.0V ~ 11.0V – Requires charging.
- Below 9.5V – Needs recharging before use.
Ensure the battery is fully charged before operating the vehicle.
