Owner's Manual and Assembly Instructions
Model #: W491-B-WH
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return your product to the store, contact Rollplay
with questions. Email customerservice@rollplay.com for assistance and replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

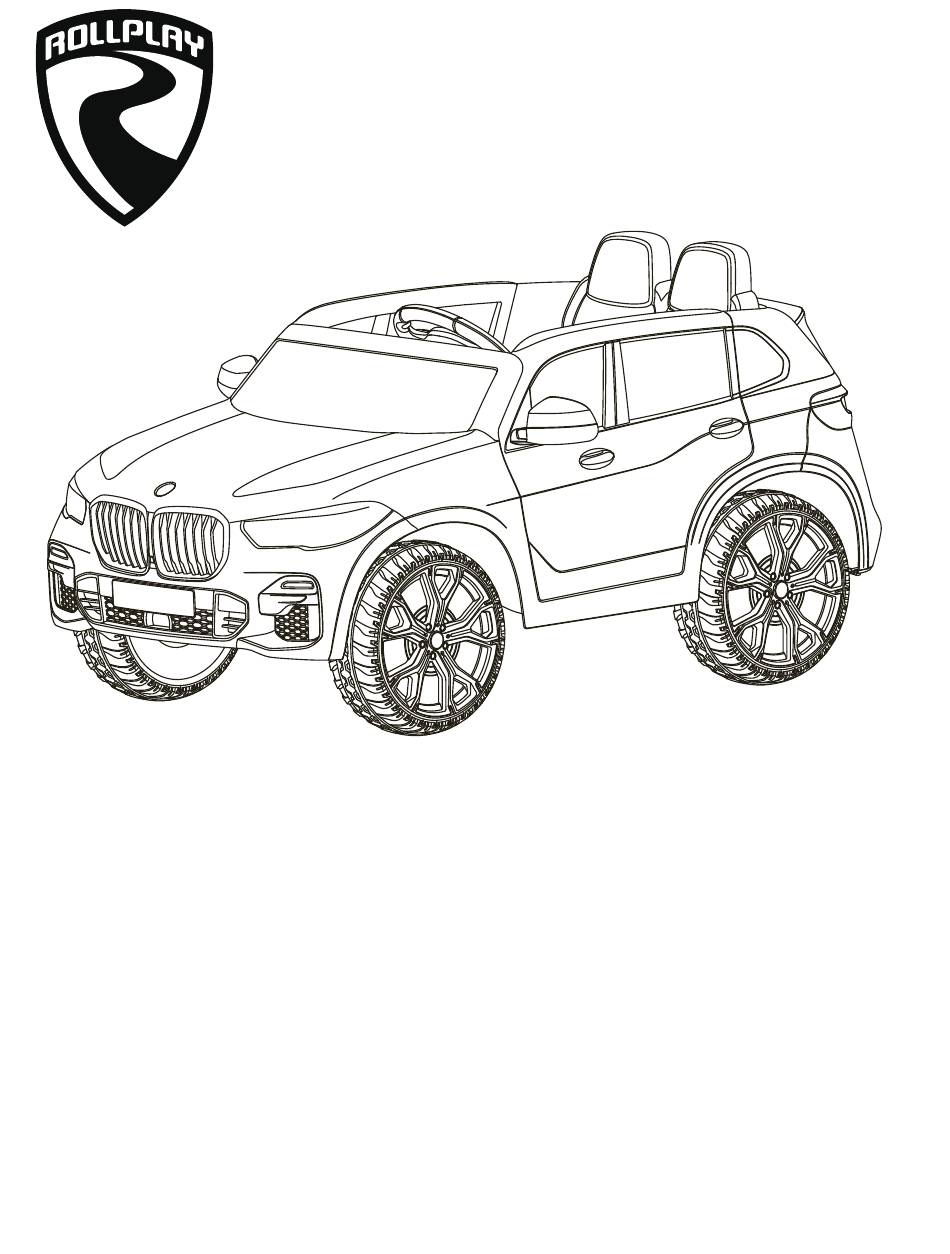

BMW X5 M 6V
25701651 04/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W491-B-WH and is the answer not in the manual?

Questions and answers

Related Manuals for Rollplay W491-B-WH

Summary of Contents for Rollplay W491-B-WH

  • Page 1 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return your product to the store, contact Rollplay with questions. Email customerservice@rollplay.com for assistance and replacement parts. IMPORTANT: Save this manual with your sales receipt.
  • Page 2 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please contact Rollplay Customer Service with any questions. Have your model number and serial number ready before calling.
  • Page 3 E-mail Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please provide proof of purchase. Keep your sales receipt and register your product at www.rollplay.com, as we require proof of purchase. customerservice@rollplay.com Read this entire manual prior to assembly to ensure safe operation of the vehicle.

  • Page 4: Table Of Contents

    Table of Contents Safety............5 Parts ............7 Charging Instructions......8 Assemble the Front Wheels....9 Assemble the Left Rear Wheel....10 Assemble the Right Rear Wheel..... 11 Assemble the rear spoiler ....... Assemble the door........Attach the steering wheel....... 14 Assemble the windshield......

  • Page 5: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines or serious injury or death may occur. NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in the vehicle. Direct adult supervision is REQUIRED. ALWAYS use common sense and safe practices when using the vehicle.
  • Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery. PROPOSITION 65 WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.

  • Page 7: Parts

    Parts 7. Car body 13. Blister box 1. Windshield 8. Washers (4) 14. Rear wheel orientation rod 2. Steering wheel 9. Front wheels (2) 15. Door Screw (2) 3. Mirrors (2) 10. Rear wheels (2) 16. Screw 4. Seat 11. Battery 17.

  • Page 8: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS (NO MORE THAN 30 HOURS) BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and the power switch is turned off.

  • Page 9: Assemble The Front Wheels

    Assemble the Front Wheels Assemble the front wheels: Place the washer (8) on to the front axle and then slide the front wheel (9) into position. Push on the center of the wheel and lock into place. Check that the wheel is correctly positioned by gently pulling it to ensure that it is secured to the axle.

  • Page 10: Assemble The Left Rear Wheel

    Assemble the Left Rear Wheel 8 14 Assemble the Left Rear Wheel: Place the washer (8) and rear wheel orientation rod (14) on to the rear left axle. Slide the wheel (9) into position, ensuring the side with the gear convex is facing inward.

  • Page 11: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel Assemble the Right Rear Wheel: Slide the rear wheel (10) into position on the rear right axle, ensuring the side with the gear convex is facing inwards. Align the gear teeth on the wheel with the grooves on the gear box. Push on the center of the wheel and lock into place.

  • Page 12: Assemble The Rear Spoiler

    Assemble the rear spoiler Assemble the rear spoiler: Align the clips of the rear spoiler into the slot of car body, press down the rear spoiler rmly until you hear the click to complete the assem- bly. Finally, as shown in the gure tighten with two screws on the left and right of the rear spoiler.

  • Page 13: Assemble The Door

    Assemble the door Assemble the door: As shown in the gure, place the door (5) on the car body and rotate the door connector to align the holes, then tighten with the door screw (15). Install the other side door in the same way.

  • Page 14: Attach The Steering Wheel

    Assemble the steering wheel Assemble the steering wheel: Align and insert the hole on the bottom of the steering wheel (2) onto the steering rod. A clicking sound will signal that it is locked into place and assembly is complete.

  • Page 15: Assemble The Windshield

    Assemble the windshield Assemble the windshield: Align the windshield with the slots between the dashboard and the body. Push lightly on the windshield (1) until it clicks into place.

  • Page 16: Assemble The Wing Mirror

    Assemble the wing mirror Assemble the wing mirror: Please note that the left and right mirrors are different. Insert the wing mirror (3) into the slot of the door, pressing until you hear the click sound.

  • Page 17: Installing Batteries In Steering Wheel

    Installing batteries in steering wheel Installing batteries in steering wheel: Using a screwdriver (not included), open the battery cover. Install (2) 1.5V AA Batteries (not included) into the openings with correct polarity. Replace the battery cover and tighten screw.

  • Page 18: Door Operation

    Door Operation Door Operation: Once assembled, pull door to open. Push to close.

  • Page 19: Operating Instructions

    Operating Instructions Dashboard light Gear shift Power button Sound buttons Pedal Forward and Reverse: Press the power button to illuminate dashboard lights. Move the gear shift to the forward position. The car will move forward, with the front lights working, when the accelerator pedal is depressed. The car will stop when the accelerator pedal is released.

  • Page 20: Battery Maintenance

    Battery Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 24 hours before using the vehicle for the rst •...

  • Page 21: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 21 for more information.

  • Page 22: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Contact Customer Service for instructions on how to reset the fuse Snap pins are loose Tighten snap pins...
  • Page 23 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 24: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 25: Service And Repairs

    Hours: 8 AM - 5 PM EST, Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com.

  • Page 26: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 27: Product Registration

    City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
