Summary of Contents for Matco Tools MPPC15I

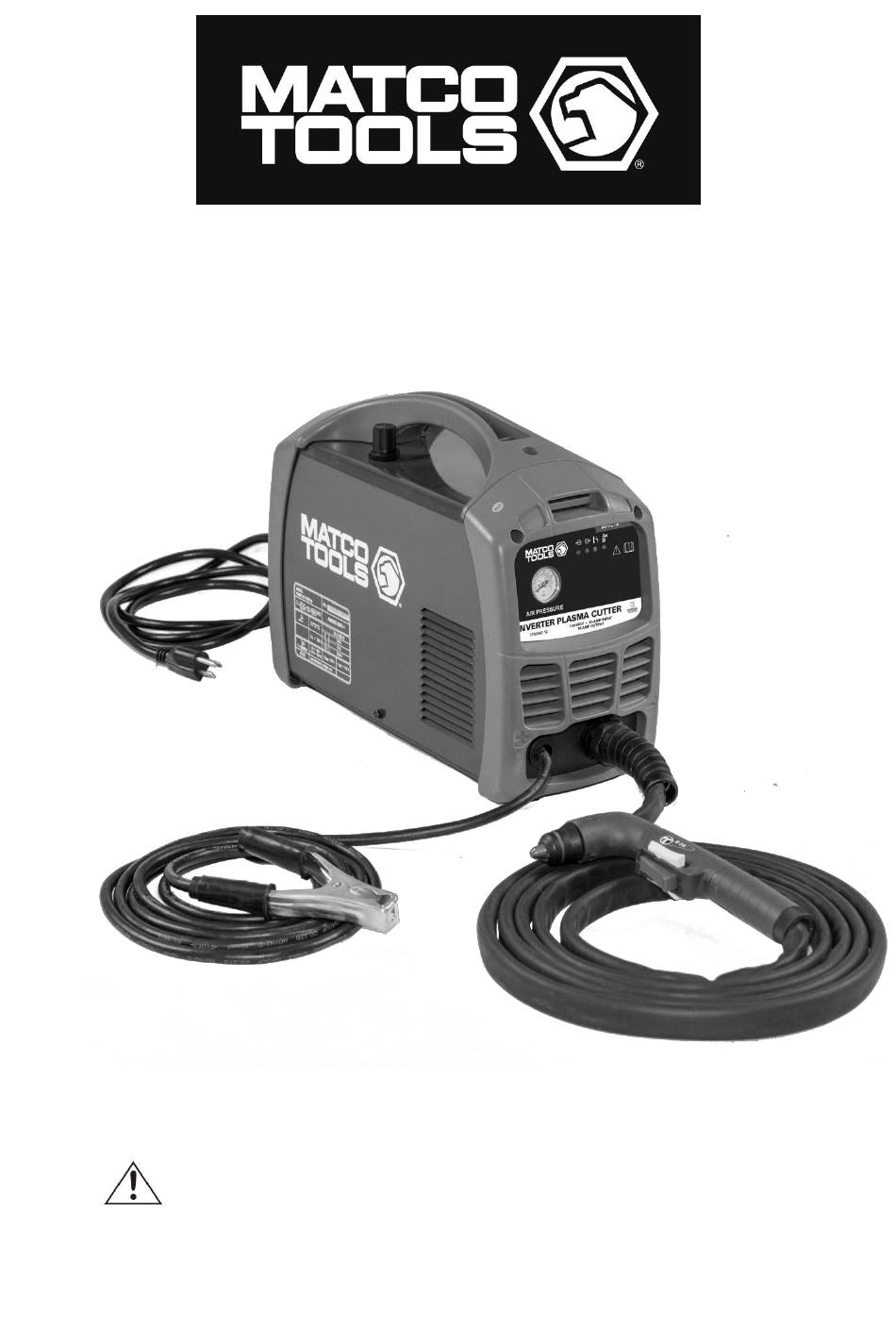

- Page 1 MPPC15I OWNER’S MANUAL 4/2017 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. 1703082-12...
- Page 2 Limited to the warranty periods below, MATCO TOOLS will repair or replace the item under warranty that fails due to defects in material and workmanship. MATCO TOOLS must be notified within 30 days of the failure, so as to provide instructions on how to proceed with the repair of your welder and warranty claim processing.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this plasma cutter until they have read this manual and have developed a thorough understanding of how this plasma cutter works. - Page 4 - Do not allow any body part to come in contact with the material being cut, or to the ground or electrode from another plasma cutter or welder. - Do not cut if you are in an awkward position. Always have a secure stance while cutting to prevent accidents.
- Page 5 UV and IR Arc Rays The plasma cutting arc produces ultraviolet (UV) and infrared (IR) rays that can cause injury to your eyes and skin. Do not look at the plasma cutting arc without proper eye protection. - Always use safety glasses, a shield or a helmet that meets ANSI Z49.1 standards for plasma cutting.
- Page 6 Replace or repair damaged or worn parts immediately. Store idle MPPC15I. When this unit is not in use, store it in a secure place out of the reach of children. Inspect it for good working condition prior to storage and before re-use.
-
Page 7: Technical Specifications
18 lb. DESCRIPTION The MPPC15I is an inverter powered 120V input, 16 amp output plasma cutter that cuts mild steel up to 1/8ʺ making it a great tool for your cutting needs. It cuts all electrically conductive materials. See chart below. It cuts with a narrow kerf that results in a smaller heat affected zone for reduced warping. - Page 8 AIR PRESSURE DISPLAY The built-in pressure display is used for reading the output air pressure when cutting. AIR PRESSURE ADJUSTOR It is used to adjust the air pressure. The air pressure can be read from the air pressure display on the front panel.
-
Page 9: Installation
INSTALLATION • High voltage danger from power source! Consult a qualified electrician for proper installation of receptacle. This cutter must be grounded while in use to protect the operator from electrical shock. • Do not remove grounding prong or alter the plug in any way. Do not use any adapters between the cutter’s power cord and the power source receptacle. -
Page 10: Operation
OPERATION High voltage danger from power source! Consult a qualified electrician for proper installation of receptacle at the power source. This cutter must be grounded while in use to protect the operator from electrical shock. If you are not sure if your outlet is properly grounded, have it checked by a qualified electrician. - Page 11 2.2. Metal Mesh Cutting - Fix the work piece and connect the earth cable with the work piece. - Put the cutting nozzle onto the work piece, lift torch up slightly from the work piece and turn on the switch to cut. 2.3.
-
Page 12: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Unit does not power up Unit is not plugged in Plug in unit Input power circuit breaker not on Reset input power circuit breaker Main power switch is defective Replace main power switch Control circuit board is defective Replace control circuit board No pilot arc Low air supply pressure... - Page 13 MAIN CIRCUIT CHART Page of 16 1703082-12...
-
Page 14: Diagram & Parts List
DIAGRAM & PARTS LIST Page of 16 1703082-12... - Page 15 CONTROL PCB 105400061 PRESSURE DISPLAY GAUGE 105400102 OUTPUT CONNECTION BOARD 105400170 FRONT PLASTIC BEZEL 105400171 FRONT PLATE 165400003 PLASTIC FACE PLATE MPPC15I 105200203 CABLE HOLDER 105400071 TORCH STRAIN RELIEF 105400063 GROUND CABLE AND CLAMP 105400043 GROUND CLAMP ONLY 105400108 PLASMA TORCH...
- Page 16 Distributed by Matco Tools 4403 Allen Road Stow OH 44224 w w w . m a t c o t o o l s . c o m Made in China to Matco specifications Page of 16 1703082-12...
