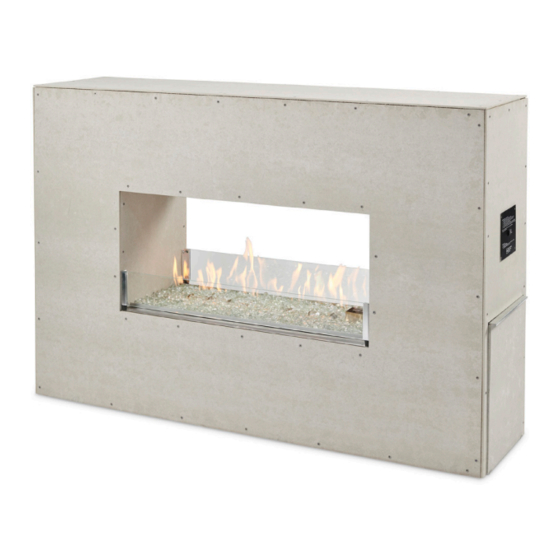

- Page 1 Ready to Finish Outdoor Fireplace Installation Instructions for All Ready to Finish See Through Outdoor Fireplaces (RSTL) outdoorrooms.com...
-
Page 2: Table Of Contents
IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE® PLUS BURNER WITHOUT CONSULTING THE CRYSTAL FIRE®... -
Page 3: About Your Fireplace
1. ABOUT YOUR FIREPLACE A. REQUIRED TOOLS • Utility Knife - To cut and remove packaging • 2 Open Ended Wrenches (1X 7/8” Wrench and 1X 3/4” Wrench)- To secure gas connections • Phillips Screw Driver (Do not use a drill to assemble)- For assembly and attachment of bottle opener B. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS WARNING Exposed edges may be sharp, use leather gloves when removing packaging and handling the base. A. UNPACKING • Do not discard any packaging until assembly is complete and unit is tested. • Keep all included manuals in a safe place for future reference. •... -
Page 5: Setting Up Your Burner
SETTING UP YOUR BURNER ATTENTION Read and understand your Crystal Fire® Plus owner’s manual before beginning burner hookups or using the device. DO NOT USE TEFLON TAPE OR PIPE DOPE ON FLARE FITTINGS. IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. -
Page 6: Electrical Installation
B. ELECTRICAL INSTALLATION • Feed electrical wiring up through smaller hole in base pan as shown in Image 3.2. Wire electrical into junction box. ELECTRICAL LOCATION Image 3.2 Cross section of fireplace. C. BURNER MAINTENANCE • Before doing any maintenance on burner or DSI box, it is recommended to place a protective barrier, such as a towel or cardboard, over stainless steel caps. -
Page 7: Self-Contained Propane Cylinder Installation
SELF-CONTAINED PROPANE CYLINDER INSTALLATION ATTENTION HAND TIGHTEN, DO NOT USE A WRENCH FOR THIS CONNECTION. • Remove access door from end of fireplace. • Using two wrenches, disconnect flex line and connect regulator hose. A separate adaptor can be purchased serperatly to allow propane regulator hose to attach to DSI. -
Page 8: Miscellaneous
4. MISCELLANEOUS A. FIRE MEDIA INSTALLATION WARNING DO NOT OPERATE CRYSTAL FIRE® PLUS BURNER WITHOUT GLASS BEADS OR OTHER APPROVED FIRE MEDIA. Media not included with fireplace, a seperate order is needed to obtain media. • Scatter glass beads, lava rock, or other approved fire media evenly across entire burner surface. -
Page 9: Finishing
C. FINISHING ATTENTION Care must be taken around stainless steel interior parts. Stainless steel can be easily scratched. Fireplace is designed to be custom finished. Interior frame studs can be located by screw location on front and back of fireplace. Reference the red “X’s”... -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS IMPORTANT Before operating your RSTL ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire® Plus manual for information on proper leak checking and other critical safety information. WARNING FIRE OR EXPLOSION HAZARD If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. -
Page 11: Warnings
6. WARNINGS IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE® PLUS BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE®... - Page 12 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. Warranty: Fire pit tables are covered under a 1 year manufacturer’s warranty. http://www.outdoorrooms.com/product-registration Please visit to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
