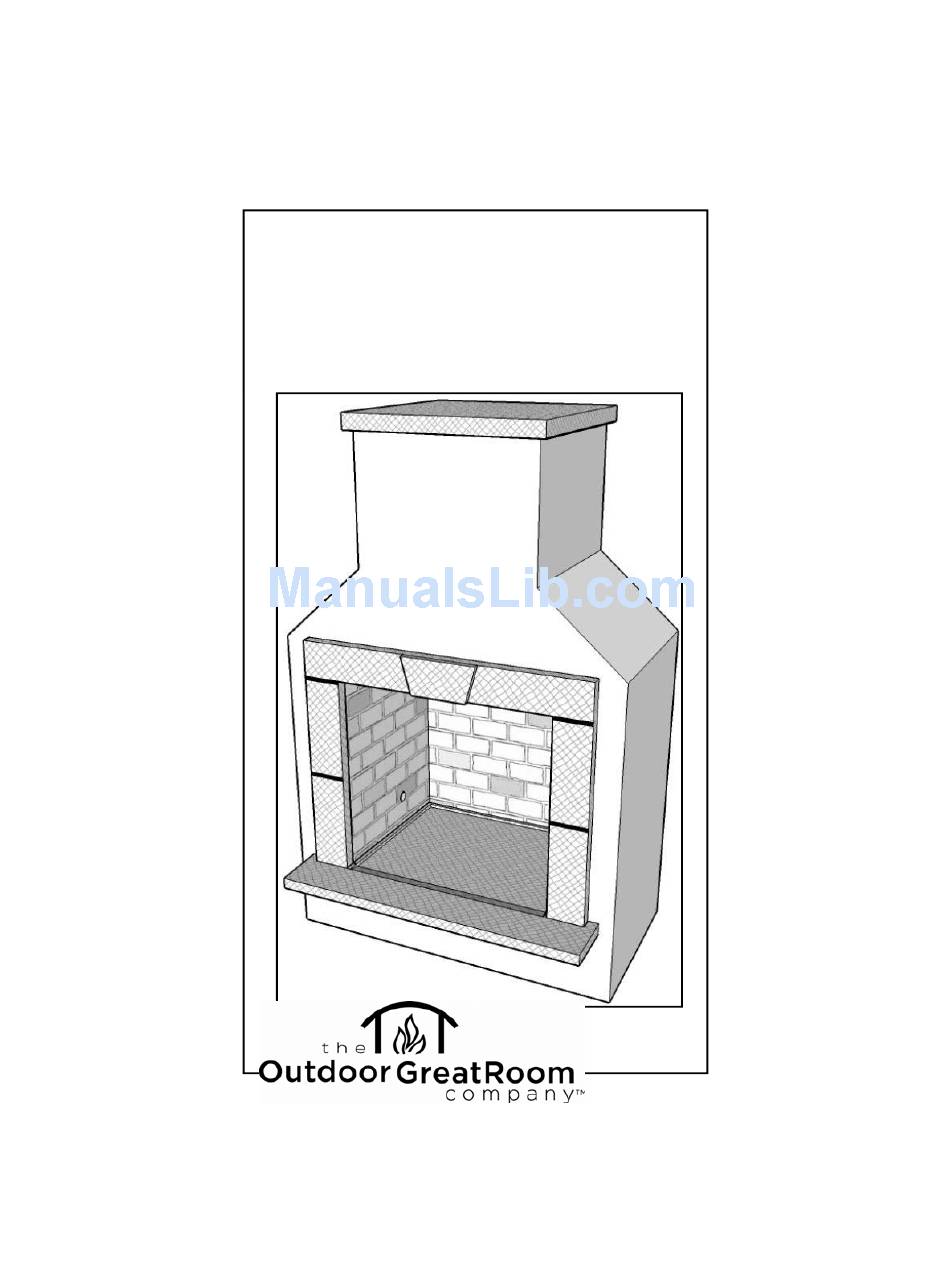

- Page 1 SAN JUAN FIREPLACE OWNER’S MANUAL INSTALLATION INSTRUCTIONS...
-
Page 2: Table Of Contents
Contents __________________________ Contents……………………………….…………2 Required Tools….……………………………….3 Unwrapping.……………………………………..4 Removal of Firebox & Top..……..…………..….5 Placing the Unit………………..………………6 Planning the Gas Line...………………..………..7 Locating LPG Tank.……………..……………..8 Anchoring…………..…………………………...9 Firebox Assembly……………...………………10 Installing the Hearth Pad.………………………11 Final Instructions / Dimensions…..…………….12... -
Page 3: Required Tools
To remove Packaging screws • Leather Gloves ⇒ To protect hands from rough and sharp • items found on the San Juan Fireplace. It is recommended that a minimum ⇒ of two people assemble and install the San Juan Fireplace. -
Page 4: Unwrapping
UNWRAPPING PROCEDURE WARNING THE CAST TOP AND HEARTH PAD OF THE SAN JUAN IS NOT AT- TACHED. DO NOT SLIDE OR MOVE THE UNIT UNTIL THESE ITEMS HAVE BEEN REMOVED. 1. Carefully dissect the outside wrapping to expose the unit. Maintain control of the blade the product behind can be damaged. -
Page 5: Removal Of Firebox & Top
REMOVAL OF THE FIREBOX & TOP 1. Remove all painted brown screws. 2. With a minimum of 2 people slide the fire- box carefully and set aside. BE CAREFUL NOT TO DROP THE UNIT DAMAGE WILL OCCUR. 3. Lift Top up and set aside. WARNING FIREBOX WEIGHT IS 175-195LBS. -
Page 6: Placing The Unit
PLACING THE UNIT FRAGILE 1. When moving the surround into place, care- ful not to damage the edges. 2. THIS SHOULD BE MOVED WITH NO LESS THAN TWO PEOPLE. 3. Set the unit at the final location. -
Page 7: Planning The Gas Line
PLANNING YOUR GAS LINE The gas inlet into the San Juan firebox is located in the back left corner. Plan your gas line accordingly. Gas Line Inlet The most convenient way to run your gas line is up through the bottom. The bottom is open and... -
Page 8: Locating Lpg Tank
LOCATING YOUR TANK 1. Your San Juan Fireplace is equipped for use with either Natural Gas or Propane Gas. Please confirm the type of gas you are installing. 2. If your unit is intended to work on Pro- pane Gas please adhere to all local and national codes. -
Page 9: Anchoring
ANCHORING YOUR SAN JUAN FIREPLACE (OPTIONAL) In most cases this step is not necessary. If your San Juan Fireplace is exposed to regular or periodic high winds (35-40MPH) you should consider anchoring the unit. Hardware is not provided for this step. -
Page 10: Firebox Assembly
FIREBOX ASSEMBLY 1. Slide the Firebox slowly and at an even rate until the back is flush with the vertical wall. 2. Re-attach the Firebox with the screws re- moved on Page 5, Step 1. 3. Place top as shown above. -
Page 11: Installing The Hearth Pad
HEARTH PAD INSTALLATION Have a qualified licensed professional make all the gas connections at this time before sliding the hearth pad into position. This should be done in accordance to all local and national codes. Slide the removable Hearth Pad into the Fire- box with care at an even rate. -
Page 12: Final Instructions / Dimensions
FINAL ASSEMBLY Install the gas burner and log set as directed in the installation manual provided in the Burner/ Log Set box. The Outdoor GreatRoom Company 12400 Portland Avenue South Burnsville, MN 55337 phone (952) 358-7438 | fax (952) 358-7414...
