Outdoor GreatRoom Company CF-20-LP Owner's Manual

Crystal fire collection decorative gas appliances
Hide thumbs Also See for CF-20-LP:

Advertisement

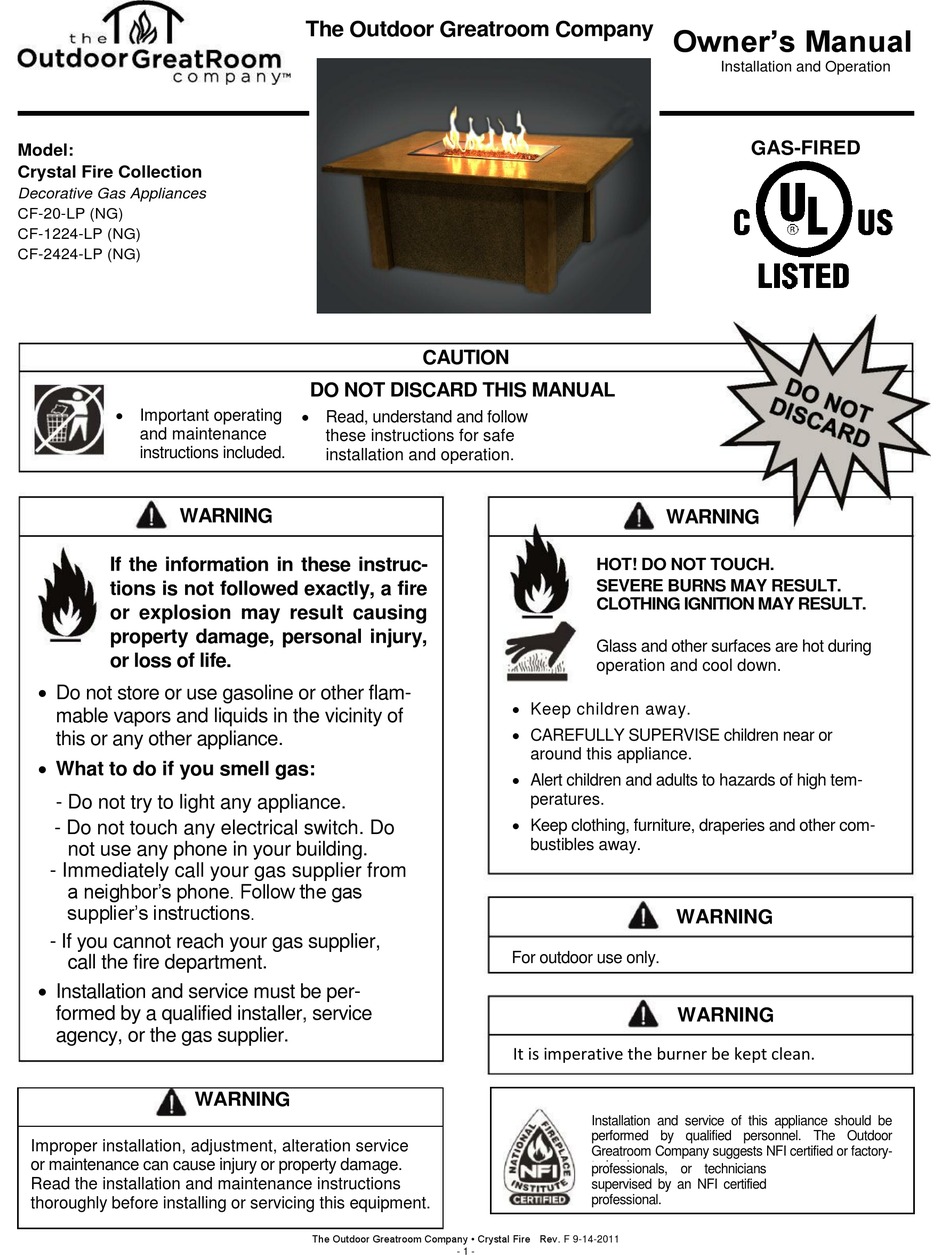

Model:
Crystal Fire Collection
Decorative Gas Appliances
CF-20-LP (NG)
CF-1224-LP (NG)
CF-2424-LP (NG)
 Important operating
and maintenance
instructions included.
WARNING
If the information in these instruc-
tions is not followed exactly, a fire
or explosion may result causing
property damage, personal injury,
or loss of life.
 Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
 What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do
not use any phone in your building.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
- If you cannot reach your gas supplier,
call the fire department.
 Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
WARNING
Improper installation, adjustment, alteration service
or maintenance can cause injury or property damage.
Read the installation and maintenance instructions
thoroughly before installing or servicing this equipment.
The Outdoor Greatroom Company
CAUTION
DO NOT DISCARD THIS MANUAL
 Read, understand and follow
these instructions for safe
installation and operation.
The Outdoor Greatroom Company • Crystal Fire Rev. F 9-14-2011
- 1 -
Owner's Manual
 Leave this manual
with party responsible
for use and operation.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot during
operation and cool down.
 Keep children away.
 CAREFULLY SUPERVISE children near or
around this appliance.
 Alert children and adults to hazards of high tem-
peratures.
 Keep clothing, furniture, draperies and other com-
bustibles away.
WARNING
WARNING
For outdoor use only.
WARNING
WARNING
It is imperative the burner be kept clean.
It is imperative the burner be kept clean.
Installation and service of this appliance should be
performed by qualified personnel. The Outdoor
Greatroom Company suggests NFI certified or factory-
trained
professionals, or technicians
supervised by an NFI certified
professional.
Installation and Operation
GAS-FIRED
LISTED
