Gallery Electric
Fireplaces
Homeowner's
Installation Instructions &
Operating Manual
Model: GE-50, GE-58, GE-70, GE-78 GE-94
FOR YOUR SAFETY
SERVICE MUST BE PERFORMED BY A QUALIFIED SERVICE AGENCY.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE.
DO NOT DISCARD THIS MANUAL
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Outdoor GreatRoom Company Gallery Electric GE-78
Summary of Contents for Outdoor GreatRoom Company Gallery Electric GE-78

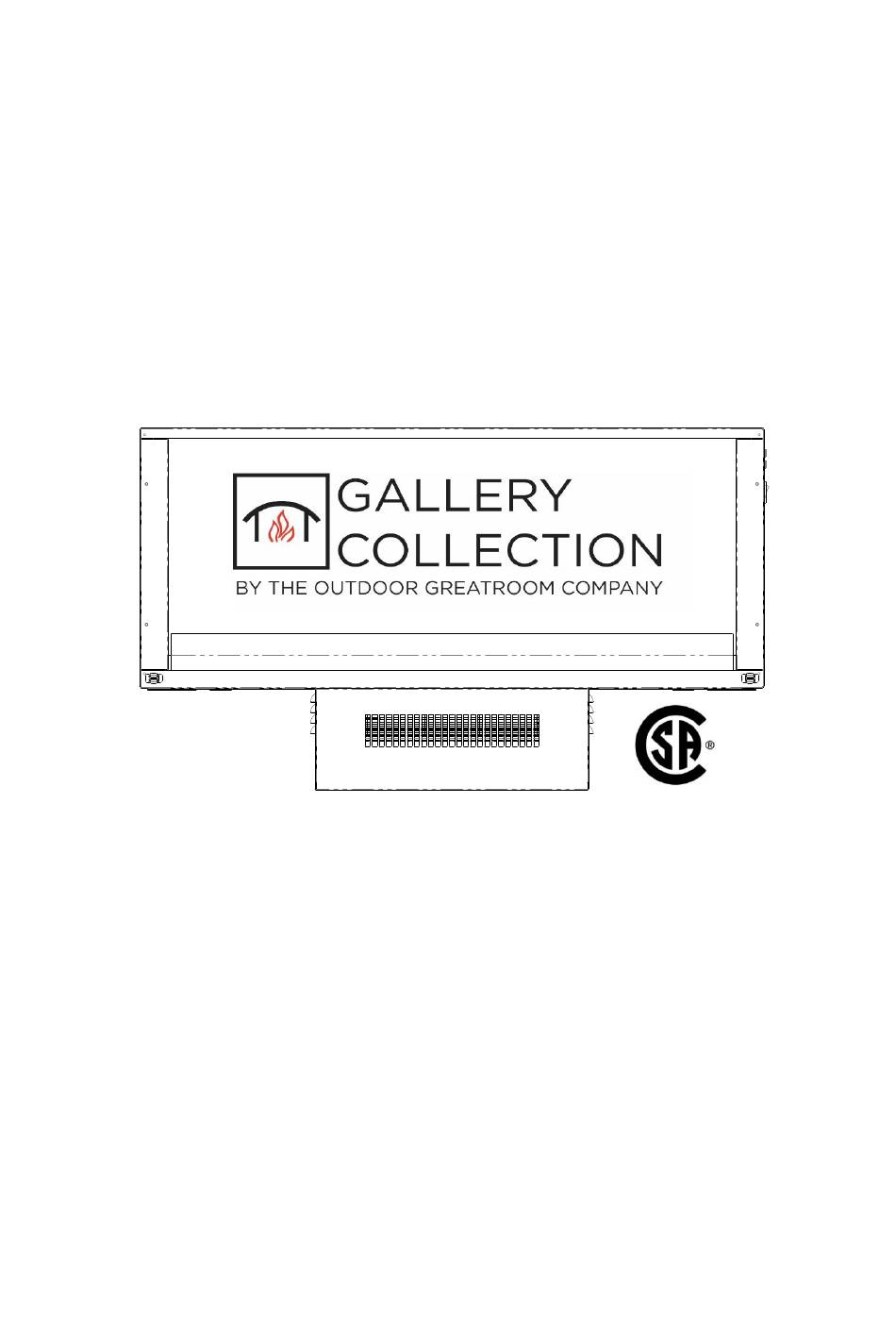

- Page 1 Gallery Electric Fireplaces Homeowner’s Installation Instructions & Operating Manual Model: GE-50, GE-58, GE-70, GE-78 GE-94 FOR YOUR SAFETY SERVICE MUST BE PERFORMED BY A QUALIFIED SERVICE AGENCY. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9m) from the front of this appliance. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS PACKAGE CONTENTS Additional Info Part Description Picture ARRIVES ATTACHED TO BACK OF Wall Mounting Bracket FIREPLACE Fire Box with Heater Fireplace Front Remote Control Battery Instruction Manual 6pcs for GE-50/58 Plastic Wall Anchor Plug 8pcs for GE-70/94 6pcs for GE-50/58 Screw ST5×40 8pcs for GE-70/94 Bolt M5×10... - Page 4 TOOLS REQUIRED Magnetic Phillips Screw Driver Electric drill or hammer drill (for concrete walls) UNPACKING THE ELECTRIC FIREPLACE WARNING! Do NOT use this Electric Fireplace if any part has been under water. Immediately call a qualified service technician to inspect and to replace any part of the electrical system if necessary. Keep plastic wrapping away from children.
- Page 5 Unit Dimensions: (All dimensions accurate to +/- 1/8” measure unit before setup for precise installations) GE-50 GE-58 90236 GE50-94 REV E 08.20.18...
- Page 6 GE-70 GE-78 GE-94 90236 GE50-94 REV E 08.20.18...
- Page 7 INSTALLING YOUR FIREPLACE Wall mounting bracket installation： Open the box and take out the fireplace. The wall mounting bracket is attached to the back side of the fireplace. Remove the screws holding it on at the bottom. Choose a solid plain wall and put the bracket in the position where you want to install the fireplace. Mark holes with a pen (6 for GE-50/58, 8 for GE-70/94) using the holes in the mounting bracket as a guide (Fig.
- Page 8 Hang the fireplace on the hooks at top and push the fireplace into the bracket and then insert the short M5×10 screws into the bottom support tabs. (Fig. 6) Arrange the white & clear faux stones along the inset window ledge at the front of the firebox. Install the fireplace front as pictured.
-
Page 9: Electrical Connection
ELECTRICAL CONNECTION A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. The unit comes standard with 6 feet (1.8 m) three-wire cord, exiting from the rear of the fireplace. Plan the installation to avoid the use of an extension cord. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. - Page 10 OPERATING INSTRUCTIONS: REMOTE CONTROL FUNCTIONS This appliance can be operated by both remote control and manual buttons located on the side of the fire box. Once the unit has been properly connected to a grounded electrical outlet, turn on the main power switch located on the right-hand side of the appliance.
-
Page 11: Warranty
By pressing the backlight button the unit will cycle through 12 Colors, BACK LIGHT a color-cycle mode, and OFF setting. WARRANTY In the unlikely event of a problem occurring due to a manufacturing fault within 24 months from the date of purchase of the appliance it will be repaired or replaced free of charge. - Page 12 during manufacture or non-use periods. This should only be noticeable for a brief period after turning on. Defective heater Heater may require replacement or repair Flame motor repair or replacement Flame effect frozen or stuttering Defective flame motor required. Turn off unit and unplug for 5 minutes. This Thermal switch tripped Heater not outputting heat when turned is a safety feature to prevent overheating...
