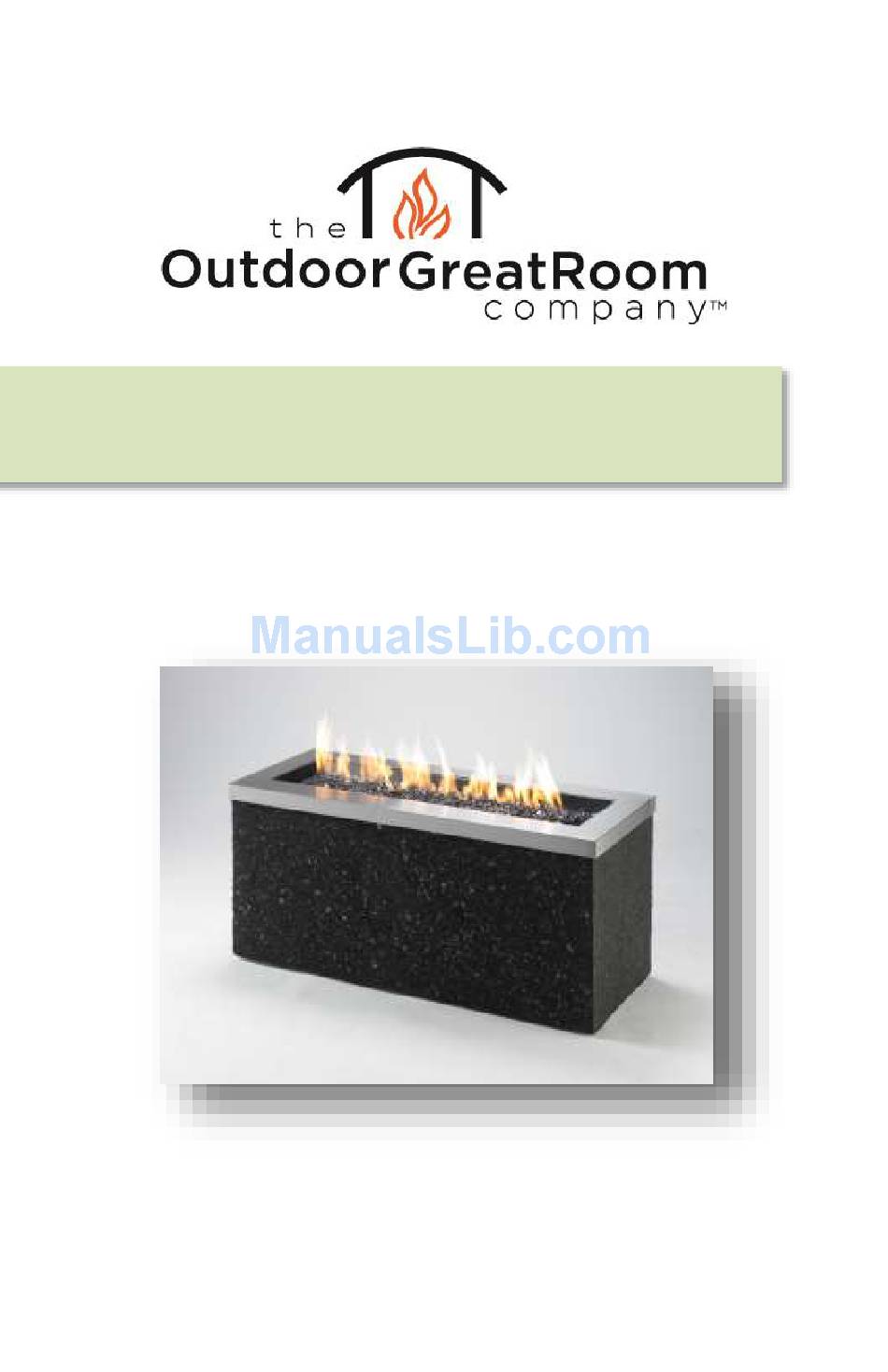

- Page 1 Key Largo Fire Pit Installation Instructions for Key largo with Stainless steel and SuperCast tops. P a g e...
-
Page 2: Table Of Contents
Contents Contents……………………………………………………..2 Required Tools…………………………………………..3 Placing and assembling the Table.……4 Gas Connection………………………….…………….5 Igniter Installation…………….………………………...6 Locating Propane tank……………………………8 Finishing Touches……………………………………….9 P a g e... -
Page 3: Required Tools
Required Tools Utility Knife To cut and remove packaging 2 Open Ended Wrenches To make gas connections Leather Gloves To protect hands from rough edges found on the coffee table. One (1) AAA Battery (not included) Required for piezoelectric igniter installation. -
Page 4: Placing And Assembling The Table
Placing and Assembling the Fire Pit table 1. Remove access door from packaging 2. Remove all components from packaging. 3. Move the base without door to desired location and set into place. 4. When locating your coffee table, refer to the Crystal Fire manual and maintain clearance to combustibles. -
Page 5: Gas Connection
Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. Gas Connection 1. Remove stainless steel top and lift burner out of base to expose control valve. 2. Connect the incoming gas hose to the valve and tighten securely. -
Page 6: Igniter Installation
Igniter Installation 1. Make sure the valve is in the OFF position 2. Unscrew sparker cap and hex nut. Install as shown below. P a g e... - Page 7 3. To properly install ignition system, a spark and ground wire need to be attached to the igniter box. Start by plugging the black wire hanging from the burner in to one side of the back of the igniter. ...
-
Page 8: Locating Propane Tank
Locating your Tank 1. Your tank should be positioned so that the fuel can be shut off after each use. 2. Slide the tank into the framework past the line shown below. This is to allow the door to close completely. 3. -
Page 9: Finishing Touches
Finishing touches Once fire pit is set up and in the desired position, scatter decorative glass on burner surface forming an even layer of beads. DO NOT BURN WITHOUT GLASS OR OTHER DECORATIVE SUBSTRATE PRESENT IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to hooking up your linear burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting... - Page 10 Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit http://www.outdoorrooms.com/warranty-form to register your product. 10 | P a g e...
- Page 11 11 | P a g e...
- Page 12 © 2014 The Outdoor GreatRoom Company 2015 Silver Bell Road • Suite 195 • Eagan, MN 55122 Toll Free: 1-866-303-4028 • Sales@OutdoorRooms.com 12 | P a g e...
