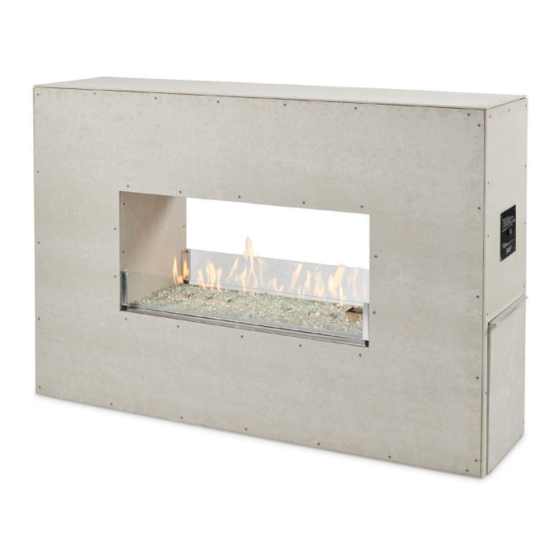

- Page 1 Ready to Finish Outdoor Fireplace Installation Instructions for All Ready to Finish See Through and Single-Sided Outdoor Fireplaces (RSTL & RLFP) outdoorrooms.com...
-
Page 2: Table Of Contents
IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE® PLUS BURNER WITHOUT CONSULTING THE CRYSTAL FIRE®... -
Page 3: About Your Fireplace
• 2 Open Ended Wrenches (1X 7/8” Wrench and 1X 3/4” Wrench)- To secure gas connections • Phillips Screw Driver (Do not use a drill to assemble)- For assembly B. INCLUDED WITH YOUR FIREPLACE RSTL RLFP Fully Assembled See-Through Fireplace Fully Assembled One-Sided Fireplace with CFP DSI Burner with CFP DSI Burner (See Crystal Fire®... -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS WARNING Exposed edges may be sharp, use leather gloves when removing packaging and handling the base. A. UNPACKING • Do not discard any packaging until assembly is complete and unit is tested. • Keep all included manuals in a safe place for future reference. •... -
Page 5: Setting Up Your Burner
SETTING UP YOUR BURNER ATTENTION Read and understand your Crystal Fire® Plus owner’s manual before beginning burner hookups or using the device. DO NOT USE TEFLON TAPE OR PIPE DOPE ON FLARE FITTINGS. IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. -
Page 6: Natural Gas Connections
B. NATURAL GAS CONNECTIONS See Crystal Fire® Plus instructions for burner installation. • All gas connections were completed at the factory. Performing a leak test on all connections is required. • It is recommended that this unit is installed as hard piped. •... -
Page 7: Electrical Installation
C. ELECTRICAL INSTALLATION • Feed electrical wiring up through smaller hole in base pan as shown in Image 3.2. Wire electrical into junction box. ELECTRICAL LOCATION Image 3.2 Cross section of fireplace. NOTE: Not required for VCSV equipped fireplaces. D. BURNER MAINTENANCE •... -
Page 8: Self-Contained Propane Cylinder Installation
Image 3.5 base pan. As shown in Image 3.5. NOTE: Self-contained propane cylinders can only be used with the RLFP-40 and RSTL-40 F. FINAL INSTALLATION STEPS • Once gas, electical connections are made, and a leak test is performed,replace access panel on front of fireplace. -
Page 9: Miscellaneous
Media not included with fireplace, a seperate order is needed to obtain media. • Scatter glass beads, lava rock, or other approved fire media evenly across entire burner surface. See Image 4.1 Recommended Media Amounts RLFP-40 30 LBS. RSTL-40 RLFP-60 40 LBS. RSTL-60 RLFP-72 50 LBS. RSTL-72 Image 4.1... -
Page 10: Finishing Free-Standing Installations
C. FINISHING FREE-STANDING INSTALLATIONS ATTENTION Care must be taken around stainless steel interior parts. Stainless steel can be easily scratched. Fireplace is designed to be custom finished. Interior frame studs can be located by screw location on front and back of fireplace. Reference the red “X’s”... -
Page 11: Finishing Built-In Installations
Standoff kits are available for purchase to assist in the framing process to ensure compliance with these clearance to combustible requirements. They are specific to the length and configuration of the fireplaces. Part Numbers: Filler Board Standoffs RSTL-40-SO-K Heat Shield RSTL-60-SO-K RSTL-72-SO-K RLFP-40-SO-K RLFP-60-SO-K RLFP-72-SO-K outdoorrooms.com... -
Page 12: Finishing (Mantels And Special Cases)
Areas should be tested for tempurature 1” before final installation of television. The Outdoor Greatroom Company accepts no liability for installations with televisions that do not meet the manufacturers maximum temperature requirements. -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS IMPORTANT Before operating your fireplace, ensure all gas connections are properly tightened and thoroughly leak checked. Refer to the Crystal Fire® Plus manual for information on proper leak checking and other critical safety information. WARNING FIRE OR EXPLOSION HAZARD If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. -
Page 14: Vcsv Systems
B. VCSV SYSTEM WARNING FIRE OR EXPLOSION HAZARD If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. Verify control valve is in OFF position. See Image 6.1. If operating on a self-contained propane cylinder, ensure cylinder valve is CLOSED. -
Page 15: Warnings
6. WARNINGS IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE® PLUS BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE®... - Page 16 Thank you for purchasing an Outdoor GreatRoom Company product! This outdoor fireplace was made with pride in the USA. Warranty: Outdoor fireplaces are covered under a 1 year manufacturer’s warranty. http://www.outdoorrooms.com/product-registration Please visit to register your product. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
