CAUTION: Never operate the pump without tool movement for more than 1 minute. Leaving the valve in the advance
or retract position without the tool's piston rod moving will overheat the oil.
CAUTION: Never disconnect or connect any hydraulic hoses or fittings without first unloading the tool, then unplug
the electrical cord of the pump. Open manual relief valve to assure that the system has been depressurized. View
the gauge reading and double check the gauge to assure pressure has been released.

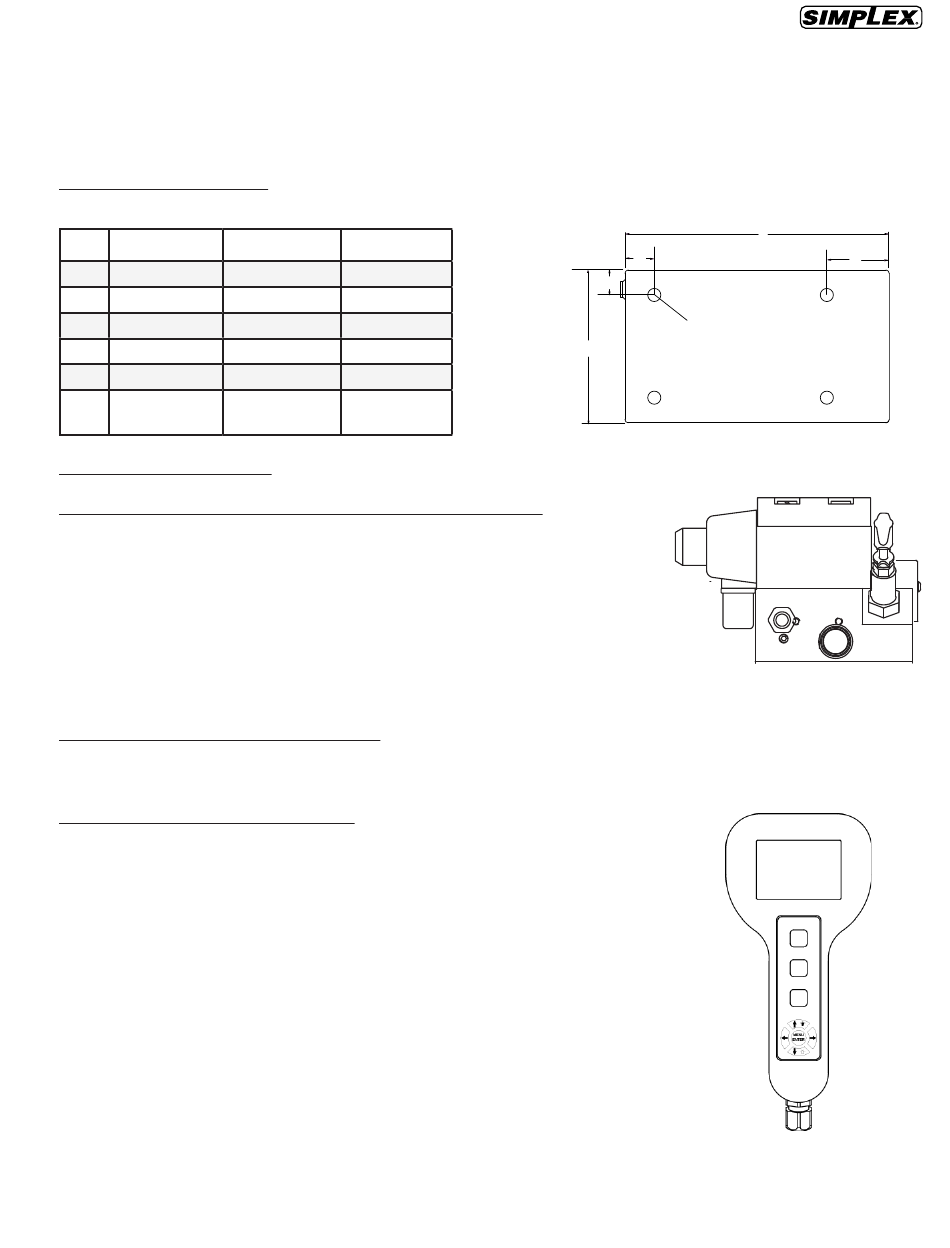

4.7 PUMP MOUNTING

Refer to the chart for mounting dimensions to secure the pump to a fixed surface.
1.5 gal.(6L)
A
15.13
B
1.68
C
3.57
D
1.43
E
8.75
F
1/4-20unc
(4 places)

5.0 CONTROL VALVES

2-Postion – 4 Way Solenoid Valve for Hydraulic Torque Wrenches.
To Advance......depress the Advance button.
•
To Retract.........release advance switch to Retract Tool.
•

5.1 POWER CONTROL SWITCHES

Remote pendant.
Configured with motor control pendant:
ADVANCE = Press and hold button to turn motor on.
Energizes ADV. Coil.
ON = Press button to turn motor on.
OFF = Press button to turn motor off.
NOTE: In the event multiple buttons are depressed for longer than 5 seconds,
the unit is programmed to shut down. To restart, you will need to depress the
motor "ON" to continue, or unplug / re-plug the unit into power supply, then
depress the motor "ON" to continue.
2.5 gal.(10L) 5 gal. (20L)
17 19.6
2.75 4.69
4.37 5.03
1.93 2.93
9.75 11.75
1/4-20unc 1/4-20unc
(4 places) (4 places)
••• 5 •••
D
E
A
B
F
2 Position - 4 Way Solenoid
Motor/Valve Control Pendant
