MAIN MENU -

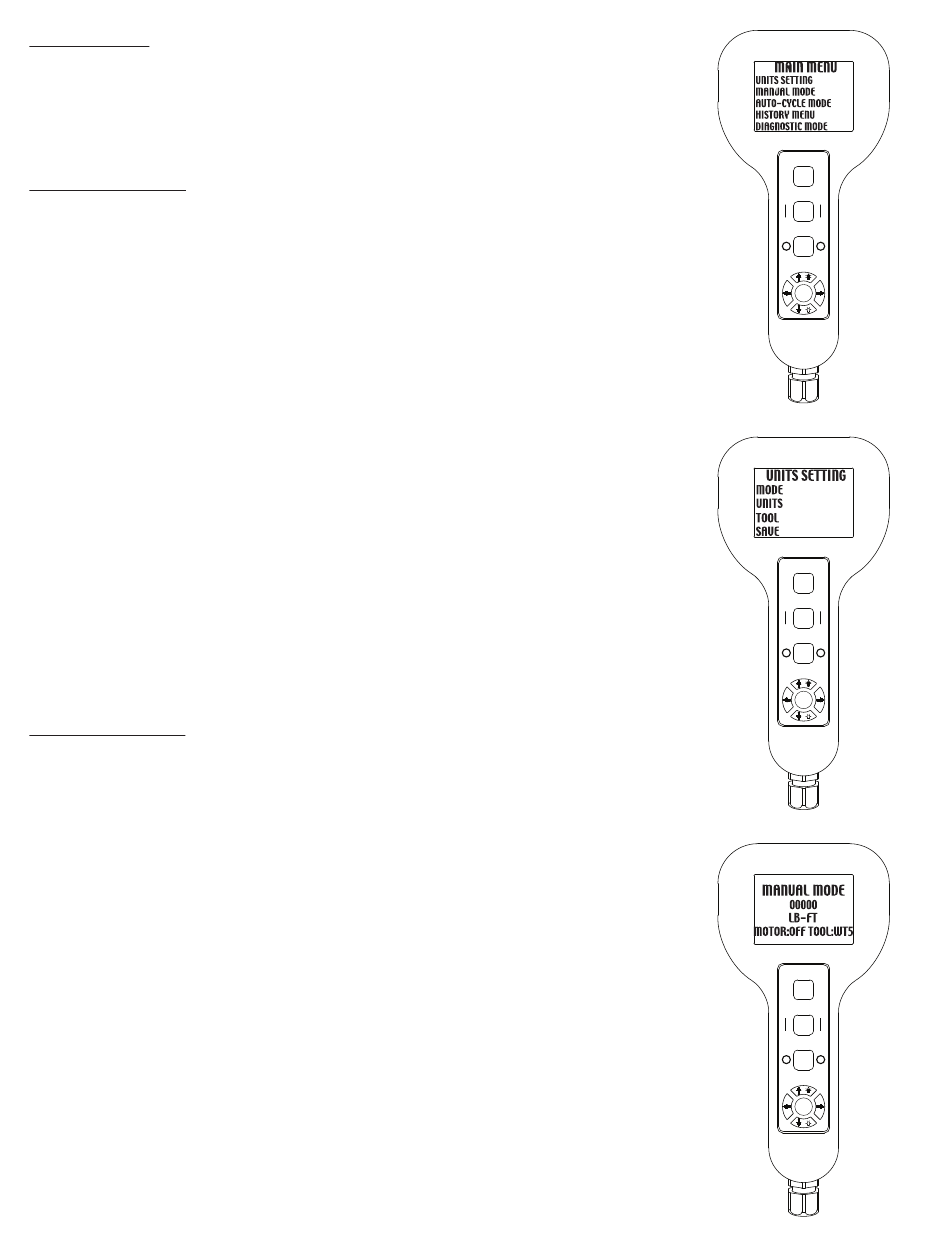

FIG. 3
To enter the "main menu", depress "MENU/ENTER" button. By pressing the "up" or
"down" arrow buttons, sub-menus can be highlighted. Once the preferred sub-menu is high-
lighted, press the "MENU/ENTER" button to go into that sub-menu mode.
To return to the "main menu" press the "left arrow button".

UNIT SETTINGS -

FIG. 4
• Highlight & press "enter" to select UNIT SETTINGS.
• MODE - PRESSURE or TORQUE is chosen by highlighting & pressing "enter" button.
To return to the "main menu" press the "left arrow button".
• UNITS - In PRESSURE mode, units (kg/cm
highlighting & pressing the "enter" button until desired form of measurement is displayed.
To return to the "main menu" press the "left arrow button".
• SAVE the data by pressing the "down" arrow button to "save" mode and press "enter".
To return to the "main menu" press the "left arrow button".
• UNITS - In TORQUE mode, "units" (lb-ft, NM, KPM,) are displayed by highlighting &
pressing the "enter" button until desired form of measurement is displayed.
To return to the "main menu" press the "left arrow button".
• SAVE the data by pressing the "down" arrow button to "save" mode and press "enter".
To return to the "main menu" press the "left arrow button".
• TOOL - Highlight & press "enter" and use the "arrow" buttons until the desired TOOL is
selected. If the TOOL being used is not a SIMPLEX TOOL, select "other". If no TOOL is be-
ing used, select "none".
To return to the "main menu" press the "left arrow button".
• SAVE the data by pressing the "down" arrow button to "save" mode and press "enter".
To return to the "main menu" press the "left arrow button".

MANUAL MODE -

FIG. 5
• Highlight & press "enter" to select MANUAL MODE.
• To operate pump, press the "ADVANCE" button to turn pump motor on and
❷
advance the tool.
To return to the "main menu" press the "menu/enter button".
, PSI, Bar and KPA) are displayed by
2
➍
••• 10 •••
❶
❶
❸
❶
FIG. 3
Power Control Center
ADVANCE
ON
❶
OFF
☞
MENU
❶
ENTER
❸
➎
FIG. 4
☞
❷
☞
❸
➎
☞
➍
☞
➎
Power Control Center
ADVANCE
ON
➎
OFF
☞
MENU
❶
ENTER
FIG. 5
Power Control Center
☞
❷
ADVANCE
ON
OFF
☞
MENU
❶
ENTER
