Assembly Instructions

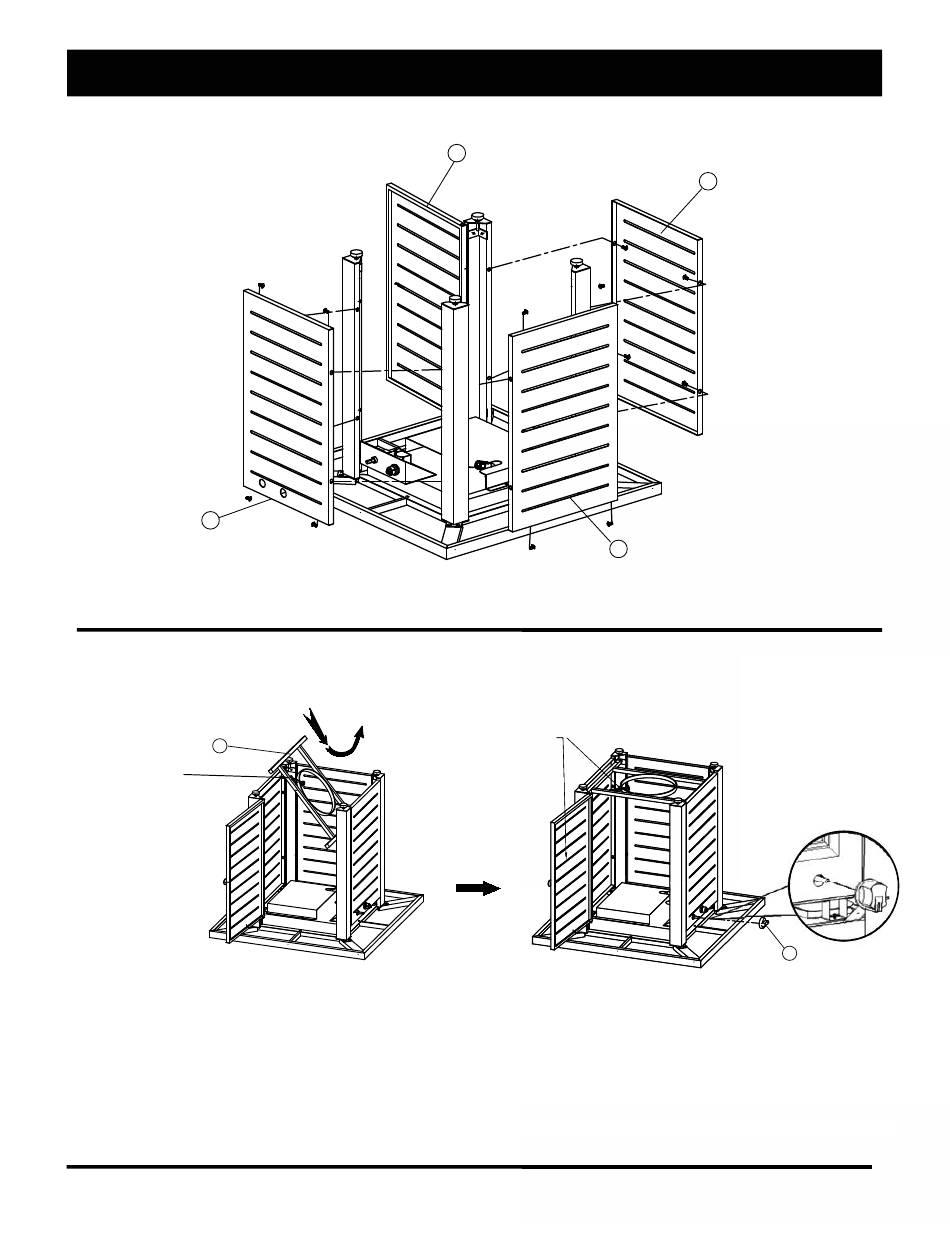

Step 3:
14
Attach side panel ( 7 ) 2 pcs and side panel with hole ( 14 ) with M6X12 (a) -12 pcs.
Step 4:
11
Note ：the base's direction
Attach base (11) by rotating to vertical position and lowering it into the center of the side panels.
Rotate base (11) to horizontal position and attach with M6x25 (b) screws – 4pc.
Attach the control knob (e). Please be mindful of the direction of the knob ( e ) when you install it.
Finally tighten all screws from step 1 to step 4 .
8
Note ：the base's direction
direction of the knob ( e ) when you install it.
Page 14 of 26
