Assembly

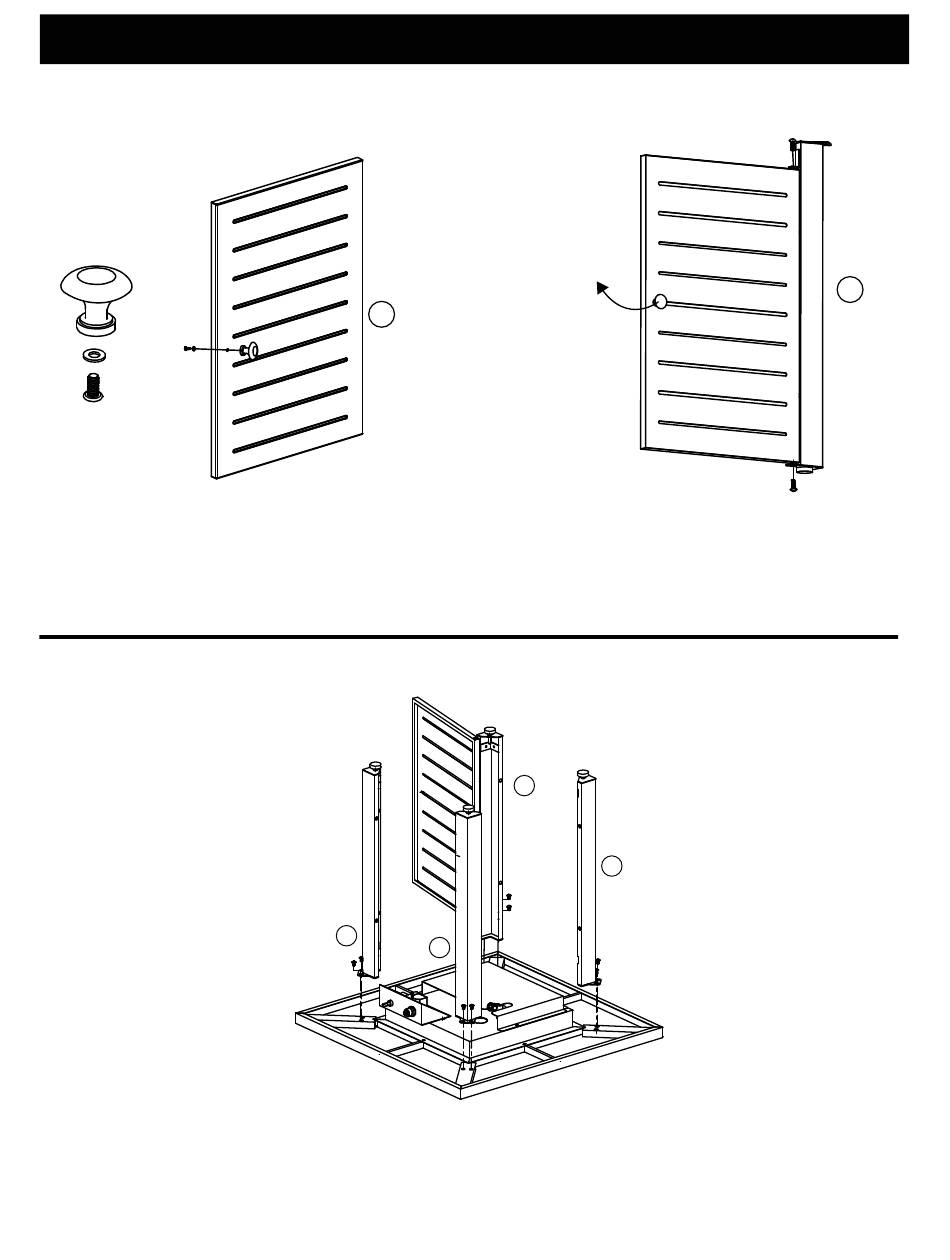

Step 1: Step 1:
Remove the screws and washer from the door handle (c). Attach the door handle (c) to
door panel (8), then tighten the handle.
Attach door panel (8) to leg (10)
Note： Do not tighten all screws as you will need adjust the holes to ensure proper alignment.
Step 2:
Attach leg ( 13 ) 2 pcs , leg ( 10 ) with door panel and leg ( 12 ) with M6 X 12 ( a ) - 8 pcs
Be mindful of the direction of the door panel ( 8 ).
8
using M6X25 (b) - 2PC
10
12
13
Page 13 of 26
door handle
13
10
